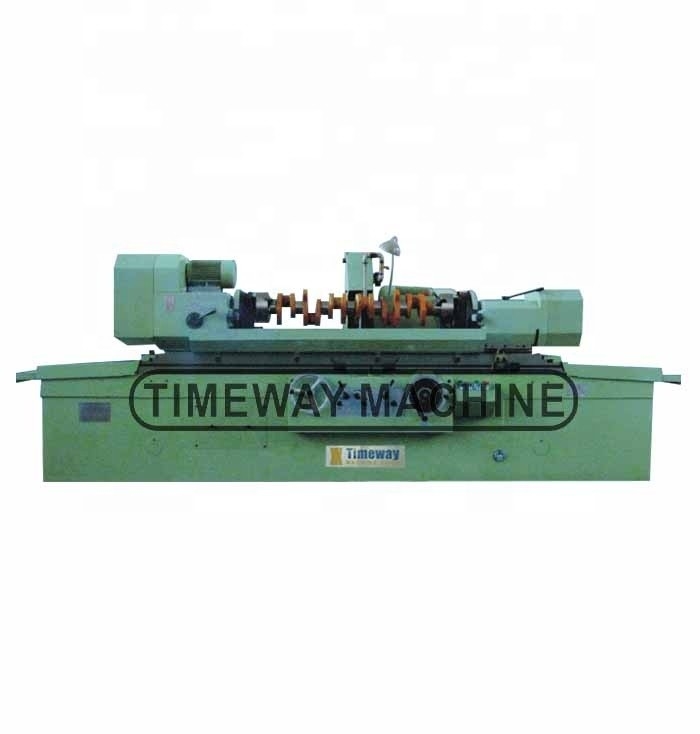

Crankshaft Grinding Machine MQ8240 for Universal Russia Engine in South Africa 2020
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380V |
| Dimension(L*W*H): | 4115x2050x1500mm | Weight (KG): | 5000 |
| Power (kW): | 7.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, South Africa, Russia, Chile |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Gear, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CRANKSHAFT: | GRINDING MACHINE |
| After Warranty Service: | Online Support | Local-Service Location: | Russia |
| Local Service Location: | South Africa | Product Name: | CRANKSHAFT GRINDING MACHINE |
| Name: | Crankshaft Grinder | Keywords: | GRINDING MACHINE |
| Color: | Customized Optional | Key Selling Point: | Competitive Price |
| Port: | China Port | ||
Product Description
Product Description
CRANKSHAFT GRINDING MACHINE
Feature：
1. The workpiece is clamped by centers or chucks, driven by the headstock motor, and manually operation.
2. Equipped with double cross-type chucks according to customers' need, adjusting eccentricity up to 120mm.
3. Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
4. Workhead and tailstock are driven by variable frequency motors and synchronous control.
5. Wheelhead spindle is supported by bimetal shell bearing which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
6. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed.
7. The base table slide way with TF material and been precision manual scraped.
2. Equipped with double cross-type chucks according to customers' need, adjusting eccentricity up to 120mm.
3. Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
4. Workhead and tailstock are driven by variable frequency motors and synchronous control.
5. Wheelhead spindle is supported by bimetal shell bearing which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
6. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed.
7. The base table slide way with TF material and been precision manual scraped.
Specification
Model | Unit | MQ8240 | MQ8260 | MQ8266 |
Max. swing diameter over bed | mm | 400 | 600 | 660 |
Max. length of workpiece (chucks) | mm | 830 | 1830 | 1830 |
Between centers | mm | 1000 | 2000 | 2000 |
Max. grinding diameter of crankshaft journal | mm | 130 | 130 | 130 |
Min. grinding diameter of crankshaft journal | mm | 30 | 30 | 30 |
Max. crankshaft crank radius | mm | 80 | 110 | 120 |
Max. workpiece weight | kg | 80 | 400 | 500 |
Grinding wheel diameter | mm | 750 | 900/700 | 900/700 |
Wheel peripheral speed | m/s | 35 | 35 | 35 |
Main motor power | kw | 7.5 | 15 | 15 |
Machine weight | kg | 5000 | 11900 | 11900 |
Machine dimensions (LxWxH) | mm | 4115x2050x1500 | 6000x2580x1750 | 6000x2580x1750 |
Roundness | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.008 | 0.008 |
Roughness (external/end) | um | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
