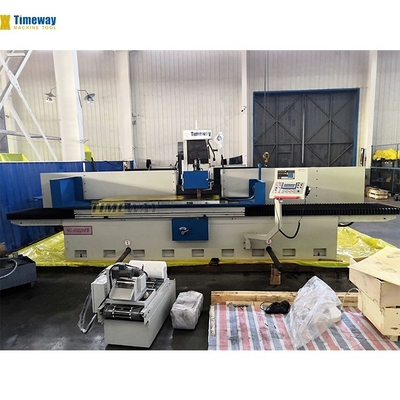

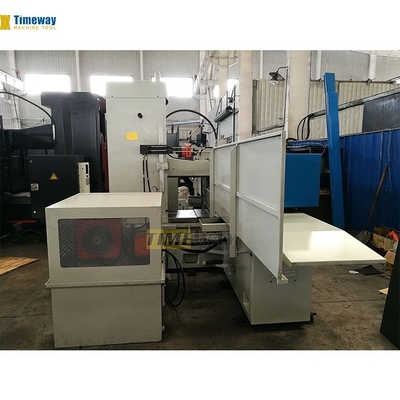

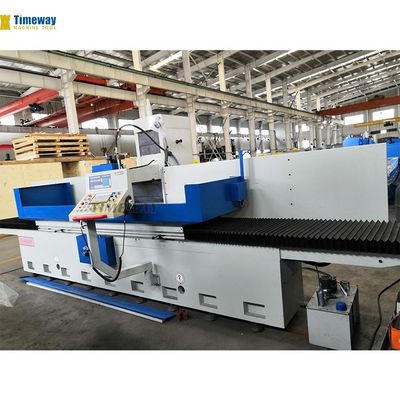

8000 kg Saddle Moving Type Surface Grinder with Auto. Intermittent Feed Rate 0-30 mm/t
Product Details:
| Place of Origin: | shanghai |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 600 | Wheel Size(mm): | 600 |
| Surface Roughness(μm): | 0.32 μm | Table Size(mm): | 630x2200 |
| Table Travel (X) (mm): | 630 | Table Travel (Y) (mm): | 2200 |
| Year: | New | Voltage: | 220v/380v |
| Weight (KG): | 8000 | Power (kW): | 11 |
| Warranty: | Unavailable | Key Selling Points: | Multifunctional |
| Showroom Location: | Germany, Romania, Egypt, Spain, South Korea, Russia, Italy, Peru, Bangladesh | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox, Pump, PLC |
| Applicable Industries: | Manufacturing Plant | Table Size(WxL): | 630x2200 Mm |
| Max. Grinding Size(WxL): | 600x2200 Mm | Table Longitudinal Feed Speed: | 5-25 M/min |
| Auto. Intermittent Feed Rat: | 0-30 Mm/t | Rapid Feed Speed: | 0-600 Mm /min |
| Feed Of MPG: | 0.005 | Auto. Feed Rate: | 0.005/0.01/0.02/0.03/0.04 Mm/t |
| Main Motor Power: | 7.5 Kw | Machine Weight: | 8000 Kg |
| Package Dimensions(LxWxH): | 6580x2300x2500 Mm | Port: | China Port |
Product Description
Products Description
* Solid block machine base construction with good rigidity and nice looking,width of bed guide way is 400mm.
* Surface of bed guide way,the part supporting main spindle and gears are dealed by chilling,and are milled and turned precisely,so the precision are well held.
* The X-axis and Y-axis bed guide ways are glued by "TSF" polyvinyl fluoride soft belts,and are smooth and enduring in low speed.
* The surfaces of bed guide ways and ball-screws use automatic lubrication system ,reliable and conveniednt.
* Driving motor subject to user's option,stepping motor and servo motor are availabe.
* Controling system subject to user's option completely.
* Surface of bed guide way,the part supporting main spindle and gears are dealed by chilling,and are milled and turned precisely,so the precision are well held.
* The X-axis and Y-axis bed guide ways are glued by "TSF" polyvinyl fluoride soft belts,and are smooth and enduring in low speed.
* The surfaces of bed guide ways and ball-screws use automatic lubrication system ,reliable and conveniednt.
* Driving motor subject to user's option,stepping motor and servo motor are availabe.
* Controling system subject to user's option completely.

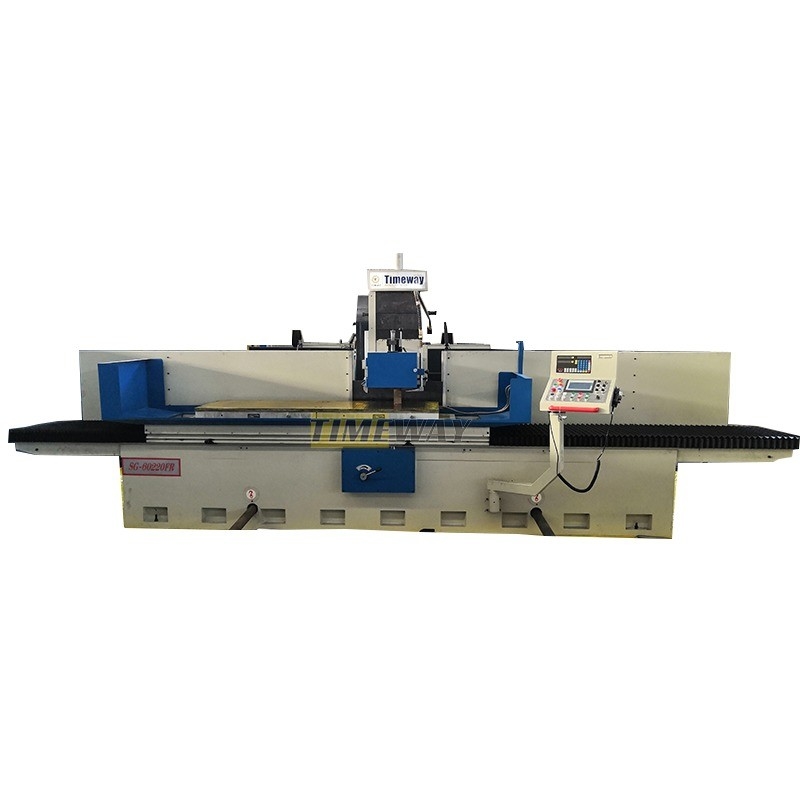

Specifications | Unit | SG-60220FR |
Table size(WxL) | mm | 630x2200 |
Max. grinding size(WxL) | mm | 600x2200 |
Max. distance from table to spindle center | mm | 600 |
Magnetic chuck size (pcs.) | mm | 600x1000x2 |
Table longitudinal feed speed | m/min | 5-25 |
Table cross motion | ||
Auto. intermittent feed rate | mm/t | 0-30 |
Rapid feed speed | mm/min | 0-600 |
Feed of MPG | mm/gra | 0.005 |
Auto. feed rate | mm/t | 0.005/0.01/0.02/0.03/0.04 |
Rapid feed speed | mm/min | 0-300 |
Feed of MPG | mm/gra | 0.005 |
Grinding wheel size | mm | Φ355x(20-50)xΦ127 |
Main motor power | kw | 11 |
Package dimensions(LxWxH) | mm | 6580x2300x2500 |
Machine weight | kg | 8000 |
PLC+SMART auto. grinding controller Coolant tank Work lamp Balancing arbor Wheel flange and extractor Wheel dresser stand Y/Z axis electrical wheel(MPG) Splashing guard, Standard grinding wheel Leveling wedge and bolts Tools & tool-box Operation manual (English edition) | Balancing stand Magnetic separator Paper filter Oil tank guard Electrical magnetic chuck Built-in magnetic chuck controller Parallel wheel dresser 2 axis digital readout Extra wheel flange |

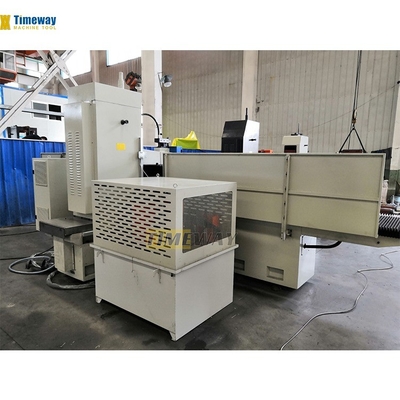

Well designed external hydraulic unit, with high
power oil pump and precision elec-magnetic
valve set, stand equipped with cooling fan. The whole system supply great smoothly power for fine ground.
power oil pump and precision elec-magnetic
valve set, stand equipped with cooling fan. The whole system supply great smoothly power for fine ground.
The guideway is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
