Professional Cylindrical Grinding Machine for External Grinding Diameters 8-200mm
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAWY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 800 | Max. Weight Of Workpiece(kg): | 50 |
| Center Height (mm): | 135 | Wheel Size(mm): | 400X50X203 |
| Wheel Speed (rpm): | 1600 | Year: | NEW |
| Voltage: | 220 V/380 V | Dimension(L*W*H): | 3000x1600x1500 |
| Weight (KG): | 3000 | Power (kW): | 5.625 |
| Key Selling Points: | High Precision | Warranty: | 1 Year |
| Showroom Location: | Canada, Tajikistan, Bangladesh | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, PLC | Condition: | New |
| CNC Or Not: | Normal | External Grinding Diameters: | 8-200 Mm |
| Internal Grinding Diameters: | 13-100 Mm | Center Height: | 135 Mm |
| Workhead Spindle Speed (stepless): | 25-380 Rpm | Max.travel Of Table: | 950 Mm |
| Table Hydraulic Feed Speeds: | 0.1-4 M/min | Max.workpiece Weight: | 50 Kg |
| Grinding Length External/internal: | 800/125 Mm | Swivel Range Of Grinding Wheel: | '-3~+7° |
| Internal Wheel Spindle Rotating-speed: | 16000 Rpm | Port: | China Port |
Product Description
Products Description

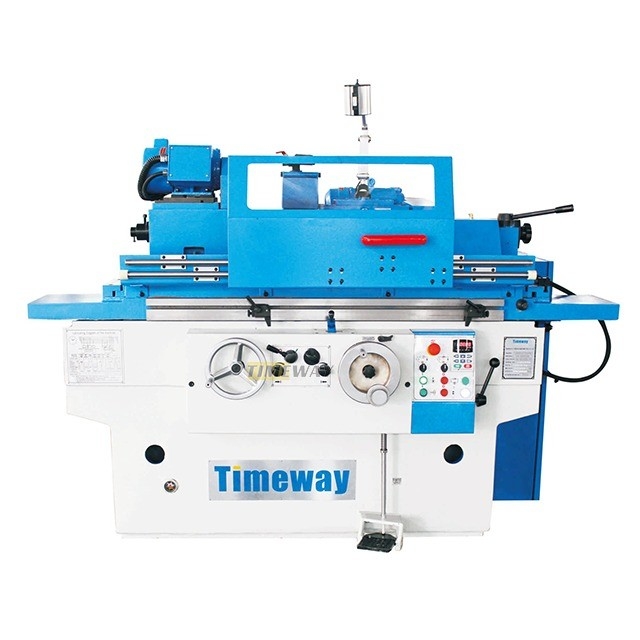

*G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200Hcomes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used inmachine construction, tool and mould shaping and in the production of small series.
Specifications | Unit | UG-200Hx500 | UG-200Hx800 |
External grinding diameters | mm | 8-200 | 8-200 |
Internal grinding diameters | mm | 13-100 | 13-100 |
Center height | mm | 135 | 135 |
Workhead spindle speed (stepless) | rpm | 25~380 | 25~380 |
Max.travel of table | mm | 650 | 950 |
Table hydraulic feed speeds | m/min | 0.1~4 | 0.1~4 |
Max.workpiece weight | kg | 50 | 50 |
Grinding length external/internal | mm | 500/125 | 800/125 |
Swivel range of grinding wheel | ° | -5~+9° | -3~+7° |
Max.peripheral speed of grinding wheel | m/s | 38 | 38 |
External wheel size | mm | Max: Ф400x50xФ203 Min: Ф280x50xФ203 | Max: Ф400x50xФ203 Min: Ф280x50xФ203 |
Internal wheel spindle rotating-speed | rpm | 16000 | 16000 |

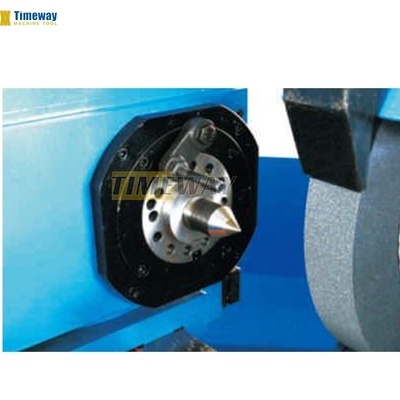

Workhead and tailstock center | - | MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Overall dimensions(LxWxH) | mm | 2500x1600x1500 | 3000x1600x1500 |
Weight of machine | kg | 2500 | 3000 |
Roundness (O.D/I.D) | um | 1.5/2.5 | 1.5/2.5 |
Surface roughness (O.D/I.D) | um | Ra0.32/Ra0.63 | Ra0.32/Ra0.63 |
Uniformity of dia.in longitudinal section (O.D/I.D) | um | 5/8 | 5/8 |
Grinding wheel Grinding wheel flange Three jaw chuck (UG) Driving dog Arbor for internal grinding (UG) Grinding wheel dresser, Wheel balancing arbor Open type steady rest Dead centers Frequency inverter Coolant system Work lamp Leveling wedge Operation manual (English edition) | Wheel balancing stand Radius dresser Close type center rest Digital readout Paper filter Magnetic separator |

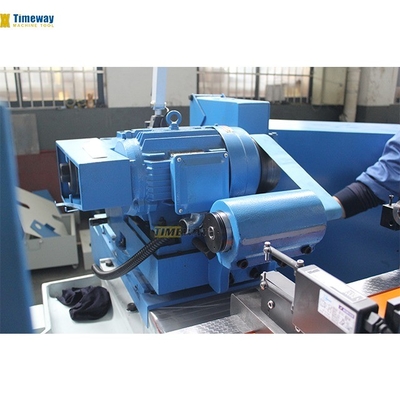

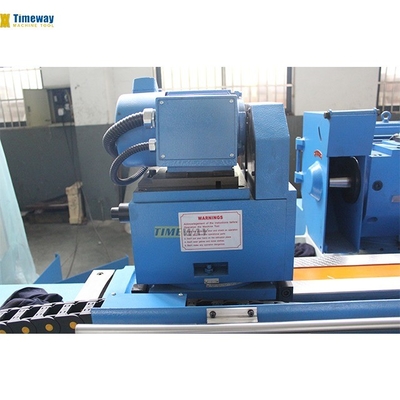

Grinding spindle with segmented high- precision bearings, adjustable and low maintenance. Grinding spindle adopts oil- bath lubration and coolant (N2 oil). Workhead spindle speeds are infinitely variable and driven frequency motor and
interver, can be easily adjusted and
optimized during the machining process.
interver, can be easily adjusted and
optimized during the machining process.
Headstock can swivel ±45° for grinding inside conical cylinder.
