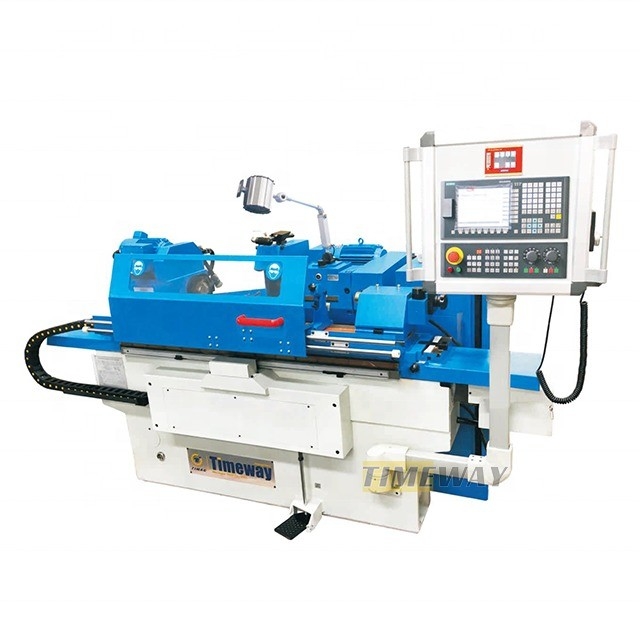

Precision Cylindrical Grinding Machine with 3000KG Weight and 500mm Max. Grinding Length
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 8 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 500 | Max. Weight Of Workpiece(kg): | 50 |
| Center Height (mm): | 135 | Wheel Size(mm): | 400x50x203 |
| Table Travel (X) (mm): | 500 | Roundness(mm): | 0.32 |
| Cylindricity (mm): | 1.5 | Year: | NEW |
| Voltage: | 220 V/380 V | Weight (KG): | 3000 |
| Power (kW): | 10.825 | Key Selling Points: | High Precision |
| Warranty: | 1 Year | Showroom Location: | Spain, Turkey, Nigeria, Sri Lanka |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, PLC |
| Condition: | New | CNC Or Not: | CNC |
| Dia. To Be Ground: | 8-200 Mm | Max. Length To Be Ground: | 500 Mm |
| Center Height: | 135 Mm | Distance Between Centers: | 550 Mm |
| Wheel Peripheral Speed: | 28 M/S | Tailstock Center: | MT4 |
| Max. Workpiece Weight To Be Ground: | 50 Kg | Wheel Size: | 400x50x203 |
| Roundness: | 1.5 Um | Unifomity Of Dia.in Longitudinal Section: | 5 Um |
| Port: | China Port | ||
Product Description
Products Description
* The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servomotor.
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servomotors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the differentworkpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinalgrinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servomotors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the differentworkpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinalgrinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically
Specifications | Unit | GK-200Hx500 | GK-200Hx800 |
Dia. to be ground | mm | 8~200 | 8~200 |
Max. length to be ground | mm | 500 | 800 |
Center height | mm | 135 | 135 |
Distance between centers | mm | 550 | 850 |
Headstock center | - | MT4 | MT4 |
Tailstock center | - | MT4 | MT4 |
Max. workpiece weight to be ground | kg | 50 | 50 |
Wheel size | mm | Ф400x50xФ203 | Ф400x50xФ203 |
Wheel peripheral speed | m/s | 38 (hydrodynamic-hydrostatic 45m/s) | 38 (hydrodynamic-hydrostatic 45m/s) |
Wheel spindle rotation speed | rpm | 2130 | 2130 |
Min. pulse amount in X-axis | mm | 0.001 | 0.001 |
Min. pulse amount in Z-axis | mm | 0.001 | 0.001 |
Total motor power | kw | 10.825 | 10.825 |
Longitudinal servo motor | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Transverse servo motor | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Roundness | um | 1.5 | 1.5 |
Surface roughness | um | Ra0.32 | Ra0.32 |
Unifomity of dia.in longitudinal section | um | 5 | 5 |
Grinding wheel Grinding wheel flangeThree jaw chuck (UG) Driving dog Arbor for internal grinding (UG) Grinding wheel dresser, Wheel balancing arbor Open type steady rest Dead centers Frequency inverter Coolant system Work lamp Leveling wedge Operation manual (English edition) | Wheel balancing stand Radius dresser Close type center rest Digital readout Paper filter Magnetic separator |

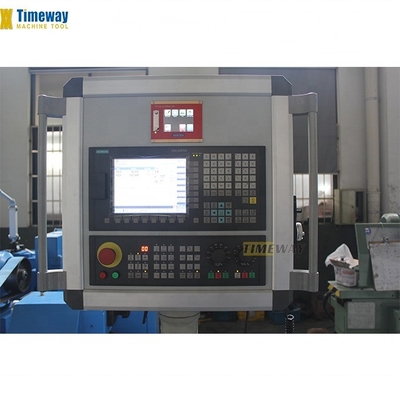

With the SIEMENS CNC system programming and human- machine interface, simple and easy, and equipped with other CNC systems and configured online automatic measuring instruments for customers' choice.
