Mesin Penggiling Silinder Cina 6-80 mm Kecepatan Spindle Headstock untuk Pasar Negara
Product Details:
| Place of Origin: | QINGDAO |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 250 | Grinding Diameter(Inner)(mm): | 0 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 6000 | Max. Weight Of Workpiece(kg): | 5000 |
| Center Height (mm): | 500 | Wheel Size(mm): | 900x75x305 |
| Cylindricity (mm): | 00025 | Surface Roughness(μm): | 0.32 |
| Year: | NEW | Voltage: | 220 V/380 V |
| Weight (KG): | 33000 | Power (kW): | 40 |
| Key Selling Points: | High Precision | Warranty: | 1 Year |
| Showroom Location: | Germany, Viet Nam, Canada, Turkey | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, PLC | Condition: | New |
| CNC Or Not: | Normal | Grinding Diameter (without Steady Rest): | 50-800 Mm |
| Max. Grinding Length: | 3000 Mm | Max. Weight Of Workpiece: | 5000 Kg |
| Center Height: | 500 Mm | Distance Between Centers: | 3100 Mm |
| Headstock Spindle Speed: | 6-80 Mm | Headstock Spindle Taper: | Metric100 |
| Total Power: | 40 Kw | Surface Roughness: | 0.32 |
| Net Weight: | 31000 Kg | Port: | China Port |
Product Description
Summary

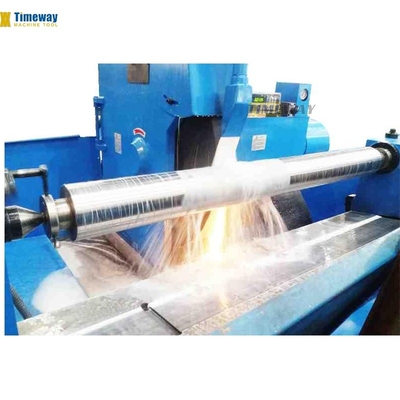

* The machine is mainly used to grind external cylindrical surface and conic surface of parts with small coning, the accuracy of ground parts can reach IT5, IT6, and grind end face of step parts with lower dimensional accuracy. * The machine is suitable for using in machinery manufacturing industry, printing machinery, heavy machinery, etc.
The machine adopts a dynamic-hydrostatic pressure spindle.
Products Description

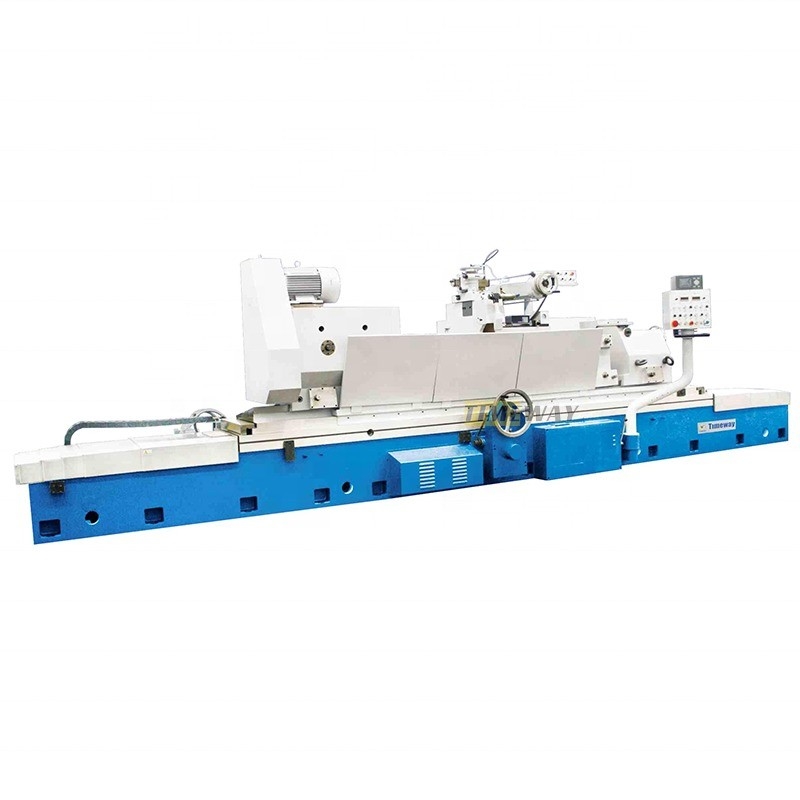

cylindrical grinder
Feature：
1.Longitudinal movement of the worktable is carried out by hydraulic stepless transmission or by handwheel.
2.Swiveling movement of workpiece is controlled by variable frequency motor together with frequency converter.

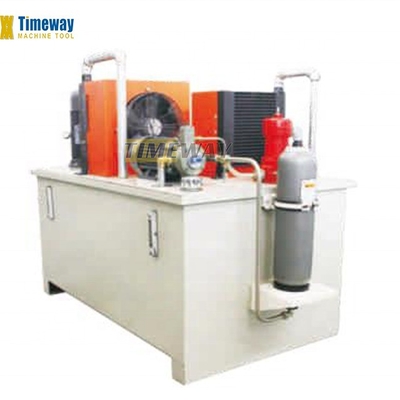

3.Fast advance or reverse of grinding wheel stand is driven by hydraulic system.
4.Grinding wheel is dressed through manual or automatic mode.
5.Cross feed is carried out by hydraulic device as well as hand operation device.
SPECIFICATION | UNIT | G-800E |
Grinding diameter (without steady rest) | mm | 50-800 |
Grinding diameter (with steady rest) | mm | 250-400 |
Max. grinding length | mm | 3000/4000/5000/6000 |
Max. weight of workpiece | kg | 5000 |
Center height | mm | 500 |
Distance between centers | mm | 3100/4100/5100/6100 |
Headstock spindle speed | rpm | 6-80 |
Grinding wheel size | mm | Φ900x75xΦ305 |
Main motor power | kw | 22 |
Total power | kw | 40 |
Roundness | mm | 0.0025 |
Flatness | mm | 0.008 |
Rounghness | um | Ra0.32 |
Net weight | kg | 31000/33000/35000/37000 |
Gross weight | kg | 33000/35000/38000/40000 |
Coolant tank Internal grinding head Wheel dresser Wheel with flange Wheel dismount tool Wheel balancing arbor Measuring plate Driving dog Parallel wedge Three-jaw chuck | Radius wheel dresser Wheel balancing stand Open-type steady rest Digital readout End dresser Close-type center rest |
.

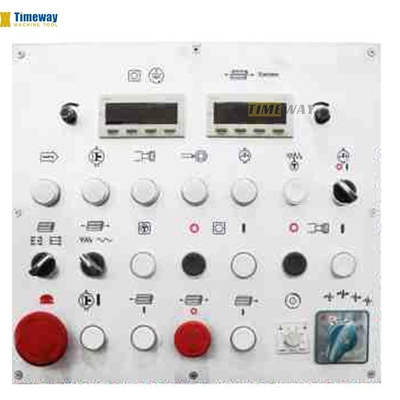

Central operation panel
