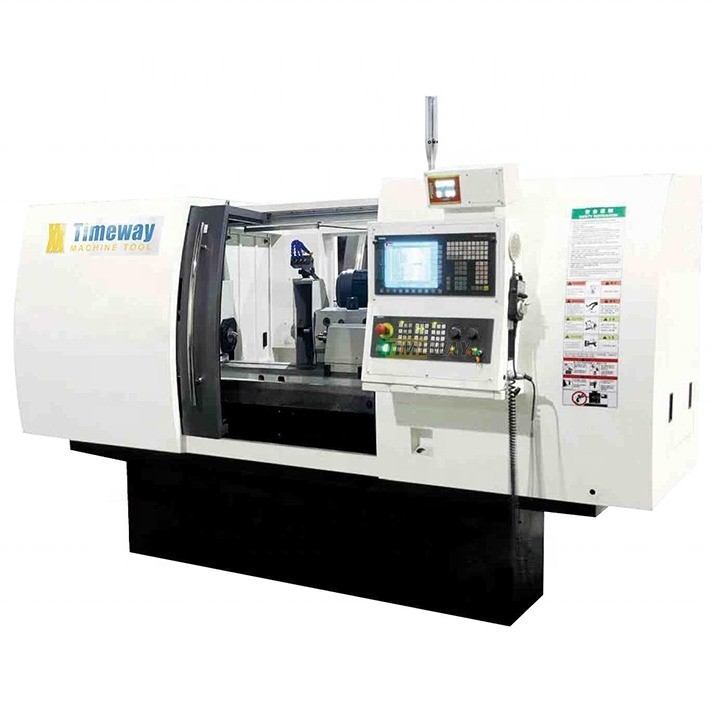

High Precision CNC Cylindrical Grinding Machine Min. Set Unit 0.0001 mm 500mm Distance
Product Details:
| Place of Origin: | QINGDAO |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 8 |
|---|---|---|---|
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400X50X203 | Wheel Speed (rpm): | 60 |
| Surface Roughness(μm): | 0.04 | Year: | NEW |
| Voltage: | 220 V/380 V | Dimension(L*W*H): | 340x240x220 |
| Weight (KG): | 5500 | Power (kW): | 1.1 |
| Key Selling Points: | High Precision | Warranty: | 1 Year |
| Showroom Location: | Kenya, Egypt, South Korea, Italy, Ukraine | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, PLC | Condition: | New |
| CNC Or Not: | CNC | Distance Between Centers: | 500 Mm |
| Center Height: | 135 Mm | Dia. Ground (O.D): | 8-200 Mm |
| Max. Weight Of Workpiece: | 50 Kg | Workhead Spindle Taper: | 60-600 R/min |
| Wheel Peripheral Velocity: | 35 M/s | Min. Set Unit: | 0.0001 Mm |
| Tailstock Quill Travel: | MT4 | Wheelhead Motor Power: | 5.5 Kw |
| Roundness: | 0.5 Um | ||
Product Description
Products Description

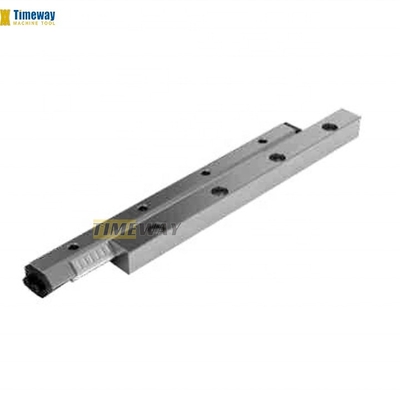

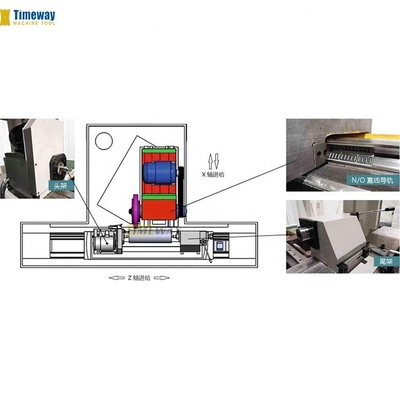

* The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep.

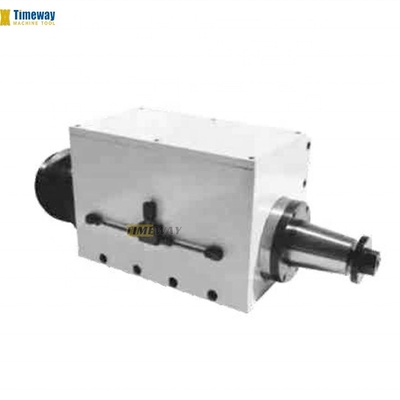

* The spindle of the grinding whel adopts large taper, four oil wedge, automatic adjustable hydro-dynamic pressure bearing, the workhead adopts hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong rigidity and high precision.

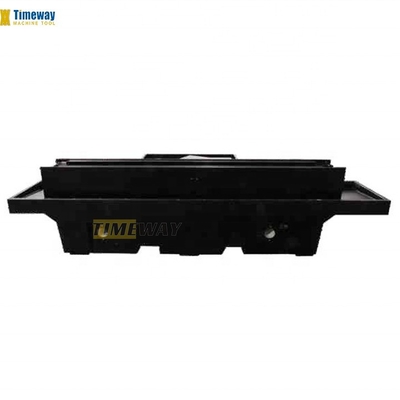

* The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.

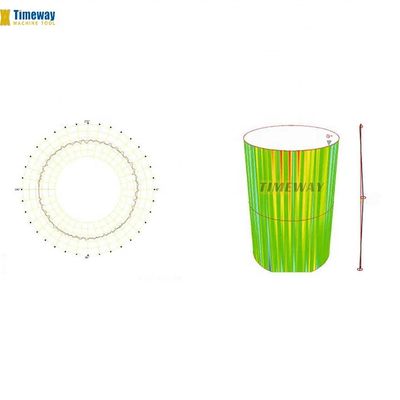

SPECIFICATION | UNIT | GK200-1 |
Distance between centers | mm | 500/750 |
Center height | mm | 135 |
Dia. ground (O.D) | mm | 8-200 |
Max. weight of workpiece | kg | 50 |
Workhead spindle taper | / | MT4 |
Workhead spindle speed (stepless) | r/min | 60-600 |
Max. dimension of wheel (O.DxWxI.D) | mm | 400x50x203 |
Wheel peripheral velocity | m/s | 35 |
Min. set unit | mm | 0.0001 |
Max. swiveling angle of table (Clockwise) | ° | 5° (500), 3° (750) |
Max. swiveling angle of table (Anticlockwise) | ° | 9° (500), 6° (750) |
Tailstock quill taper | / | MT4 |
Tailstock quill travel | mm | 30 |
CNC system | / | SIMENS 828D, FANUC 0i-TF |
Wheelhead motor power | kw | 5.5 |
Workhead motor power | kw | 1.1 |
Roundness | um | 0.5 |
Cylindricity | um | 2 (500), 3 (750) |
Roughness | um | Ra0.04 |
Gross weight | tons | 5.5/6 |
Packing size (LxWxH) | cm | 340/400x240x220 |
The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep.
The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.
