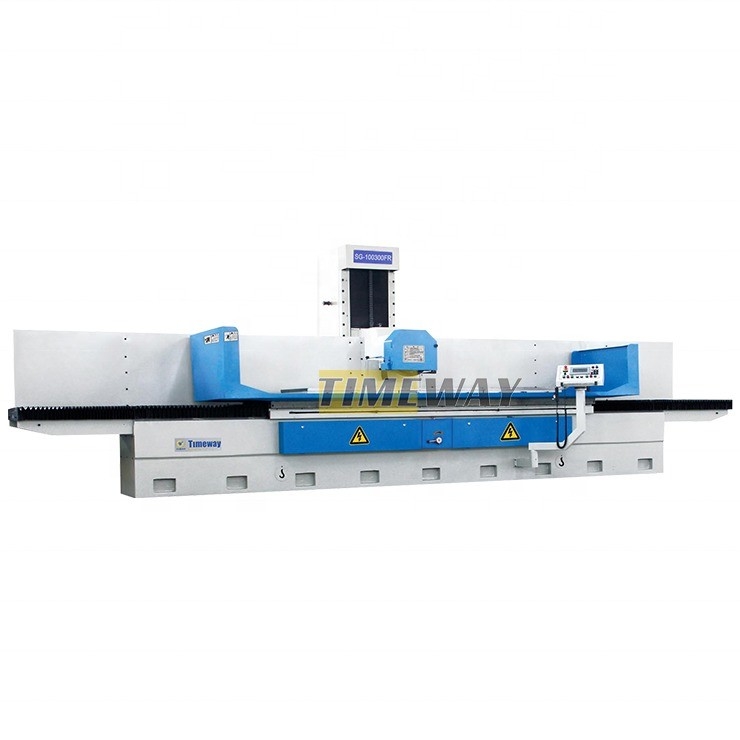

Surface Grinding Machine Column Moving Type Surface Grinder for Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,600.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 500x1000 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 3990x2250x2500 | Weight (KG): | 5500 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump | Applicable Industries: | Manufacturing Plant |
| Table Size: | 1000x4000 | Electro Magnetic Chuck Size: | 1000x4000 |
| Distance From Spindle To Table: | 670(830/1000) | Loading Capacity (include Chuck): | 5000 |
| Longitudinal Feed Speed: | 5-25 | Table Cross Intermittent Feed Rate: | 1-50 |
| Vertical Feed Rate (MPG): | 0.005 | Grinding Wheel Size: | 500x100x305 Mm |
| Main Motor Power: | 15 | Machine Weight: | 19500 |
| Port: | China Port | ||
Product Description
Products Description
---Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable
power for precision grinding.
---With auto. center lubrication unit.
---Very easy to set auto ground program include rough, finish, and spark-out stroke.
---The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
---The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
power for precision grinding.
---With auto. center lubrication unit.
---Very easy to set auto ground program include rough, finish, and spark-out stroke.
---The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
---The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
Specification | Unit | SG-100400FR | SG-120300FR | SG-120400FR |
Table size | mm | 1000x4000 | 1200x3000 | 1200x4000 |
Grinding area | mm | 1000x4000 | 1200x3000 | 1200x4000 |
Grinding height | mm | 670(830/1000) | 670(830/1000) | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 1000x1000x4 | 1200x1500x2 | 1200x2000x2 |
Loading capacity (include chuck) | kg | 5000 | 5000 | 5000 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Column cross intermittent feed rate | mm/str | 1-50 | 1-50 | 1-50 |
Column cross continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 | 960/1150 | 960/1150 |
Grinding wheel size | mm | 500x100x305 | 500x100x305 | 500x100x305 |
Main motor power | kw | 18.5/22 | 18.5/22 | 18.5/22 |
Hydraulic motor power | kw | 15 | 15 | 15 |
Y/Z-axis servo motor power | kw | 3 | 3 | 3 |
Total power | kw | 57 | 57 | 57 |
Machine dimensions (LxWxH) | mm | 10000x5200x2500 | 8700x5300x2600 | 10500x5300x2600 |
Machine weight | kg | 19500 | 18500 | 20500 |

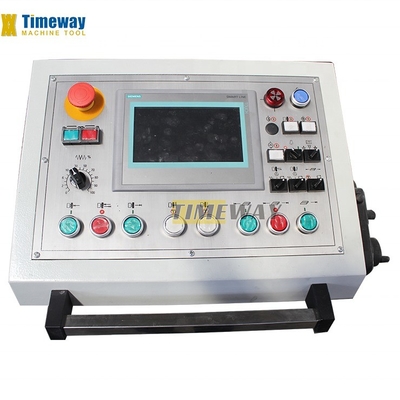

---PLC+SMART auto. grinding controller, ---Coolant tank, ---Work lamp, ---Balancing arbor, ---Wheel flange and extractor, ---Wheel dresser stand, ---Y/Z axis electrical wheel(MPG), ---Splashing guard, ---Standard grinding wheel, ---Leveling wedge and bolts, ---Tools & tool-box, ---Operation manual (English edition). | ---Balancing stand, ---Magnetic separator, ---Paper filter, ---Oil tank guard, ---Electrical magnetic chuck, ---Built-in magnetic chuck controller, ---Parallel wheel dresser, ---2 axis digital readout, ---Extra wheel flange. |
The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.
imported hydraulic valve unit,
realize smoothly motion without
shocking.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
