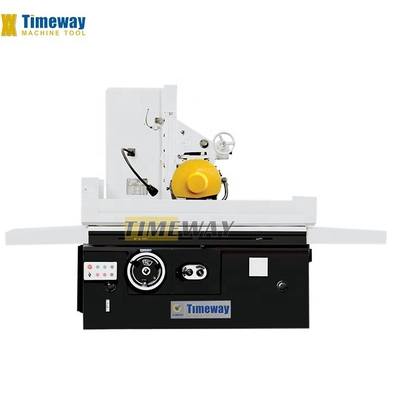

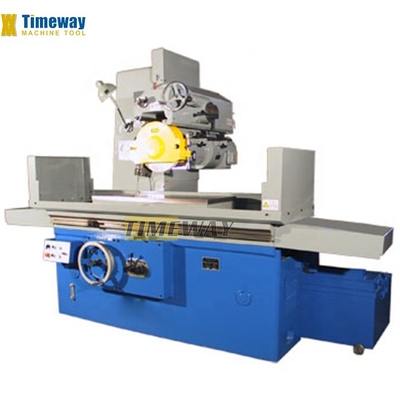

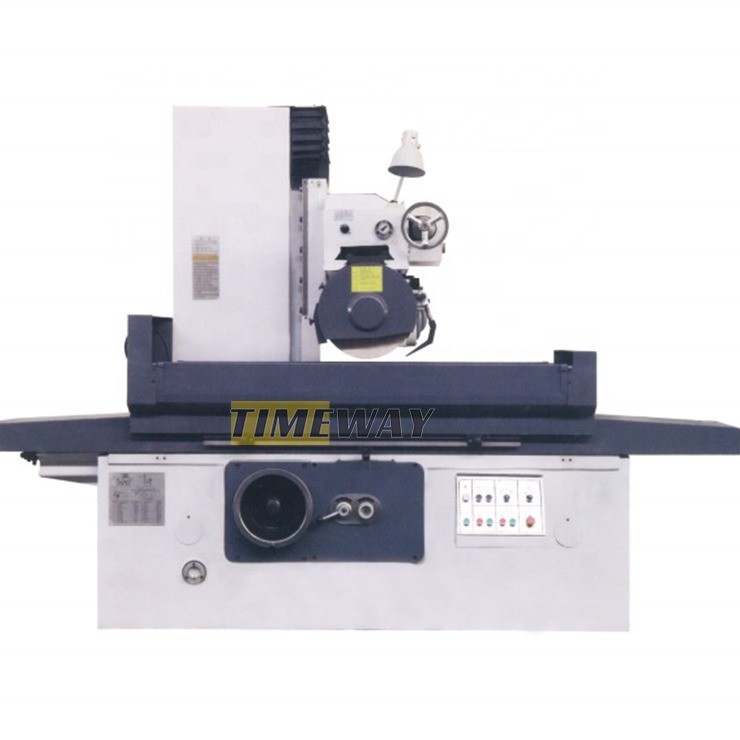

Top Performance Cantilever Moving Type Surface Grinder with 0.32 μm Surface Roughness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-9 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 400*1000 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 2950x2200x2330 | Weight (KG): | 8000 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump | Applicable Industries: | Manufacturing Plant |
| Table Width: | 400 | Table Length: | 1000/1600/2200 |
| Max. Grinding Width: | 1100/1700/2300 | Max. Grinding Length: | 400 |
| Max. Grinding Height: | 600 | Distance From Spindle To Table: | 3-27 |
| Longitudinal Feed Speed: | 3/18 | T-slot (No./width): | 0.5-4.5 |
| Cross Continuous Feed Speed: | 3-30 | Cross Intermittent Feed Rate: | 0.02 |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | GS-400A |
Table width | mm | 400 |
Table length | mm | 1000/1600/2200 |
Max. grinding width | mm | 400 |
Max. grinding length | mm | 1100/1700/2300 |
Max. grinding height | mm | 400 |
Distance from spindle to table | mm | 600 |
Longitudinal feed speed | m/min | 3-27 |
T-slot (No./width) | mm | 3/18 |
Cross continuous feed speed | m/min | 0.5-4.5 |
Cross intermittent feed rate | mm/str | 3-30 |
Cross feed of handwheel per gra. | mm/gra | 0.02 |
Vertical rapid feed speed | mm/min | 400 |
Vertical feed of handwheel per gra. | mm/gra | 0.01 |
Vertical feed of handwheel per rev. | mm/rev | 0.645 |
Main motor power | kw | 7.5 |
Spindle speed | rpm | 1440 |
Total power | kw | 11 |
Loading capacity (include chuck) | kg | 630/1000/1380 |
Grinding wheel size | mm | 400x40x127 |
Overall dimensions (LxWxH) | mm | 2880x1770x2030 4940x1820x2230 6740x1820x2230 |
Machine weight | kg | 4700/6600/8000 |
Package dimensions (LxWxH) | mm | 2950x2200x2330 5000x2200x2330 6800x2200x2330 |
---PLC+SMART auto. grinding controller, ---Coolant tank, ---Work lamp, ---Balancing arbor, ---Wheel flange and extractor, ---Wheel dresser stand, ---Y/Z axis electrical wheel(MPG), ---Splashing guard, ---Standard grinding wheel, ---Leveling wedge and bolts, ---Tools & tool-box, ---Operation manual (English edition). | ---Balancing stand, ---Magnetic separator, ---Paper filter, ---Oil tank guard, ---Electrical magnetic chuck, ---Built-in magnetic chuck controller, ---Parallel wheel dresser, ---2 axis digital readout, ---Extra wheel flange. |
The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.
imported hydraulic valve unit,
realize smoothly motion without
shocking.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
