Manufacturing Plant Gantry Type Surface Grinder for High Precision Grinding Solutions
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-19 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 3500 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 1250*1500/1200*3500 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 600x100x305 | Weight (KG): | 12000 |
| Power (kW): | 19.75 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump | Applicable Industries: | Manufacturing Plant |
| Grinding Length: | 3500 | X-axis Travel: | Other |
| Y-axis Travel: | Other | Type: | Surface Grinding Machine |
| Product Name: | Gantry Surface Grinder Machine | Name: | Grinder Machine |
| Keywords: | Gantry Surface Grinding Machine | Key Selling Points: | Competitive Price |
| Color: | Cutomized | Wheel Size: | 600x100x305 |
| Port: | China Port | ||
Product Description
Products Description

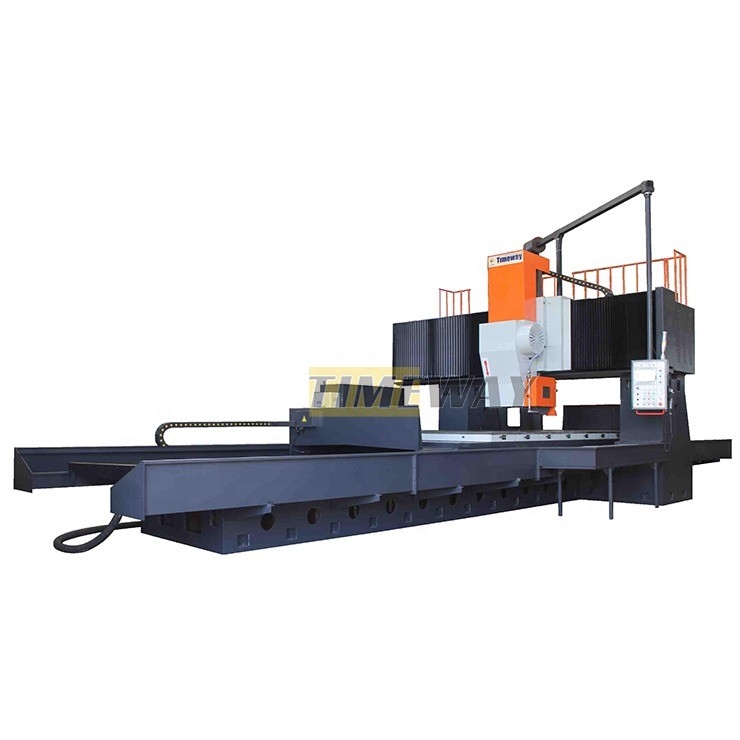

PLC Gantry Surface Grinding Machine
* The gantry surface grinder standard with a horizontal wheelhead, according to requirement, optional a vertical wheelhead. single saddle and double saddles, Double saddle can realize vertical grinding head and horizontal grinding head without interference grinding.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* The machine adopts the gantry type layout, which is composed of double column, beam and bed frame.
* Beam with 60° obliquebeam structure, mechanical performance is good, strong rigidity.
* The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance.
* The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise.
* Machine running reliable, cost-effective. Compact structure, small floor space and easy operation;
high raliability as a working machine.
high raliability as a working machine.
* High rigidity box casting structure and thermal symmetrical deformation structure.
* High rigidity, high precision hydro-dynamic and hydro-static spindle.
* Large feed amount, high efficency.
* Hydraulic system temperature rise is small, low energy consumption.
* Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
Specifications | Unit | DSG-1250A | DSG-1600A | DSG-2000A | DSG-2500A | ||
Table width | mm | 1250 | 1600 | 2000 | 2500 | ||
Table length | mm | 2000-4500 | 2500-8000 | 3500-16000 | 4500-16000 | ||
Max. grinding width | mm | 1400 | 2000 | 2400 | 3000 | ||
Max. grinding height | mm | 1000 | 1000 | 1200 | 1200 | ||
Gantry width | mm | 1600 | 2200 | 2600 | 3200 | ||
Horizontal spindle motor | kw | 22 | 22 | 30 | 30 | ||
Spindle speed | rpm | 1050 | 1050 | 1050 | 1050 | ||
Wheel size | mm | Φ600x100xΦ305 | Φ600x100xΦ305 | Φ600x150xΦ305 | Φ600x150xΦ305 | ||
Min. feed | mm | 0.005 | 0.005 | 0.005 | 0.005 | ||
Wheel size | mm | Φ500x100xΦ203 | Φ500x100xΦ203 | Φ600x100xΦ250 | Φ600x100xΦ250 | ||

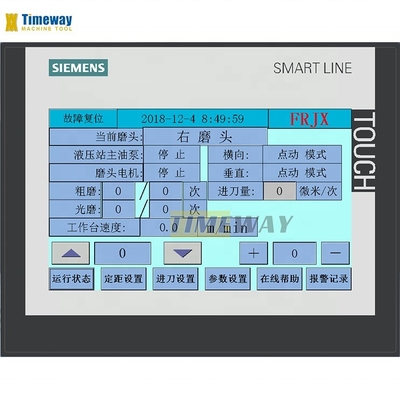

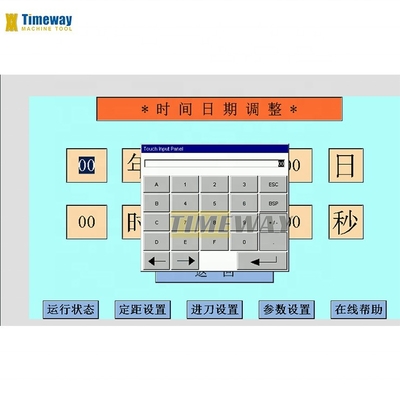

- LC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box - Operation manual(English edition) | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |

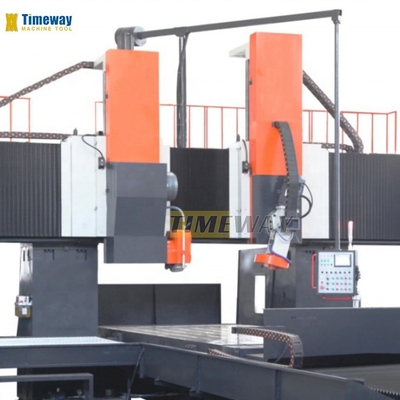

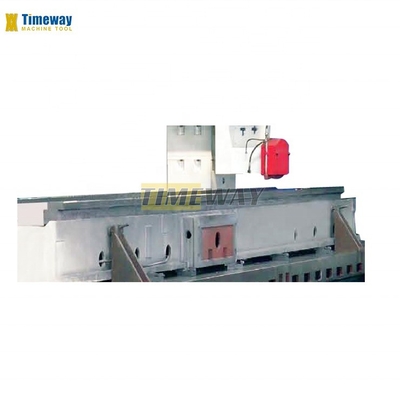

Machine details：
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
