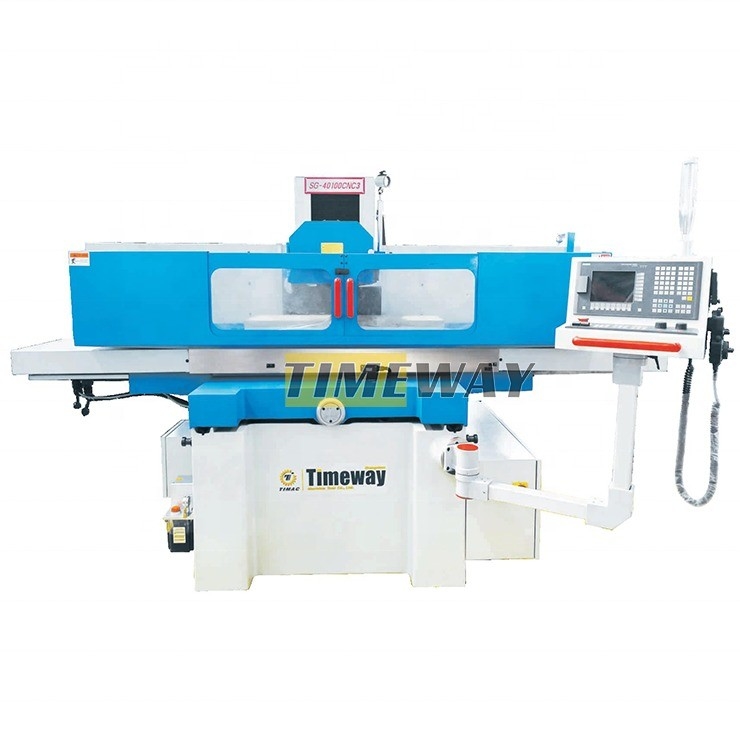

Saddle Moving Type Surface Grinder with Table Travel X of 1030mm and Y of 420mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-9 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 630 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 400*1000 | Table Travel (X) (mm): | 1030 |
| Table Travel (Y) (mm): | 420 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 2900*2020*2220 | Weight (KG): | 700 |
| Power (kW): | 1.1 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump | Applicable Industries: | Manufacturing Plant |
| Table Size: | 400*1000 | Table Travel(X/Y): | 1030*420 |
| Max. Grinding Area: | 1030*420 | Distance From Spindle Center To Table: | 480 |
| T-slots (wide/number): | 14x1 | Permanent Magnetic Chuck Size: | 1000*400 |
| Table Longitudinal Speed (stepless): | 7-16 | Cross Feed -Continuous: | 990 |
| Cross Feed -Intermittent: | 0.1-8 | Grinding Wheel Size: | 2900x2020x2220 |
| Port: | China Port | ||
Product Description
Products Description
* The machine is reasonable in structure, good ragidity, beautiful appearance, convenient operation. * Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous. * The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop. * Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed , according to user needs with a permanent magnet sucker or electromagnetic sucker.
Specification | Unit | KGS-40100AH KGS-40100AHR KGS-40100AHD |
Table size | mm | 400x1000 |
Table travel(X/Y) | mm | 1030x420 |
Max. grinding area | mm | 1030x420 |
Distance from spindle center to table | mm | 480 |
T-slots (wide/number) | mm | 14x1 |
Permanent magnetic chuck size | mm | 1000x400 |
Table longitudinal speed (stepless) | m/min | 7-16 |
Cross feed -Continuous | mm/min | 990 |
Cross feed -Intermittent | mm/time | 0.1-8 |
Cross feed handwheel-Revolution -Graduation | mm | 4/0.02 |
Vertical min. feed handwheel-Revolution -Graduation | mm | AH: 2/0.01; AHR: 2/0.01; AHD: 0.1/0.001; |
Grinding wheel size | mm | 300x30x75 |
Spindle speed | rpm | 1440 |
Main motor power | kw | 4 |
Cooling pump power | kw | 0.04 |
Hydraulic motor power | kw | 2.2 |
Cross feed motor power | kw | 0.04 |
Lifting motor power | kw | AH: -; AHR: 0.25; AHD: (servo) 0.75; |
Oil tank capacity | L | 80 |
Surface parallelism | mm | 0.005/300 |
Surface roughness | um | Ra0.32 |
Net weight | kg | 2200 |
Gross weight | kg | 2500 |
Packing size(LxWxH) | mm | 2900x2020x2220 |
Magnetic chuck | Parallel wheel dresser |
Balancing arbor | Digital readout |
Wheel flange | Wheel balancing stand |
Grinding wheel | Dust absorption |
Wheel extractor | Magnetic separator |
Wheel dresser stand | Paper filter |
Work lamp | Build in electro magnetic chuck controller |
Coolant tank | Inverter |
Tools & tool-box | |
Leveling wedges and bolts | |
Operation manual |
