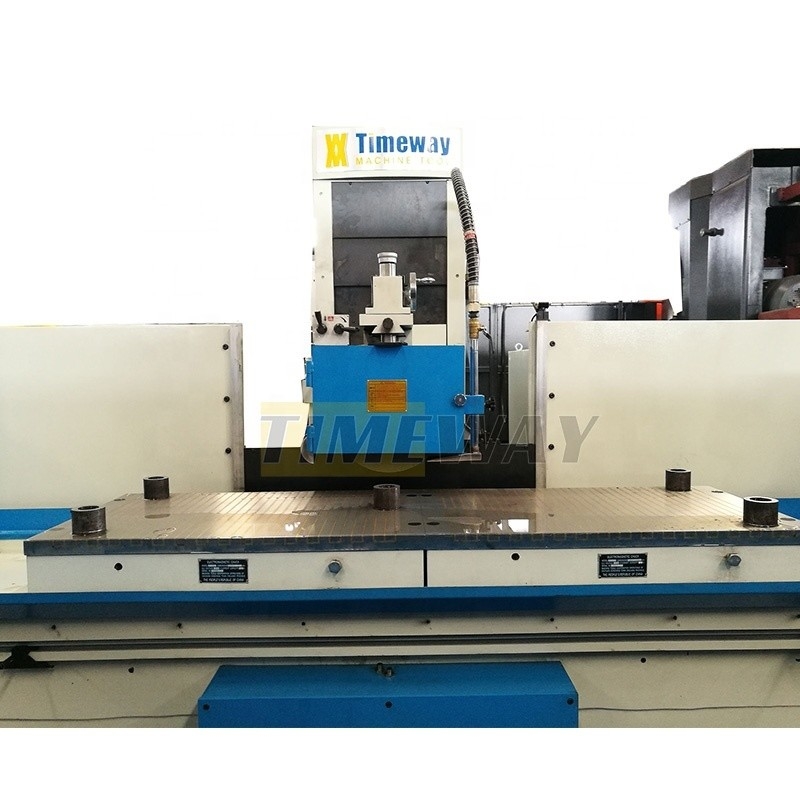

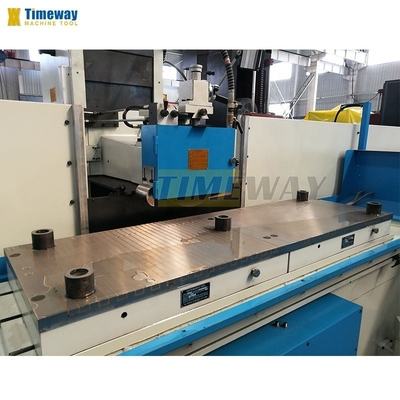

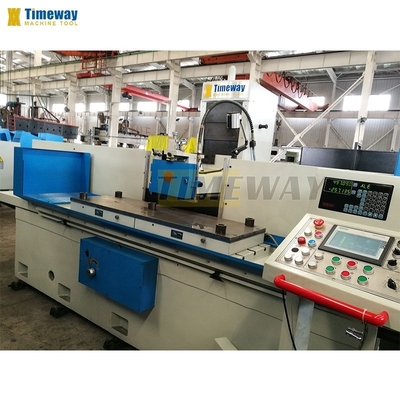

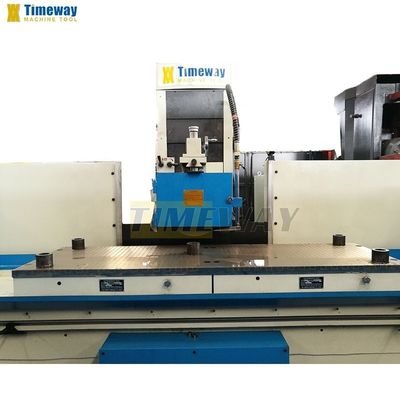

High Speed Surface Grinding Machine and Column Moving Type with Table Size 500*1600 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 500 | Wheel Size(mm): | 350 |
| Surface Roughness(μm): | 300 μm | Table Size(mm): | 500x1600 Mm |
| Voltage: | 220/380V | Dimension(L*W*H): | 5640x2250x2500 Mm |
| Weight (KG): | 6000 | Power (kW): | 7.5 Kw |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Mexico, Japan, Egypt, Kenya, Morocco, South Africa, South Korea, Canada, Russia, Malaysia, Peru, Kazakhstan | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Machine Type: | Column Moving Type Surface Grinding Machine |
| Key Words: | Surface Grinding Machine | Model: | SG-50160FR |
| Table Size: | 500*1600 Mm | Grinding Area: | 500*1600 Mm |
| Grinding Wheel Size: | 350*40*127 Mm | Main Motor Power: | 7.5 Kw |
| Package Dimensions (L*W*H): | 5640*2250*2500 Mm | Machine Weight: | 6000 Kg |
| Distance From Spindle To Table: | 600 Mm | Port: | China Port |
Product Description
Products Description
* Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable power for precision grinding. * With auto. center lubrication unit. * Very easy to set auto ground program include rough, finish, and spark-out stroke. * The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy. * The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
Specification | Unit | SG-50100FR | SG-50160FR |
Table size | mm | 500x1000 | 500x1600 |
Grinding area | mm | 500x1000 | 500x1600 |
Distance from spindle to table | mm | 600 | 600 |
Electro magnetic chuck size (pcs.) | mm | 500x1000x1 | 500x800x2 |
Max. loading capacity (include chuck) | kg | 700 | 900 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 |
Cross intermittent feed rate | mm/str | 0-30 | 0-30 |
Cross continuous feed speed | mm/min | 0-1500 | 0-1500 |
Cross feed rate (MPG) | mm/gra | 0.005 | 0.005 |
Vertical intermittent feed rate | mm/str | 0.005-0.05 | 0.005-0.05 |
Vertical continuous feed speed | mm/min | 0-600 | 0-600 |
Vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 |

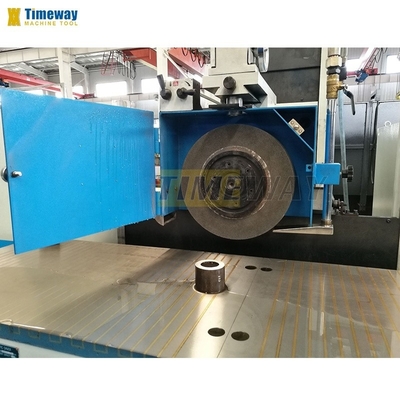

Grinding wheel size | mm | 350x40x127 | 350x40x127 |
Main motor power | kw | 7.5 | 7.5 |
Package dimensions (LxWxH) | mm | 3990x2250x2500 | 5640x2250x2500 |
Machine weight | kg | 5500 | 6000 |

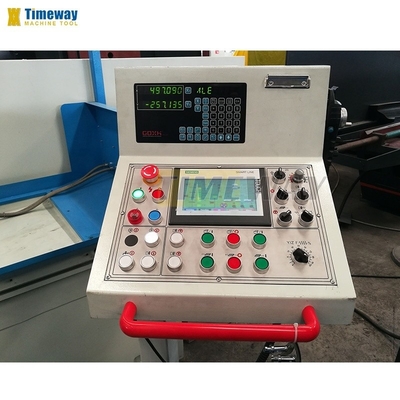

· PLC+SMART auto. grinding controller, · Coolant tank, · Work lamp, · Balancing arbor, · Wheel flange and extractor, · Wheel dresser stand, · Y/Z axis electrical wheel(MPG), · Splashing guard, · Standard grinding wheel, · Leveling wedge and bolts, · Tools & tool-box, · Operation manual . | · Balancing stand, · Magnetic separator, · Paper filter, · Oil tank guard, · Electrical magnetic chuck, · Built-in magnetic chuck controller, · Parallel wheel dresser, · 2 axis digital readout, · Extra wheel flange |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
