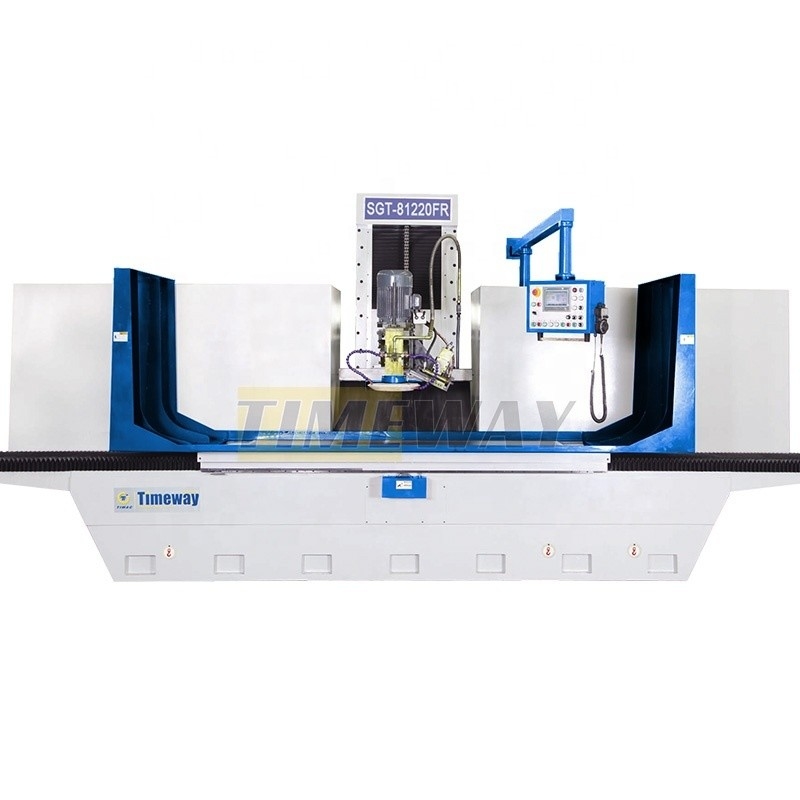

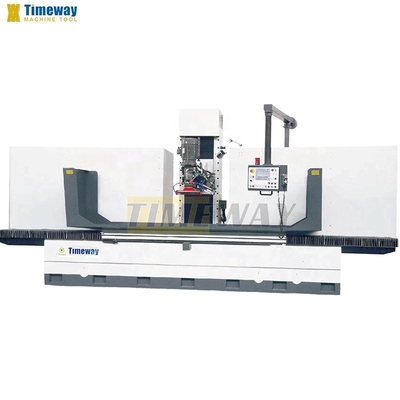

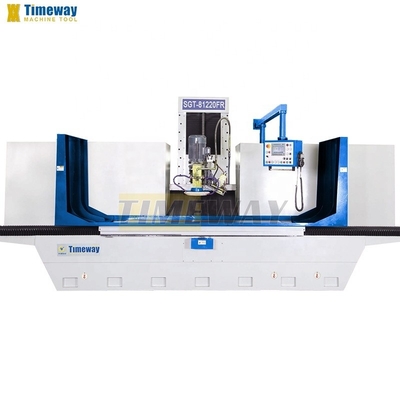

Normal CNC Column Moving Type Surface Grinding Machine With 500 μm Surface Roughness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 810 | Wheel Size(mm): | 500 |
| Surface Roughness(μm): | 500 μm | Voltage: | 220/380 V |
| Dimension(L*W*H): | 6000x3500x2950 Mm | Weight (KG): | 12000 |
| Power (kW): | 5.5 Kw | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Indonesia, Mexico, Kenya, South Korea, Canada, Russia, Uzbekistan, Sri Lanka, Kyrgyzstan, Peru, Ukraine, Bangladesh, Kazakhstan, Algeria |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC, Other | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Machine Type: | Column Moving Type Surface Grinding Machine | Keywords: | Surface Grinding Machine |
| Model: | SGT-81220FR | Table Size: | 810*2200 Mm |
| Grinding Area: | 810*2200 Mm | Grinding Height: | 790 Mm |
| Main Motor Power: | 5.5 Kw | Wheelhead Swivel Angle: | ±5° / ±30° |
| Machine Dimensions (L*W*H): | 6000*3500*2950 Mm | Machine Weight: | 12000 Kg |
| Port: | China Port | ||
Product Description
Products Description
* Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable
power for precision grinding.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
power for precision grinding.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
Specification | Unit | SGT-81220FR |
Table size | mm | 810x2200 |
Grinding area | mm | 810x2200 |
Grinding height | mm | 790 (heighten) |
Wheelhead swivel angle | ° | ±5° / ±30° |
Loading capacity (include chuck) | kg | 2300 |
Table longitudinal feed speed | gm/min | 5-25 |
Column cross feed rate (MPG) | mm/gra | 0.005 |
Column cross continuous feed speed | mm/min | 50-2000 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 |
Spindle speed | rpm | 1450 |
Grinding wheel size | mm | customerized |
Main motor power | kw | 5.5 |
Total power | kw | 17 |
Machine dimensions (LxWxH) | mm | 6000x3500x2950 |
Machine weight | kg | 12000 |
· PLC+SMART auto. grinding controller, · Coolant tank, · Work lamp, · Balancing arbor, · Wheel flange and extractor, · Wheel dresser stand, · Y/Z axis electrical wheel(MPG), · Splashing guard, · Standard grinding wheel, · Leveling wedge and bolts, · Tools & tool-box, · Operation manual. | · Balancing stand, · Magnetic separator, · Paper filter, · Oil tank guard, · Electrical magnetic chuck, · Built-in magnetic chuck controller, · Parallel wheel dresser, · 2 axis digital readout, · Extra wheel flange |
