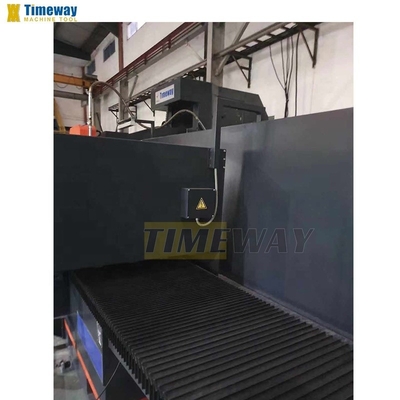

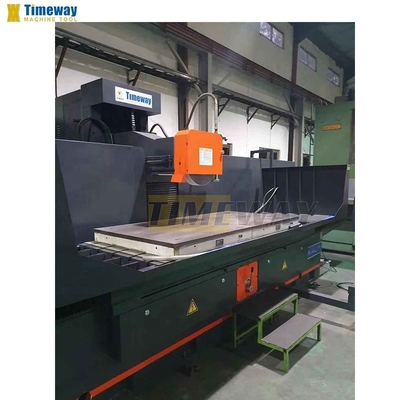

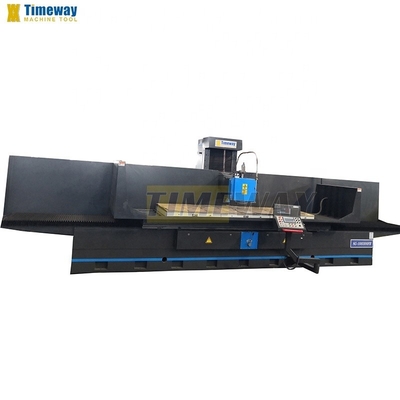

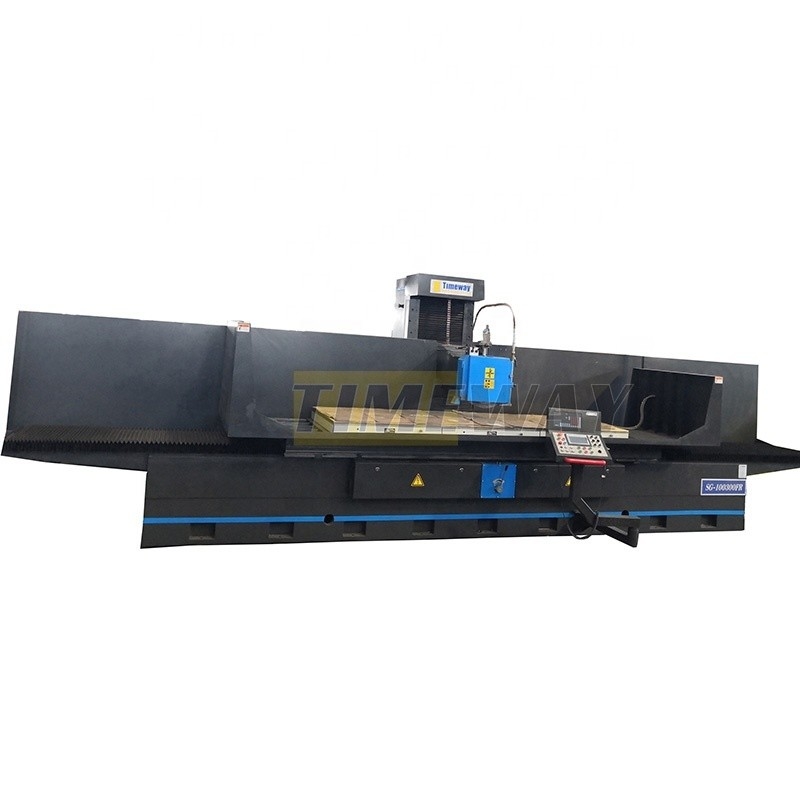

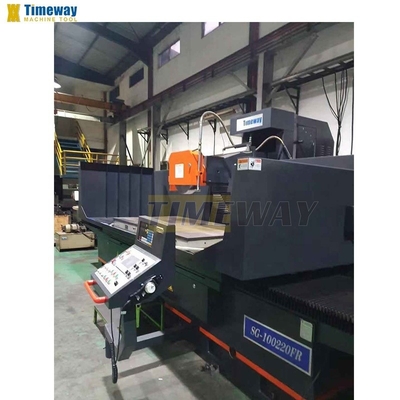

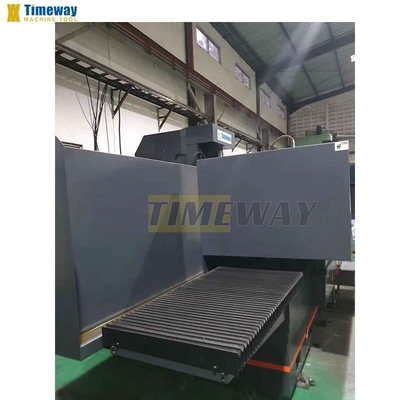

Universal Column Moving Type Surface Grinding Machine Machine Weight 14000 kg 220/380 V
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 500 | Wheel Size(mm): | 100 |
| Surface Roughness(μm): | 305 μm | Table Size(mm): | 1000x2200 Mm |
| Voltage: | 220/380 V | Dimension(L*W*H): | 7200x5200x2500 Mm |
| Weight (KG): | 1400 | Power (kW): | 18.5/22 Kw |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Indonesia, Japan, Australia, Kenya, South Africa, Canada, Russia, Philippines, Uzbekistan, Kyrgyzstan, Ukraine, Bangladesh, Kazakhstan, Algeria | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Machine Type: | Column Moving Type Surface Grinding Machine |
| Keywords: | Surface Grinding Machine | Model: | SG-100220FR |
| Table Size: | 1000*2200 Mm | Grinding Area: | 1000*2200 Mm |
| Grinding Wheel Size: | 500*100*305 Mm | Main Motor Power: | 18.5/22 Kw |
| Grinding Height: | 670(830/1000) Mm | Machine Dimensions (LxWxH): | 7200*5200*2500 Mm |
| Machine Weight: | 14000 Kg | Port: | China Port |
Product Description
Products Description
* Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable
power for precision grinding.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
power for precision grinding.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
Specification | Unit | SG-100220FR |
Table size | mm | 1000x2200 |
Grinding area | mm | 1000x2200 |
Grinding height | mm | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 1000x1000x2 |
Loading capacity (include chuck) | kg | 4000 |
Table longitudinal feed speed | m/min | 5-25 |
Column cross intermittent feed rate | mm/str | 1-50 |
Column cross continuous feed speed | mm/min | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 |
Grinding wheel size | mm | Φ500x100xΦ305 |
Main motor power | kw | 18.5/22 |
Hydraulic motor power | kw | 7.5 |
Y/Z-axis servo motor power | kw | 3 |
Total power | kw | 45 |
Machine dimensions (LxWxH) | mm | 7200x5200x2500 |
Machine weight | kg | 14000 |
· PLC+SMART auto. grinding controller, · Coolant tank, · Work lamp, · Balancing arbor, · Wheel flange and extractor, · Wheel dresser stand, · Y/Z axis electrical wheel(MPG), · Splashing guard, · Standard grinding wheel, · Leveling wedge and bolts, · Tools & tool-box, · Operation manual. | · Balancing stand, · Magnetic separator, · Paper filter, · Oil tank guard, · Electrical magnetic chuck, · Built-in magnetic chuck controller, · Parallel wheel dresser, · 2 axis digital readout, · Extra wheel flange. |
