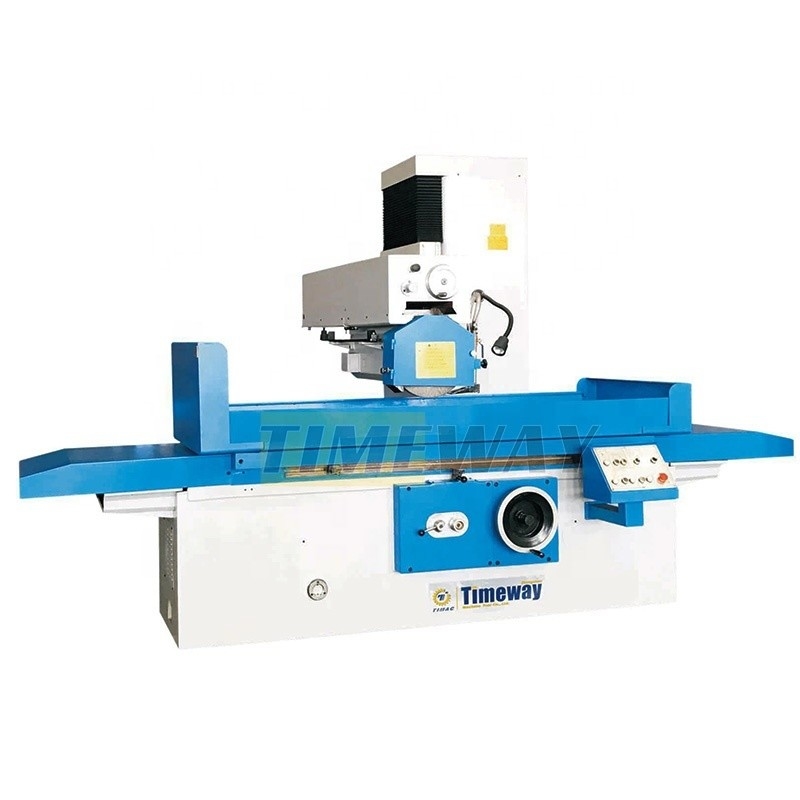

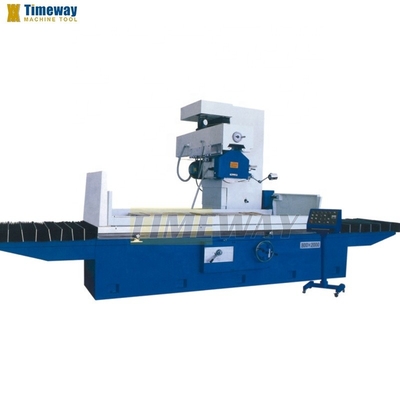

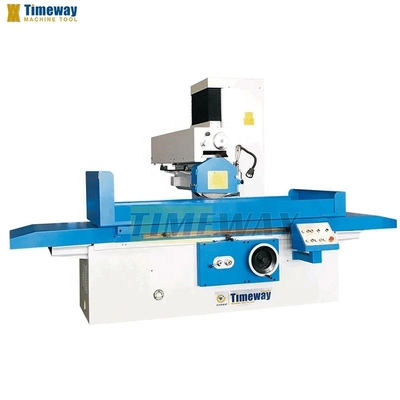

Medium Type Cantilever Moving Type Surface Grinding Machine with 1600 mm Table Length
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 450 | Wheel Size(mm): | 63 |
| Surface Roughness(μm): | 203 μm | Table Size(mm): | 800x1600 Mm |
| Voltage: | 220/380V | Dimension(L*W*H): | 4800x2500x2650 Mm |
| Weight (KG): | 9500 | Power (kW): | 15 Kw |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Mexico, France, South Africa, Canada, Russia, Philippines, Italy, Brazil, Saudi Arabia, Chile, Bangladesh | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Machine Type: | Cantilever Moving Type Surface Grinding Machine |
| Keywords: | Surface Grinding Machine | Model: | GS-800A |
| Table Width: | 800 Mm | Table Length: | 1600 Mm |
| Main Motor Power: | 15 Kw | Spindle Speed: | 1440 Rpm |
| Grinding Wheel Size: | 450*63*203 Mm | Overall Dimensions (L*W*H): | 4800*2500*2650 Mm |
| Machine Weight: | 9500 Kg | Port: | China Port |
Product Description
Products Description
* It is designed with cantilever moving type, reasonable structure and nice-looking.
* It is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding side surface of workpiece by grinding wheel side-face. The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures .
* Wheelhead is equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
* The distance between the oil recovery point and the oil entry point in the oil pool is the longest, and the hydraulic oil is circulated to balance the oil temperature distribution and reduce the thermal deformation of the machine.
* Beautiful shape, good rigidity, stable and reliable performance and easy to maintenance.
* According to customer's need, can choose inverter driven on wheelhead cross movement, realize stepless speed adjustment.
* Optional magnetic separator and paper filter to reduce the dust of the cutting liquid and ensure the grinding process.
* It is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding side surface of workpiece by grinding wheel side-face. The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures .
* Wheelhead is equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
* The distance between the oil recovery point and the oil entry point in the oil pool is the longest, and the hydraulic oil is circulated to balance the oil temperature distribution and reduce the thermal deformation of the machine.
* Beautiful shape, good rigidity, stable and reliable performance and easy to maintenance.
* According to customer's need, can choose inverter driven on wheelhead cross movement, realize stepless speed adjustment.
* Optional magnetic separator and paper filter to reduce the dust of the cutting liquid and ensure the grinding process.
Specification | Unit | GS-600A | GS-700A | GS-800A |
Table width | mm | 600 | 700 | 800 |
Table length | mm | 1000/1600/2200 | 1250/1600/2200 | 1600/2200/3000 |
Max. grinding width | mm | 600 | 700 | 800 |
Max. grinding length | mm | 1100/1700/2300 | 1350/1700/2300 | 1700/2300/3100 |
Max. grinding height | mm | 400 | 500 | 525 |
Distance from spindle to table | mm | 600 | 700 | 725 |
Longitudinal feed speed | m/min | 3-27 | 3-27 | 3-27 |
T-slot (No./width) | mm | 3/22 | 3/22 | 3/22 |
Cross continuous feed speed | m/min | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
Cross intermittent feed rate | mm/str | 3-30 | 3-30 | 3-30 |
Cross feed of handwheel per gra. | mm/gra | 0.02 | 0.02 | 0.02 |
Vertical rapid feed speed | mm/min | 400 | 400 | 400 |
Vertical feed of handwheel per gra. | mm/gra | 0.005 | 0.005 | 0.005 |
Vertical feed of handwheel per rev. | mm/rev | 0.645 | 0.515 | 0.515 |
Main motor power | kw | 7.5 | 11 | 15 |
Spindle speed | rpm | 1440 | 1440 | 1440 |
Total power | kw | 13.75 | 19.75 | 28.75 |
Loading capacity (include chuck) | kg | 850/1150/1500 | 1100/1400/1800 | 1600/2000/3000 |
Grinding wheel size | mm | 400x40x203 | 400x50x203 | 450x63x203 |
mm | 3450x1900x2350 | 3600x1900x2430 | 4800x2500x2650 | |
5550x1900x2350 | 4150x1900x2430 | 6600x2500x2650 | ||
6750x1900x2350 | 6150x1900x2430 | 8550x2500x2650 | ||
Machine weight | kg | 5000/6900/8100 | 6200/6600/7200 | 9500/11000/13000 |
· Grinding wheel, · Wheel balancing arbor, · Wheel extractor, · Coolant system, · Work lamp, · Wheel flange, · Wheel dresser, · Leveling wedge and bolt, · Tools and tool box, · Operation manual. | · Diamond pen, · Electrical magnetic chuck, · Wheel balancing stand, · Paper fliter, · Magnetic separator, · Demagnetizer |
