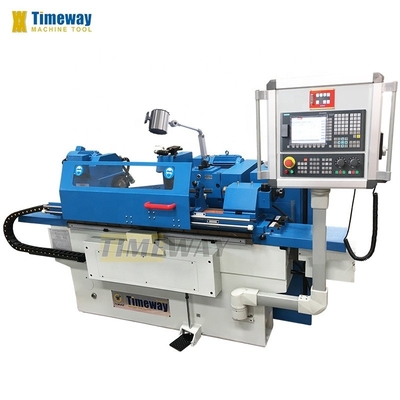

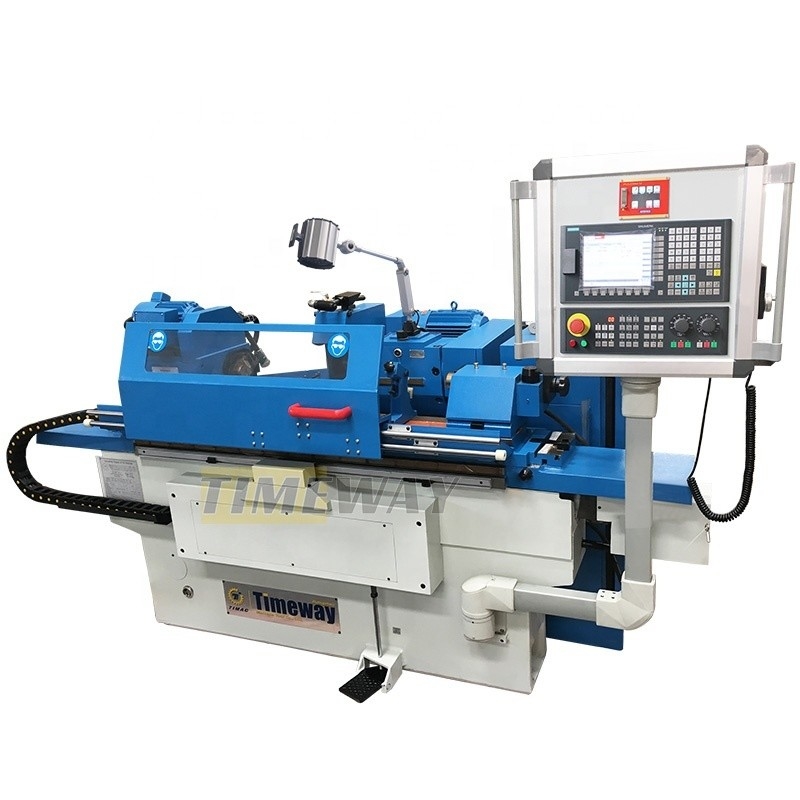

CNC Cylindrical Grinding Machine with High Speed Center Height 135 mm Roundness 1.5 um
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380V |
| Weight (KG): | 2500 | Power (kW): | 10.825 Kw |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | India, Kenya, Australia, Egypt, Russia, Malaysia, Colombia, Italy, Thailand, Uzbekistan, Ukraine, Brazil, Saudi Arabia, Bangladesh | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Machine Type: | Cylindrical Grinding Machine |
| Key Words: | Grinding Machine | Model: | GK-200H |
| Dia. Ground (O.D): | 8-200 Mm | Center Height: | 135 Mm |
| Loading Capacity: | 50 Kg | Grinding Wheel Size: | 400*50*203 Mm |
| Grinding Spindle Speed: | 2130 Rpm | Tailstock Center: | MT4 |
| Roundness: | 1.5 Um | Port: | China Port |
Product Description
Products Description

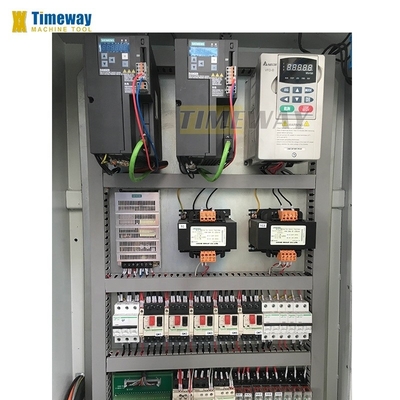

* The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically
Specification | Unit | GK-200H | UGK-200H |
Dia. ground (O.D) | mm | 8-200 | 8-200 |
Grinding length (O.D) | mm | 500/800 | 500/800 |
Center height | mm | 135 | 135 |
Distance between centers | mm | 550/850 | 550/850 |
Headstock center | - | MT4 | MT4 |
Tailstock center | - | MT4 | MT4 |
Loading capacity | kg | 50 | 50 |
Grinding wheel size | mm | Ф400x50xФ203 | Ф400x50xФ203 |
Max. peripheral speed of grinding wheel | m/s | 38 (hydrodynamic-hydrostatic 45m/s) | 38 (hydrodynamic-hydrostatic 45m/s) |
Grinding spindle speed | rpm | 2130 | 2130 |
Internal grinding spindle speed | rpm | - | 16000 |
Dia. ground (I.D) | mm | - | 13-100 |
X-axis min. feed unit | mm | 0.001 | 0.001 |
Z-axis min. feed unit | mm | 0.001 | 0.001 |
Total power | kw | 10.825 | 10.825 |
Longitudinal servo motor power | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Cross servo motor power | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Roundness | um | 1.5 | 1.5 |
Roughness | um | Ra0.32 | Ra0.32 |
Unifomity of dia.in longitudinal section | um | 5 | 5 |
· Grinding wheel, · Grinding wheel flange, · Three jaw chuck (UG), · Driving dog, · Arbor for internal grinding (UG), · Grinding wheel dresser, · Wheel balancing arbor, · Open type steady rest, · Dead centers, · Frequency inverter, · Coolant system, · Work lamp, · Leveling wedge, · Operation manual | · Wheel balancing stand, · Radius dresser, · Close type center rest, · Digital readout, · Paper filter, · Magnetic separator. |
