Newly Released Metal Grinding Machine for Your Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380 V |
| Dimension(L*W*H): | 2500 (3000) X1600x1500 Mm | Weight (KG): | 2500 |
| Power (kW): | 5.625 Kw | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | India, Kenya, Australia, Russia, Kyrgyzstan, Colombia, Thailand, Tajikistan, Philippines, Ukraine, Saudi Arabia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Machine Type: | Cylindrical Grinding Machine | Key Words: | Grinding Machine |
| Model: | G-200H | Dia. Ground (O.D): | 8~200 Mm |
| Center Height: | 135 Mm | Workhead Spindle Speed: | 25~380 Rpm |
| Loading Capacity: | 50 Kg | Machine Motor Power: | 5.625 Kw |
| Machine Dimemsions (L*W*H): | 2500 (3000) *1600*1500 Mm | Machine Weight: | 2500 (3000) Kg |
| Port: | China Port | ||
Product Description
Products Description

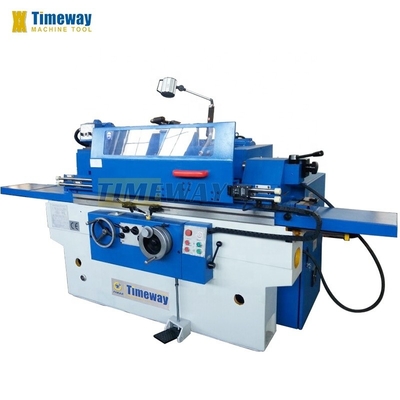

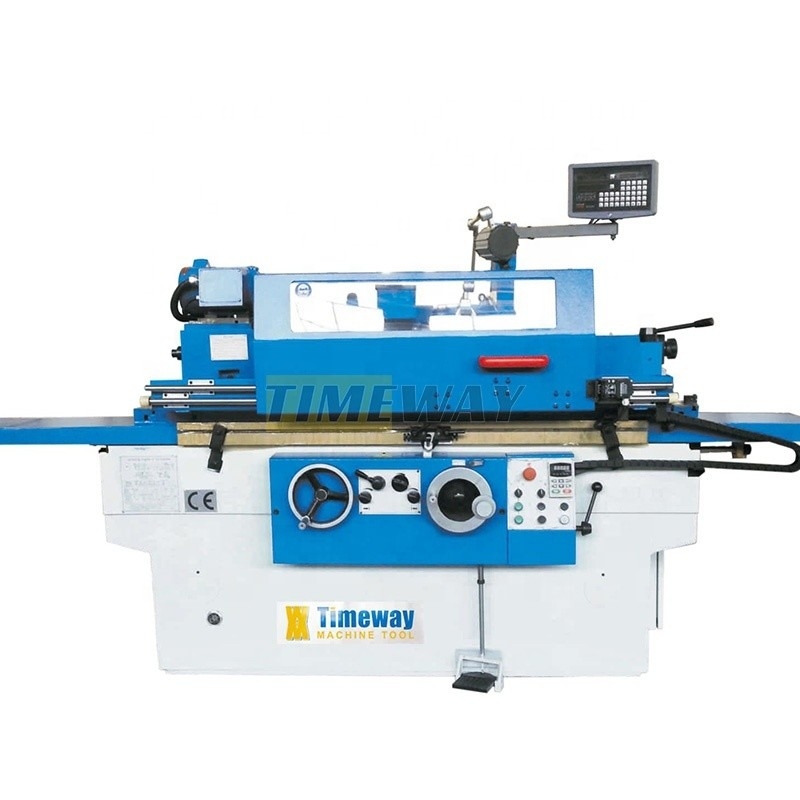

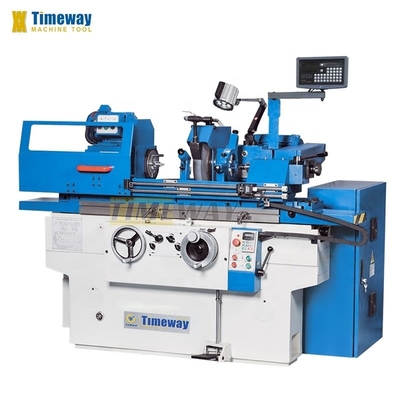

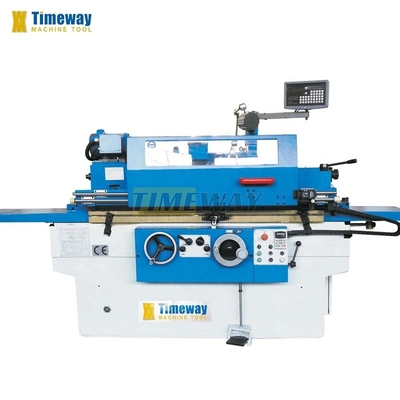

* G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200H comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series.
Specification | Unit | G-200H | UG-200H |
Dia. ground (O.D) | mm | 8-200 | 8-200 |
Dia. ground (I.D) | mm | - | 13-100 |
Center height | mm | 135 | 135 |
Workhead spindle speed | rpm | 25~380 | 25~380 |
Max. table travel | mm | 650 (950) | 650 (950) |
Table hydraulic feed speed | m/min | 0.1~4 | 0.1~4 |
Loading capacity | kg | 50 | 50 |
Grinding length (O.D/I.D) | mm | 500/- (800/-) | 500/125 (800/125) |
Table swivel angle | ° | -5~+9° (-3~+7°) | -5~+9° (-3~+7°) |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 |
External wheel size | mm | Max: Ф400x50xФ203; Min: Ф280x50xФ203 | Max: Ф400x50xФ203; Min: Ф280x50xФ203 |
Internal grinding spindle speed | rpm | - | 16000 |
Workhead and tailstock center | - | MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Roundness (O.D/I.D) | um | 1.5 | 1.5/2.5 |
Roughness (O.D/I.D) | um | Ra0.32 | Ra0.32/Ra0.63 |
Unifomity of dia.in longitudinal section | um | 5 | 5/8 |
Machine dimemsions (LxWxH) | mm | 2500 (3000)x1600x1500 | 2500 (3000) x1600x1500 |
Machine weight | kg | 2500 (3000) | 2500 (3000) |
· Grinding wheel, · Grinding wheel flange, · Three jaw chuck (UG), · Driving dog, · Arbor for internal grinding (UG), · Grinding wheel dresser, · Wheel balancing arbor, · Open type steady rest, · Dead centers, · Frequency inverter, · Coolant system, · Work lamp, · Leveling wedge, · Operation manual. | · Wheel balancing stand, · Radius dresser, · Close type center rest, · Digital readout, · Paper filter, · Magnetic separator. |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
