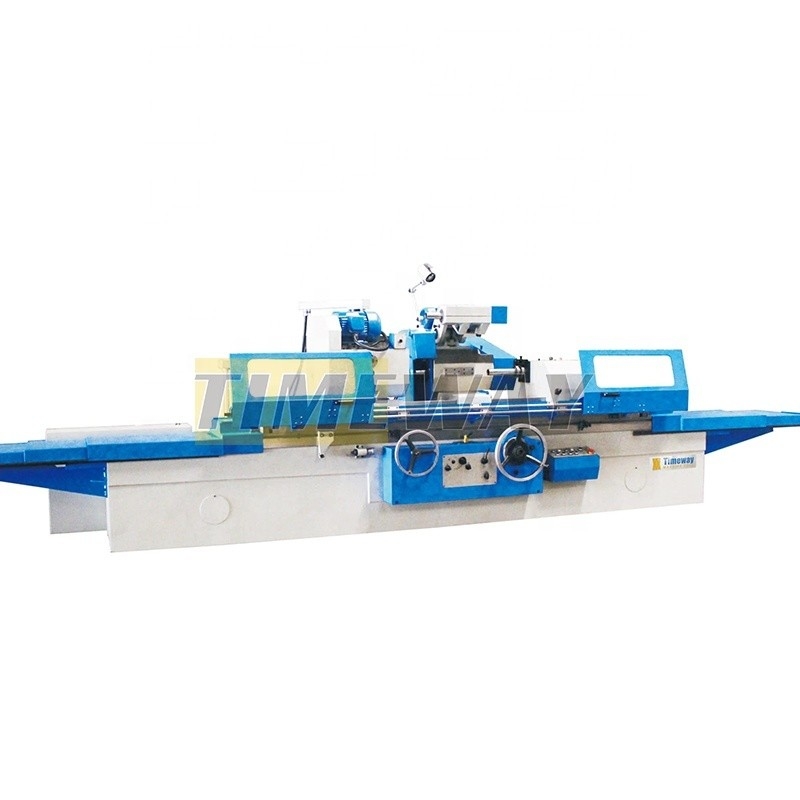

750x75x305 mm External Grinding Wheel Size Cylindrical Grinding Machine with 4 kW Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380V |
| Dimension(L*W*H): | 543x225x210 Cm | Weight (KG): | 10000 |
| Power (kW): | 4 Kw | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | India, Kenya, Australia, Japan, South Africa, Russia, Malaysia, Kyrgyzstan, Kazakhstan, Nigeria, Peru, Italy, Thailand, Tajikistan, Chile, Uzbekistan, Ukraine, Brazil, Bangladesh |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Other |
| Machine Type: | Cylindrical Grinding Machine | Key Words: | Grinding Machine |
| Model: | UG-500 | Distance Between Centers: | 1500/2000/3000/4000 Mm |
| Center Height: | 270 Mm | Grinding Length (O.D): | 1500/2000/3000/4000 Mm |
| External Grinding Wheel Siz: | 750x75x305 Mm | Workhead Motor Power: | 4 Kw |
| Gross Weight: | 10/11/13/17 Tons | Packing Size (L*W*H): | 543/583/796/996*225*210 Cm |
| Port: | China Port | ||
Product Description
Products Description
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.

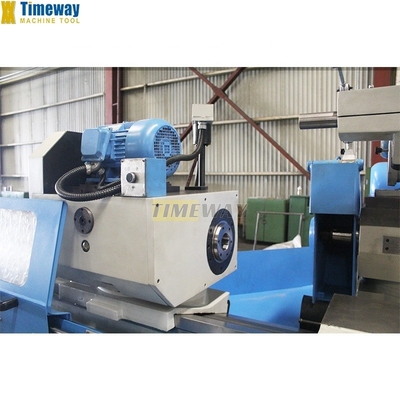

* For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
* Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
Specification | Unit | UG-500 |
Distance between centers | mm | 1500/2000/3000/4000 |
Center height | mm | 270 |
Dia. ground (O.D) | mm | 25-500 |
Dia. ground (I.D) | mm | – |
Grinding length (O.D) | mm | 1500/2000/3000/4000 |
Grinding length (I.D) | mm | 320 |
Loading capacity | kg | 1000 |
Workhead swivel angle | ° | 90° |
Workhead spindle taper | – | MT6 |
Workhead spindle speed | rpm | 20-244 (stepless) |

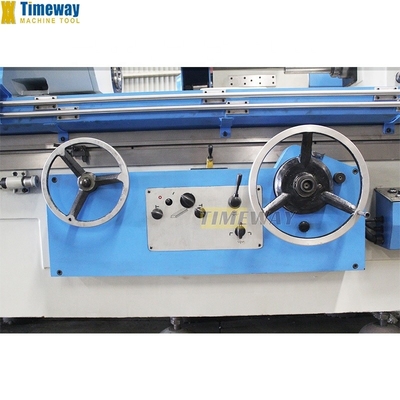

Wheelhead feed of handwheel per rev. (rough/fine) | mm/rev | 4/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm/gra | 0.02/0.0025 |
External grinding wheel size | mm | 500x75x305 |
Max. peripheral speed of grinding wheel | m/s | 35 |
Internal grinding spindle speed | rpm | 10000 |
Internal grinding wheel size | mm | 175x32x32 |
Table feed of handwheel per rev. | mm | 5 |
Table swivel angle (CW) | ° | 3°/2°/2° /1° |
Table swivel angle (CCW) | ° | 6° /5° /3° /2° |
Table longitudinal feed speed | m/min | 0.1-3 |
Tailstock quill taper | – | MT6 |
Tailstock quill travel | mm | 70 |
External grinding motor power | kw | 5/7.5 |
Internal grinding motor power | kw | 1.5 |
Workhead motor power | kw | 4 |
Roundness | um | 2.5/3/3/3 |
Cylindricity | um | 8/8/8/12 |
Roughness | um | Ra0.32 |
Gross weight | tons | 10/11/13/17 |
Packing size (LxWxH) | cm | 543/583/796/996x225x210 |
· Measuring bridge plate, · Open steady rest, · Wheel flange, · Wheel extractor, · Balancing arbor, · Grinding wheel, · Coolant tank, · Carbide tripped center, · Driving dog, · Wheel dresser, · Work lamp, · Internal grinding attachment (UG), · 3-jaw chuck (UG), · Extension shaft(UG), · Internal grinding wheel (UG), · Full set tools, · Leveling wedge, · Operation manual (English edition). | · Balancing stand, · Digital readout, · Close steady rest, · End wheel dresser, · Radius wheel dresser, · Center grinding attachment (G), · Magnetic separator, · Paper filter |
