Angular Grinding Type CNC Cylindrical Grinding Machine with Gross Weight 4.3/4.6 Tons
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Dimension(L*W*H): | 340x225x220 Cm | Weight (KG): | 4300 |
| Power (kW): | 1.1 Kw | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | India, Kenya, South Africa, Egypt, Russia, Malaysia, Colombia, Kazakhstan, Tajikistan, Uzbekistan, Ukraine, Algeria, Saudi Arabia, Bangladesh |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Shops, Retail, Building Material Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Machine Type: | CNC Cylindrical Grinding Machine | Model: | GDK-200 |
| Keywords: | Angular Grinding Type | Distance Between Centers: | 500/750 Mm |
| Center Height: | 135 Mm | Dia. Ground (O.D): | 8-200 Mm |
| Max. Weight Of Workpiece: | 50 Kg | Workhead Spindle Taper: | MT4 |
| Gross Weight: | 4.3/4.6 Tons | Packing Size (L*W*H): | 340/390*225*220 Cm |
| Port: | China Port | ||
Product Description
Summary
This series of machine tool is a two-axis linkage CNC numerical control cylindrical grinder. SIEMENS, FANUC or other numerical control systems are selected. In addition to satisfying the external cylindrical surface grinding of traditional industries such as automobiles, motorcycles, compressors, automotive gearboxes, oil pump nozzles, and valve stems, it is also suitable for rollers, ceramics, and semiconductors such as stereo printing Grinding of outer cylindrical surfaces in emerging industries.
Products Description

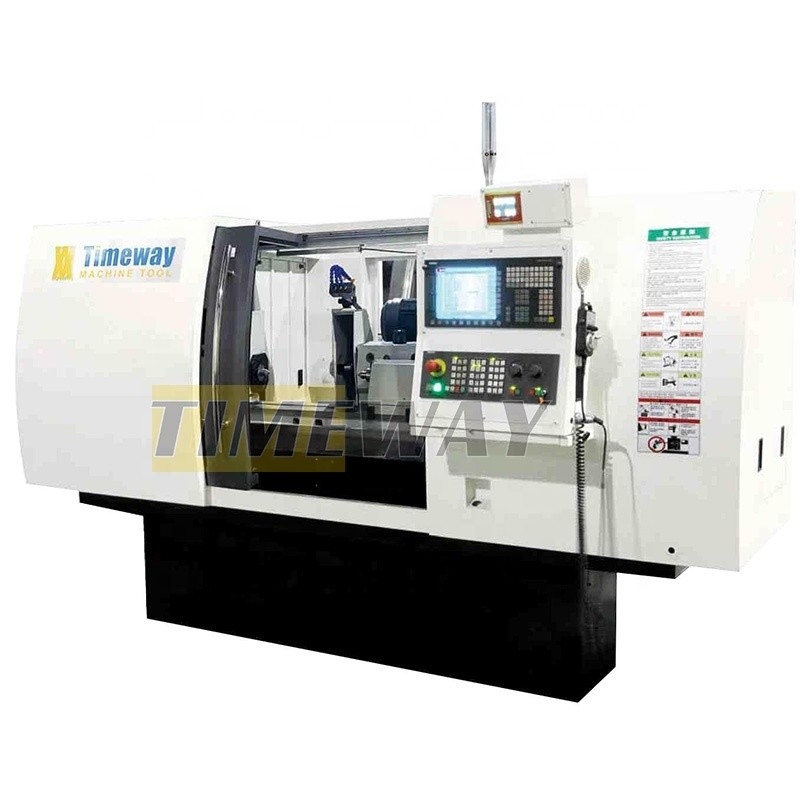

CNC Cylindrical Grinding Machine
Feature：
1.The movement of the worktable and the wheel carrier is completed by the AC servo motors on the Z-axis and X-axis to drive the ball screw.
2.X, Z axis linkage realizes linear and circular interpolation, and completes the grinding of inclined surface and circular arc.
3.Through reasonable programming, the machine can complete the grinding of single or combined surfaces such as cylindrical, conical, and shoulders of various small and medium-sized parts.
4.The grinding wheel can be shaped and trimmed to achieve the shape grinding.
Specification | Unit | GDK-200 | GDK-320 |
Distance between centers | mm | 500/750 | 1000/1500 |
Center height | mm | 135 | 180 |
Dia. ground (O.D) | mm | 8-200 | 8-320 |
Max. weight of workpiece | kg | 50 | 150 |
Workhead spindle taper | – | MT4 | MT5 |
CNC system | / | HNC-808DG, SIMENS 808D, FANUC 0i-TF | HNC-808DG, SIMENS 808D, FANUC 0i-TF |
Wheelhead motor power | kw | 7.5 | 11 |
Workhead motor power | kw | 1.1 | 1.5 |
Gross weight | tons | 4.3/4.6 | 4.5/5.1 |
Packing size (LxWxH) | cm | 340/390x225x220 | 465/585x230x220 |
· SIEMENS CNC system · Grinding wheel· Grinding wheel flange · Driving dog · Grinding wheel dresser · Wheel balancing arbor · Open type steady rest · Dead centers · Coolant system · Work lamp · Leveling wedge · Operation manual (English edition) | · Wheel balancing stand · Radius dresser · Paper filter · Magnetic separator · Diameter measuring instrument |

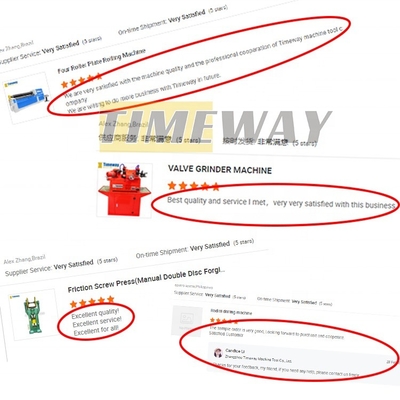

Positive Comments From Customers
Company Introduction

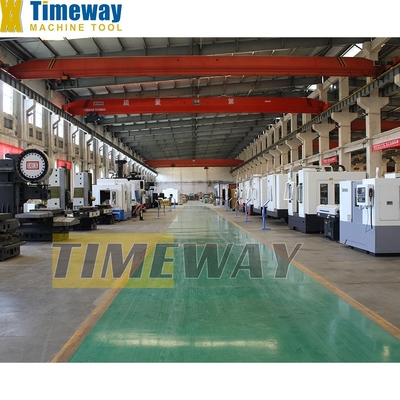

Factory Display：
