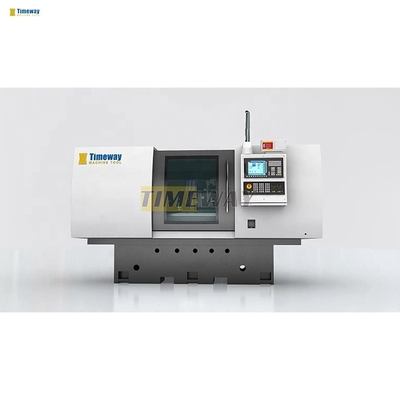

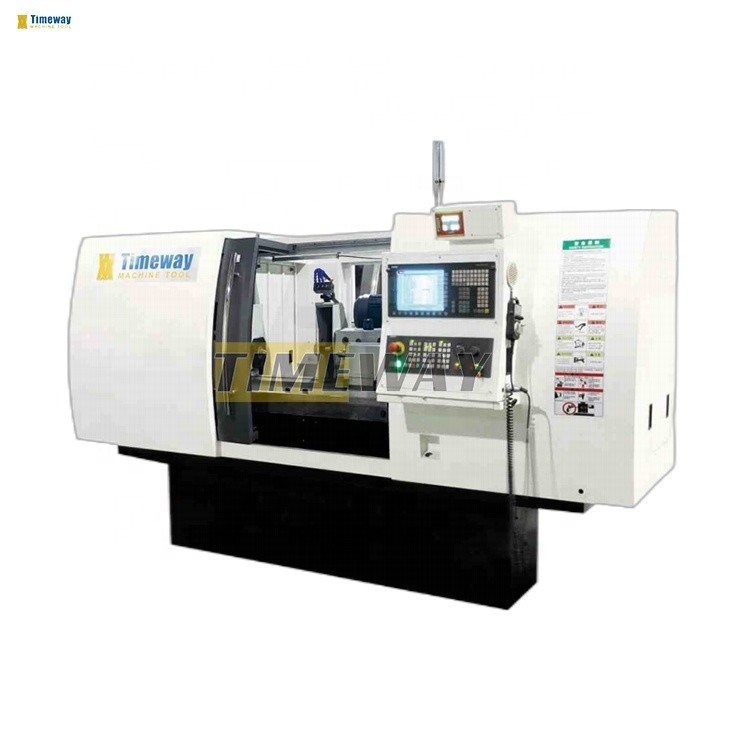

1000kg Load CNC Straight Plunge Grinding Type Cylindrical Grinding Machine for Grinding Results
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 0 |
|---|---|---|---|
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 270 |
| Wheel Size(mm): | 750x75x305 | Roundness(mm): | 2 |
| Cylindricity (mm): | 5 | Surface Roughness(μm): | 2 |
| Year: | 2022 | Voltage: | 220V, 380V, 400V |
| Dimension(L*W*H): | 583x225x210 | Weight (KG): | 11000 |
| Power (kW): | 4 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Showroom Location: | India, Indonesia, UAE, Mexico, France, Australia, South Korea, Russia, Canada, United States, Uzbekistan, Peru, Brazil, United Kingdom, Chile, Pakistan |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox, Engine, Other |
| Condition: | New | CNC Or Not: | CNC |
| Distance Between Centers: | 500/750 | Center Height: | 135 |
| Workhead Spindle Taper: | MT4 | Workhead Spindle Speed (stepless): | 25-260r/min |
| Max. Dimension Of Wheel (O.DxWxI.D): | 400x50x203 | Wheel Peripheral Velocity: | 35m/s |
| Min. Set Unit: | 0.0001mm | Tailstock Quill Taper: | MT4 |

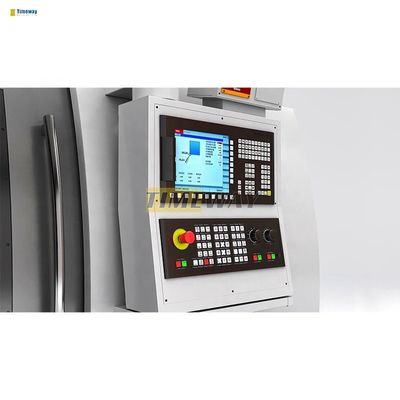

| Tailstock Quill Travel: | 30mm | CNC System: | HNC-808DG, SIMENS 808D, FANUC 0i-TF |
Product Description
Products Description
Features:

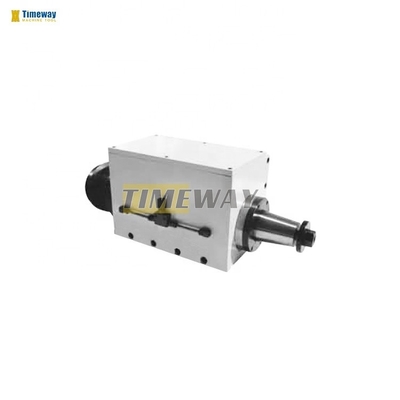

1. The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep. 2. The spindle of the grinding whel adopts large taper, four oil wedge, automatic adjustable hydro-dynamic pressure bearing, the workhead adopts hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong rigidity and high precision.
3. The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time.
Specification | Unit | GK-200 | GK-320 | GK-500 | GK-200-1 | GK-320-1 |
Distance between centers | mm | 500/750 | 1000/1500 | 1500/2000/3000/4000 | 500/750 | 1000/1500 |
Center height | mm | 135 | 180 | 270 | 135 | 180 |
Dia. ground (O.D) | mm | 8-200 | 8-320 | 25-500 | 8-200 | 8-320 |
Max. weight of workpiece | kg | 50 | 150 | 1000 | 50 | 100 |
Workhead spindle taper | / | MT4 | MT5 | MT6 | MT4 | MT5 |
Workhead spindle speed (stepless) | r/min | 25-260 | 26-190 | 10-100 | 60-600 | 35-350 |
Max. dimension of wheel (O.DxWxI.D) | mm | 400x50x203 | 600x75x305 | 750x75x305 | 400x50x203 | 500x80x203 |
Wheel peripheral velocity | m/s | 35 | 35 | 35 | 35 | 45 |
Min. set unit | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
Max. swiveling angle of table (Clockwise) | ° | 5° (500), 3° (750) | 3° | 3°(1500), 2°(2000,3000), 1°(4000) | 5° (500), 3° (750) | 3° |
Max. swiveling angle of table (Anticlockwise) | ° | 9° | 7° (1000), 6° (1500) | 6°(1500), 5°(2000), 3°(3000), 2°(4000) | 9° (500), 6° (750) | 7° (1000), 6° (1500) |
Tailstock quill taper | / | MT4 | MT4 | MT6 | MT4 | MT4 |
Tailstock quill travel | mm | 30 | 30 | 70 | 30 | 30 |
CNC system | / | optional | optional | optional | optional | optional |
Wheelhead motor power | kw | 4 | 11 | 15 | 5.5 | 7.5 |
Workhead motor power | kw | 1.1 | 1.5 | 4 | 1.1 | 1.5 |
Roundness | um | 2 | 3 | 3/5 | 0.5 | 0.5 |
Cylindricity | um | 5 | 8 | 8/10/10/15 | 2 (500), 3 (750) | 3 |
Roughness | um | Ra0.2 | Ra0.2 | Ra0.32 | Ra0.04 | Ra0.04 |
Gross weight | tons | 3.2/3.6 | 4.6/5.1 | 10/11/13/17 | 5.5/6 | 6.7/7.7 |
Packing size (LxWxH) | mm | 285/340/190x220 | 425/545x225x220 | 543/583/796/996x225x210 | 340/400x240x220 | 460/560x250x220 |
