High Precision CNC Angular Grinding Type Cylindrical Grinding Machine/retifica cilindrica cnc
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 320 | Grinding Diameter(Inner)(mm): | 0 |
|---|---|---|---|
| Max. Weight Of Workpiece(kg): | 150 | Center Height (mm): | 180 |
| Wheel Size(mm): | 600x75x305 | Roundness(mm): | 3 |
| Cylindricity (mm): | 8 | Surface Roughness(μm): | 0.2 |
| Year: | 2022 | Voltage: | 220 V/380 V |
| Dimension(L*W*H): | 465x230x220 | Weight (KG): | 4600 |
| Power (kW): | 11 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Showroom Location: | India, Indonesia, UAE, Mexico, South Africa, Spain, South Korea, Russia, Canada, United States, Uzbekistan, Philippines, Peru, Brazil, United Kingdom, Chile, Pakistan |
| Applicable Industries: | Energy & Mining, Construction Works | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox, Other |
| Condition: | New | CNC Or Not: | CNC |
| Distance Between Centers: | 1000/1500mm | Center Height: | 180mm |
| Dia. Ground (O.D): | 8-320mm | Max. Weight Of Workpiece: | 150kg |
| Workhead Spindle Taper: | MT5 | Workhead Spindle Speed (stepless): | 26-190r/min |
| Max. Dimension Of Wheel (O.DxWxI.D): | 600x75x305mm | Wheel Peripheral Velocity: | 35m/s |
| Min. Set Unit: | 0.0001mm | Tailstock Quill Taper: | MT4 |
| Port: | China Port | ||
Product Description
Products Description

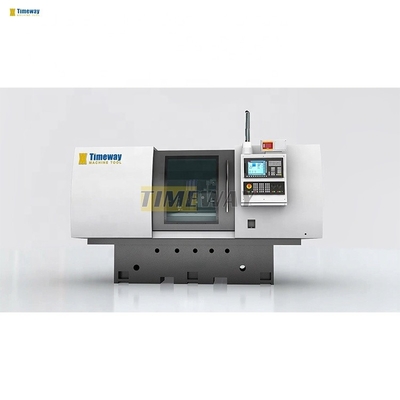

CNC cylindrical grinding machine
The machine bed adopts double-layer structure (finite element analysis), the casting with special ratio is cast in one piece, and the combined surface is manually precision scraped, thus the thermal deformation is stable and the accuracy is stable for a long time. Among them, GDK-M series adopts mineral bed structure, no deformation, and the accuracy is more durable and stable.
Features:

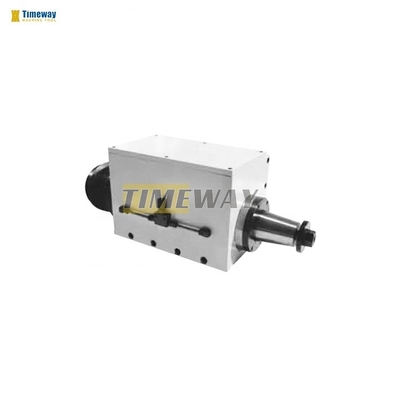

1. The table (Z-axis) guide adopts open unloading hydrostatic guide structure, and the transverse feed (X-axis) adopts Swiss N/O linear guide structure. It adopts high precision roller screw drive, zero clearance, low speed and no creep. 2. The spindle of the grinding whel adopts large taper, four oil wedge, automatic adjustable hydro-dynamic pressure bearing, the workhead adopts hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong rigidity and high precision.
Specification | Unit | GDK-200 | GDK-320 | GDK-200-1 | GDK-320-1 |
Distance between centers | mm | 500/750 | 1000/1500 | 500/750 | 1000/1500 |
Center height | mm | 135 | 180 | 135 | 180 |
Dia. ground (O.D) | mm | 8-200 | 8-320 | 8-200 | 8-320 |
Max. weight of workpiece | kg | 50 | 150 | 50 | 100 |
Workhead spindle taper | / | MT4 | MT5 | MT4 | MT5 |
Workhead spindle speed (stepless) | r/min | 25-260 | 26-190 | 60-600 | 35-350 |
Max. dimension of wheel (O.DxWxI.D) | mm | 500x75x203 | 600x75x305 | 500x80x203 | 500x80x203 |
Wheel peripheral velocity | m/s | 35 | 35 | 45 | 45 |

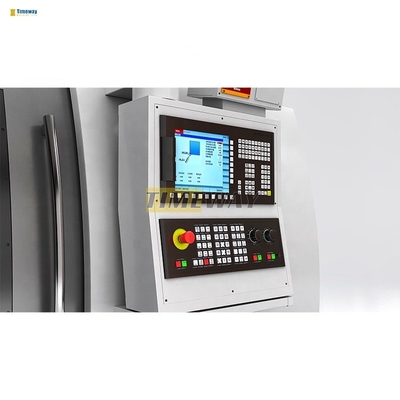

CNC system | / | optional | optional | optional | optional |
Wheelhead motor power | kw | 7.5 | 11 | 7.5 | 7.5 |
Workhead motor power | kw | 1.1 | 1.5 | 1.1 | 1.5 |
Gross weight | tons | 4.3/4.6 | 4.6/5.1 | 5.5/6 | 6.7/7.7 |
Packing size (LxWxH) | mm | 340/390x225x220 | 465/585x230x220 | 340/400x240x220 | 460/560x250x220 |
