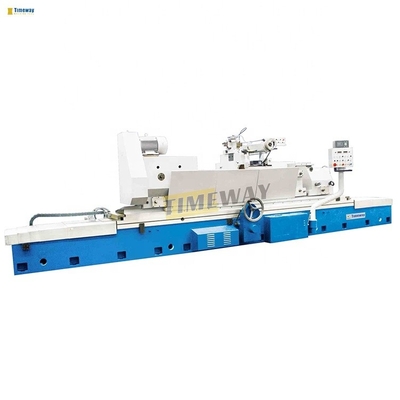

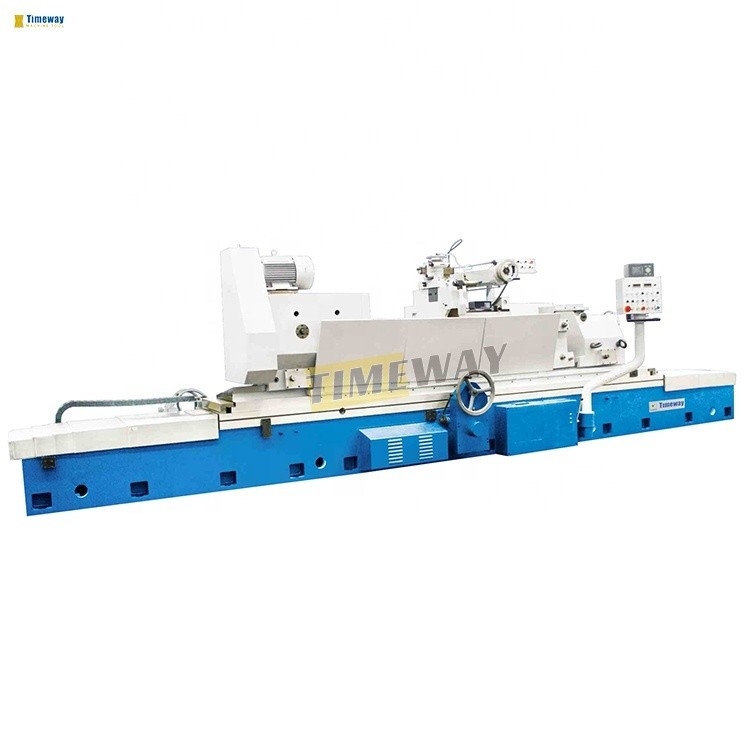

Voltage-optional O.D 800mm High Precision Cylindrical Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 800 | Grinding Length(mm): | 5000 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 5000 | Max. Weight Of Workpiece(kg): | 5000 |
| Center Height (mm): | 500 | Wheel Size(mm): | 900x75x305 |
| Wheel Speed (rpm): | 35 | Roundness(mm): | 0.0025 |
| Surface Roughness(μm): | 0.32 | Year: | 2022 |
| Voltage: | Optional | Weight (KG): | 35000 |
| Power (kW): | 40 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Showroom Location: | India, Indonesia, UAE, Mexico, South Africa, Spain, Egypt, South Korea, Russia, Malaysia, United States, Uzbekistan, Philippines, Peru, Italy, Brazil, United Kingdom, Chile, Pakistan |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Building Material Shops | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Other |
| Condition: | New | CNC Or Not: | Normal |
| Distance Between Centers: | 5100mm | Headstock Spindle Speed: | 6-80rpm |
| Tailstock Quill Taper: | Metric100 | Headstock Spindle Taper: | Metric100 |
| Main Motor Power: | 22kw | Flatness: | 0.008mm |
| Max. Peripheral Speed Of Grinding Wheel: | 35m/s | Center Height: | 500mm |
| COLOR: | Standard | Roundness: | 0.0025mm |
| Port: | China Port | ||
Product Description
Products Description
Features:

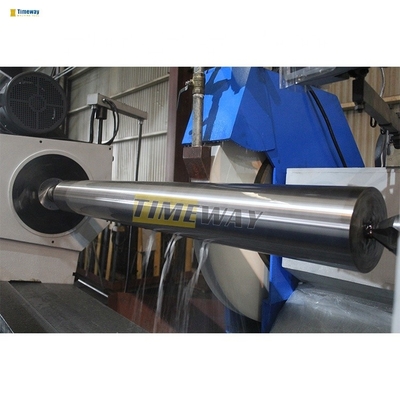

1. The machine is mainly used to grind external cylindrical surface and conic surface of parts with small coning, the accuracy of ground parts can reach IT5, IT6, and grind end face of step parts with lower dimensional accuracy. 2.The machine is suitable for using in machinery manufacturing industry, printing machinery, heavy machinery, etc.
3. Longitudinal movement of the worktable is carried out by hydraulic stepless transmission or by handwheel. Swiveling movement of workpiece is controlled by variable frequency motor together with frequency converter. Fast advance or reverse of grinding wheel stand is driven by hydraulic system. The machine adopts a dynamic-hydrostatic pressure spindle.
4. Grinding wheel is dressed through manual or automatic mode. Cross feed is carried out by hydraulic device as well as hand operation device.
Specification | Unit | G-630E | G-800E | G-1000E |
Grinding diameter (without steady rest) | mm | 30-630 | 50-800 | 100-1000 |
Grinding diameter (with steady rest) | mm | 150-350 | 250-400 | 250-400 |
Max. grinding length | mm | 2000/3000/ 4000/5000 | 3000/4000/ 5000/6000 | 3000/4000/ 5000/6000 |
Max. weight of workpiece | kg | 3000 | 5000 | 5000/6000 |
Center height | mm | 335 | 500 | 500 |
Distance between centers | mm | 2200/3120/ 4300/5300 | 3100/4100/ 5100/6100 | 3100/4100/ 5100/6100 |
Headstock spindle speed | rpm | 8-200 | 6-80 | 6-80 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 | 35 |
Grinding wheel size | mm | 900x75x305 | 900x75x305 | 900x75x305 |
Headstock spindle taper | / | Metric80 | Metric100 | Metric100 |
Tailstock quill taper | / | Metric80 | Metric100 | Metric100 |
Main motor power | kw | 22 | 22 | 22 |
Total power | kw | 35 | 40 | 40 |
Roundness | mm | 0.0025 | 0.0025 | 0.0025 |
Flatness | mm | 0.008 | 0.008 | 0.0012 |
Roughness | um | Ra0.32 | Ra0.32 | Ra0.32 |
Net weight | kg | 17000/21000/ 23000/26000 | 31000/33000/ 35000/37000 | 32000/34000/ 35000/38000 |
Gross weight | kg | 19000/23000/ 25000/28000 | 33000/35000/ 38000/40000 | 34000/36000/ 39000/41000 |
· Collant tank · Internal grinding head · Wheel dresser · Wheel with flange · Wheel dismount tool · Wheel balancing arbor · Measuring plate · Driving dog · Parallel wedge · Three-jaw chuck | · Radius wheel dresser · Wheel balancing stand · Open-type steady rest · Digital dresser · End dresser · Close-type center rest |
