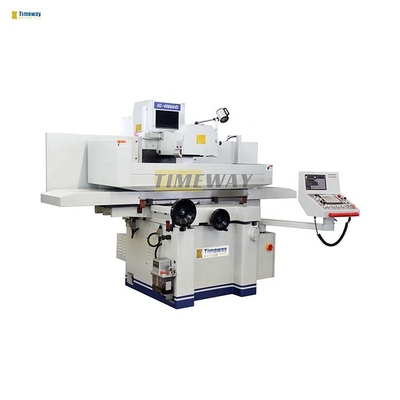

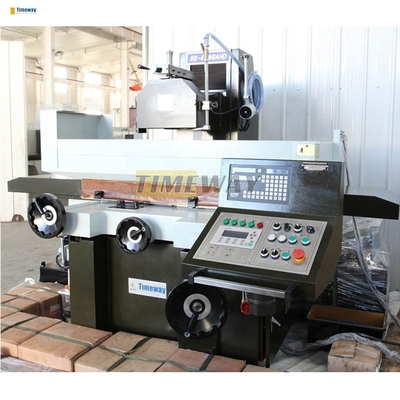

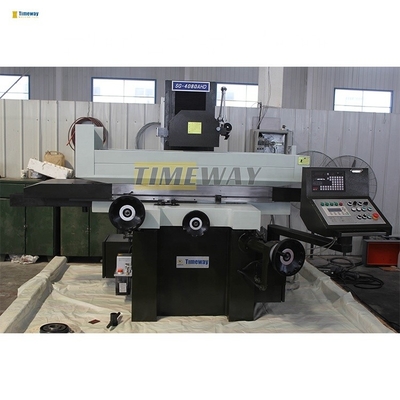

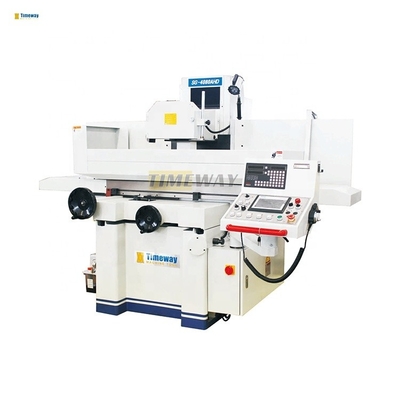

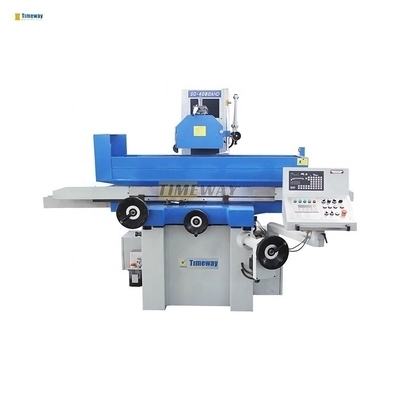

450mm Table Cross Travel Saddle Moving Type Surface Grinding Machine with Competitive
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 813 | Wheel Size(mm): | 350 |
| Surface Roughness(μm): | 0.32 μm | Table Size(mm): | 406x813mm |
| Table Travel (X) (mm): | 450 | Table Travel (Y) (mm): | 910 |
| Year: | 2022 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 3600x2400x1900mm | Weight (KG): | 3400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Indonesia, Nigeria, Germany, UAE, Mexico, Romania, Egypt, Kenya, Spain, Turkey, South Korea, Canada, Russia, Philippines, Thailand, Uzbekistan, Brazil, United Kingdom, Peru, Ukraine, Chile, Pakistan, Kazakhstan, United States |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC, Other | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Building Material Shops |
| Color: | Standard | After-sales Service Provided: | 1-year |

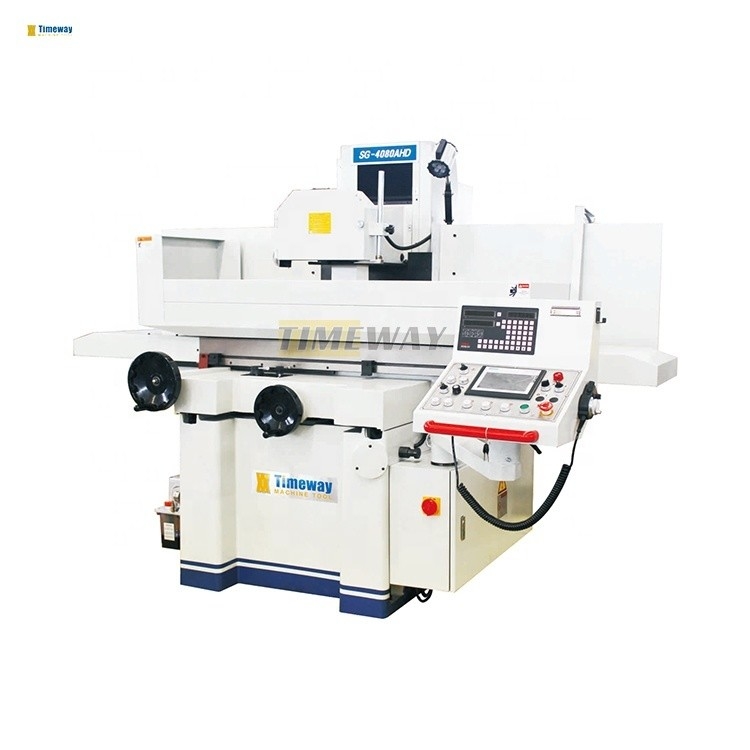

| Model: | SG-4080AHD | Table Size: | 406x813mm |
| Chuck Size: | 400x800mm | Table Cross Travel: | 450mm |
| Table Longitudinal Travel: | 910mm | Loading Capacity: | 500mm |
| Spindle Speed: | 1750rpm | Main Motor Power: | 4kw |
| Port: | China Port | ||
Product Description
Products Description
Features:
- SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000. - Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
- SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
Specification | Unit | SG-4080AHD | SG81300SD | |||
Table size | mm | 406x813 | 810X3000 | |||
Electro magnetic chuck size | mm | 400x800 | 810X3000 | |||
Distance from spindle to table | mm | 580 | 820 (925) | |||
Table cross travel | mm | 450 | 800X1000X3 | |||
Table longitudinal travel | mm | 910 | 5~25 | |||
Loading capacity (include chuck) | Auto feed | kg | 500 | 0.005~0.05 | ||
Longitudinal feed speed | Rapid speed | m/min | 5-25 | 0.05~2 | ||
Table cross intermittent feed rate | Feed of electro handwheel | mm/str | 0.1-8 | 0.005 | ||
Table cross rapid feed speed | Size (ODXWXID) | mm/min | 990 | 500X75X305 (450X75X203) | ||
Table cross feed of handwheel | mm/gra | 0.02 | ||||
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.5 | ||||
Wheelhead vertical rapid feed rate | mm/min | 480 | ||||
Wheelhead vertical feed of handwheel | mm/gra | 0.005 | ||||
Spindle speed (50/60HZ) | rpm | 1750 | ||||
Grinding wheel size | mm | 350x40x127 | 18.5 | |||
Main motor power | kw | 4 | 31 | |||
Machine dimensions (LxWxH) | mm | 3600x2400x1900 | 2700 | |||
Packing dimensions (LxWxH) | mm | 2850x2270x2210 | 8200x3600 | |||
Machine weight | kg | 3400 | 14000 | |||
- Magnetic chuck - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Built-in magnetic chuck controller - Lubrication system - Standard grinding wheel - Leveling wedge & screw - Tools & tool-box - Operation manual(English edition) | - Rear splashing guard - Magnetic separator - Paper filter - Oil tank guard - Diamond pen - Balancing stand - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange - Closed safe guard - Dust exhaust - Radius dresser - Angle dresser - Side dresser - Sinusoidal magnetic table - Electronic handwheel |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
