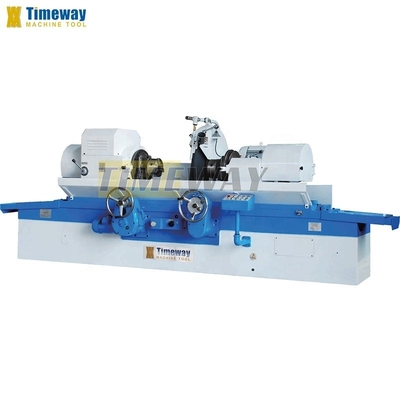

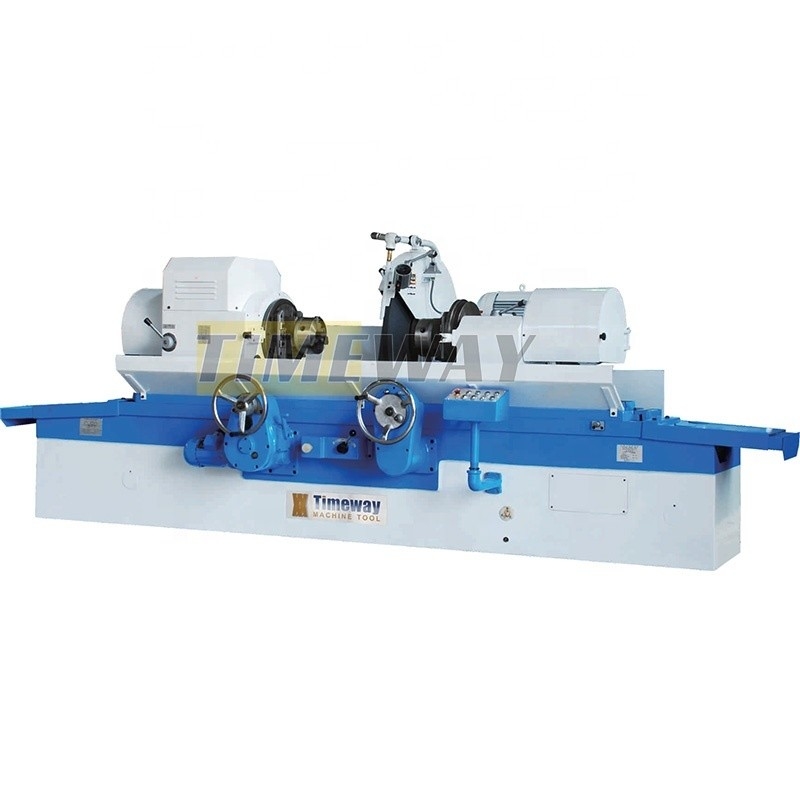

High Precision Grinding Machine 220/380V Voltage For Industry Crankshaft Grinder
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $37,888.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 900x32x305 Mm |
| Voltage: | 220/380V | Dimension(L*W*H): | 4166*2037*1584 Mm |
| Weight (KG): | 6000 | Power (kW): | 9.82 Kw |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Argentina, France, Romania, Australia, South Africa, Morocco, Egypt, Russia, Turkey, Kazakhstan, Peru | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing | Name: | Crankshaft Grinder |
| Model: | MQ8260Ax16 | Function: | Grinding Flywheel |
| Max. Work Weight: | 120 Kg | Center Height: | 300 Mm |
| Max. Cross Movement: | 185 Mm | Max. Work Swing Dia./ Max. Length: | 580*1600 Mm |
| Grinding Wheel Size: | 900*32*305 Mm | Machine Dimensions (L*W*H): | 4166*2037*1584 Mm |
| Machine Weight: | 6000 Kg | Port: | China Port |
Product Description
Products Description
Specification | Unit | MQ8260Ax16 | MQ8260Ax18 | MQ8260Ax20 |
Max. work swing dia. x Max. length | mm | 580x1600 | 580x1800 | 580x2000 |
Max. swing diameter over table | mm | 580 | 580 | 580 |
Work dia. ground with steady rest | mm | 30-100 | 30-100 | 50-120 |
Throw of crankshaft | mm | 110 | 110 | 120 |
Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 |
Max. work length ground: between centers | mm | 1600 | 1800 | 2000 |
Max. work weight | mm | 120 | 120 | 150 |
Center height | m/s | 300 | 300 | 300 |
Work speed | mm | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 |
Max. cross movement | mm/r | 185 | 185 | 185 |
Wheel-head rapid approach & withdrawal | mm/r | 100 | 100 | 100 |
Wheel feed per turn of cross feed handwheel | mm | 1 | 1 | 1 |
Per grad of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 |
Wheel spindle speed | rpm | 740, 890 | 740, 890 | 740, 890 |
Wheel peripheral speed | m/s | 25.6-35 | 25.6-35 | 25.6-35 |
Grinding wheel size | mm | 900x32x305 | 900x32x305 | 900x32x305 |
Table travel per turn of handwheel coarse | mm/r | 5.88 | 5.88 | 5.88 |
Table travel per turn of handwheel fine | mm/r | 1.68 | 1.68 | 1.68 |
Table swivel (taper 18/100) | ° | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
Table swivel per grad of scale(taper 1:50) | ° | 1°, taper 1/100 | 1°, taper 1/100 | 1°, taper 1/100 |
Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 |
Machine dimensions (LxWxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4900x2037x1584 |
Machine weight | kg | 6000 | 6200 | 7000 |
Ovality (new standard) | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.01 | 0.01 |
Roughness (external) | um | Ra0.32 | Ra0.32 | Ra0.32 |
Roughness (end) | um | Ra0.63 | Ra0.63 | Ra0.63 |
* 3-jaw chuck * Wheel adapter * Grinding wheels & wheel extractor * Steady rest * Driving dog
* Wheel dresser * Wheel balancing arbor * Vertical aligning stand * Horizontal aligning stand
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
