406mm Grinding Length Saddle Moving Type Hydraulic Surface Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,668.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 406 | Wheel Size(mm): | 813 |
| Surface Roughness(μm): | 0.32 μm | Table Size(mm): | 406x813 |
| Table Travel (X) (mm): | 910 | Table Travel (Y) (mm): | 450 |
| Year: | 2023 | Voltage: | As Customer's Required |
| Dimension(L*W*H): | 360x220x225cm | Weight (KG): | 3800 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Indonesia, Nigeria, France, Australia, Viet Nam, Egypt, Morocco, South Africa, Turkey, South Korea, Canada, Russia, Malaysia, Philippines, Tajikistan, Uzbekistan, Brazil, United Kingdom, Peru, Ukraine, Chile, Pakistan, United States |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Building Material Shops |
| Grinding Wheel Size: | 350x40x127mm | Distance From Spindle To Table: | 580mm |
| Loading Capacity: | 500kg | Longitudinal Travel: | 910mm |
| Cross Travel: | 450mm | Table Cross Micro Feed Rate: | 0-1000mm/min |
| Wheelhead Vertical Rapid Feed Speed: | 0-1000mm/min | Wheelhead Vertical Micro Feed Rate: | 0.005mm/gra |
| Spindle Speed: | 1450rpm | Packing Size: | 3600x2200x2250mm |
Product Description
Products Description
Features:
1.SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000. 2. Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
3. SG-CNC2 model: Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw; X-axis drove by hydraulic.
4. SG-CNC3 model: X/Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw.
5. Precision grind spindle with preload high precision angular ball bearing and drive V3 motor, runs in maintenance-free, low vibration, and no noise.
6. Elaborately-designed closed safe guard with safety-switch, not only have good appearance but also safety operating field.

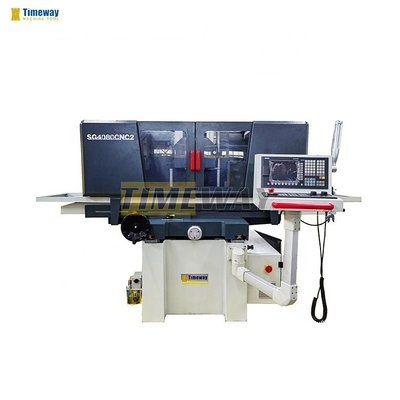

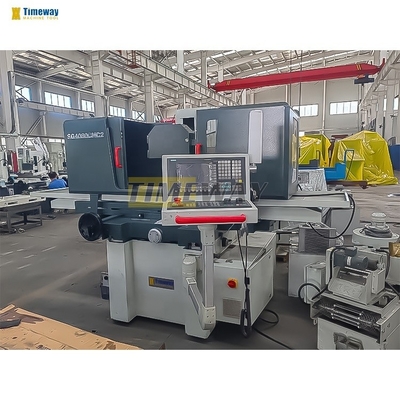

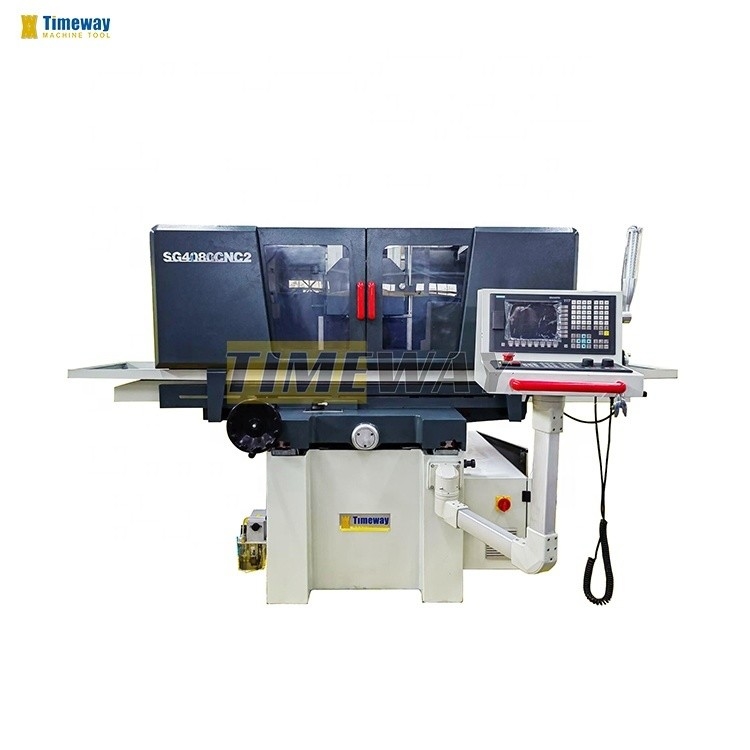

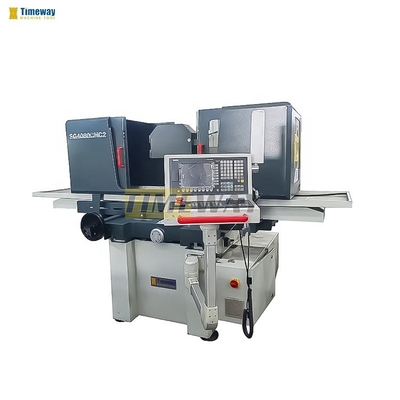

Specification | Unit | SG-4080CNC2 |
Table size | mm | 406x813 |
Electro magnetic chuck size | mm | 400x800 |
Table cross travel | mm | 910 |
Table longitudinal travel | mm | 450 |
Distance from spindle to table | mm | 580 |
Loading capacity (include chuck) | kg | 500 |
Table longitudinal feed speed | m/min | 5-25 |
Table cross rapid feed speed | mm/min | 0-1000 |
Table cross micro feed rate | mm/gra | 0.005 |
Wheelhead vertical rapid feed speed | mm/min | 0-1000 |
Wheelhead vertical micro feed rate | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 4 |
Machine weight | kg | 3800 |
Floor space (LxW) | mm | 4500x2400 |
Packing size (LxWxH) | mm | 3600x2200x2250 |
· Electronic handwheel · Closed safe guard · Work lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication system · Tool box&tools | · Diamond pen · Balancing stand · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
