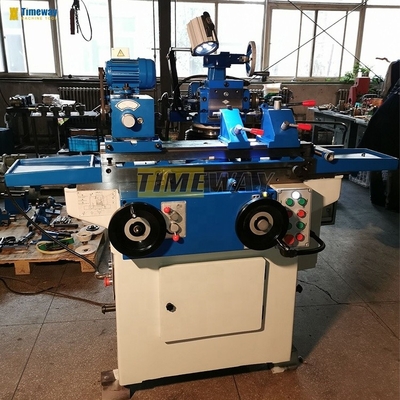

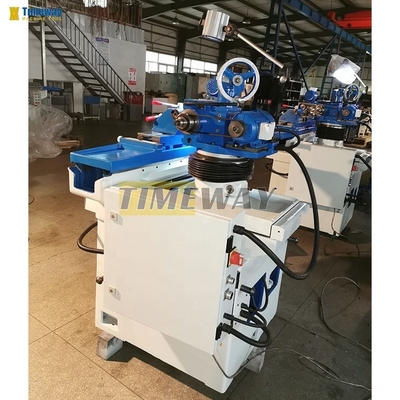

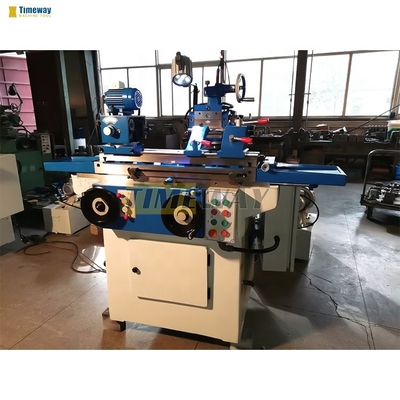

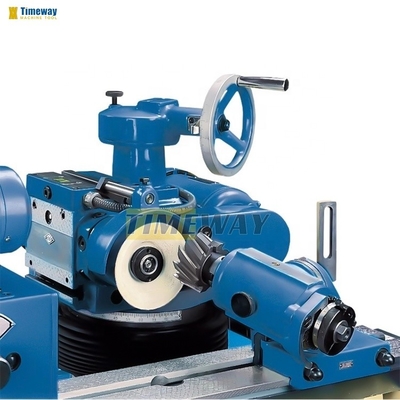

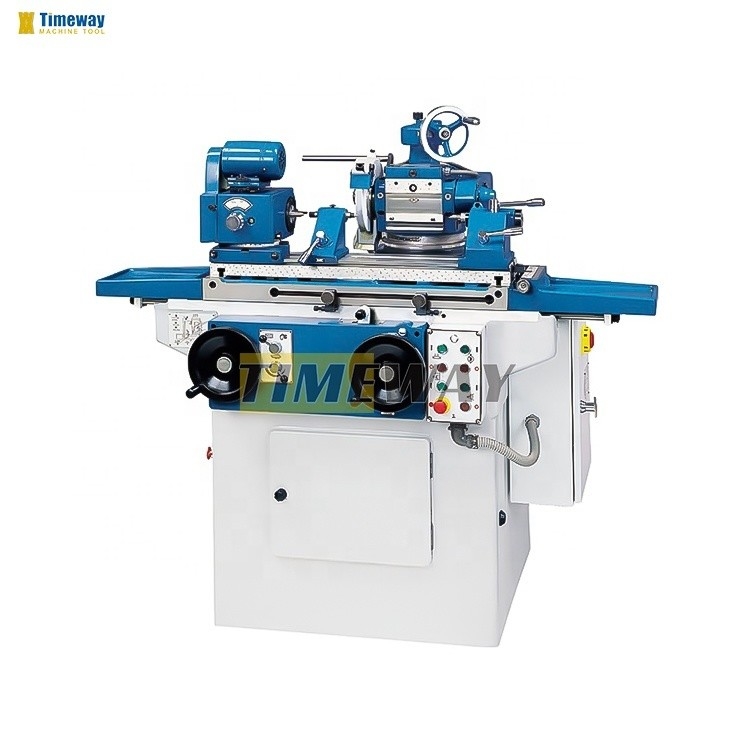

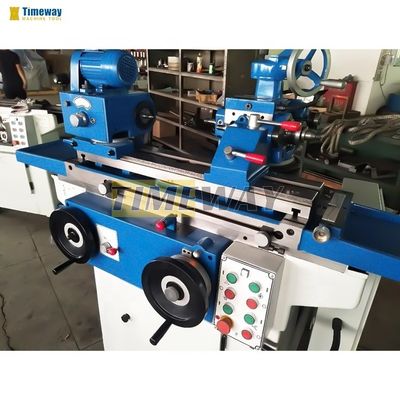

Versatile 2MA9125 Grinding Machine with 200x500mm Grinding Wheel Size Manufactured
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,860.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Multi-use Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 200x500 |
| Year: | 2023 | Voltage: | Customized |
| Dimension(L*W*H): | 1520x1220x163mm | Weight (KG): | 1780 |
| Power (kW): | 2.995 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, Viet Nam, Kenya, Australia, Japan, Spain, Egypt, Russia, Turkey, Peru, Chile |
| Applicable Industries: | Construction Works | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Grinding Wheel Size: | 200x500mm | Loading Capacity: | 10kg |
| After-sales Service Provided: | Online Support | Application: | Metal Processing |
| Model: | 2MA9125 | Machine Type: | Manual |
| Max. Grinding Length: | 500mm | COLOR: | Customized Optional |
| Packing Size: | 1520x1220x1630mm | Port: | China Port |
Product Description
Products Description
Specification | Unit | 2MA9125 |
Max. swing dia. over table | mm | 250 |
Max. workpiece length | mm | 500 |
Size for surface grinding | mm | 300x125 |
Size for cutter grinding | mm | 200x500 |
Max. weight of workpiece | kg | 10 |
Workhead spindle speeds | rpm | 60,90,120,175,235,345 |
Workhead swivel | º | ±90º |
Max. traverse of the wheelhead-vertical/cross | mm | 250/200 |
Wheelhead spindle speeds | rpm | 2500 |
Speed of wheelhead up-down travel | mm/min | 280 |
Internal grinding spindle speed | rpm | 13500 |
Longitudinal table, hand control | mm | 480 |
Table traverse speed | m/min | 7 |
Max. swivel of table | º | ±45º~-30º |
Circularity | mm | External: 0.0015 Internal: 0.0025 |
Roughness | um | Ra0.63 |
Packing size (LxWxH) | mm | 1520x1133x1173 |
· Coolant equipment · Internal grinding wheelhead · Extended grinding wheel spindle · Grinding wheel · 3-jaw chuck · Half centre · Driving dogs · Vee-belt · Wheel dresser without diamond · Wheel pullers · Operation manual (English) | · Dust collector · Center gauge · Universal wheel dresser · Tool grinding head · Rectangular magnetic chuck · Permanent magnet chuck |
