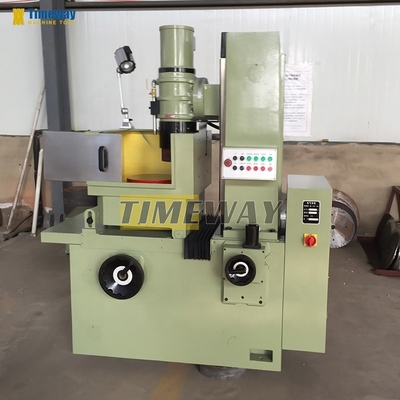

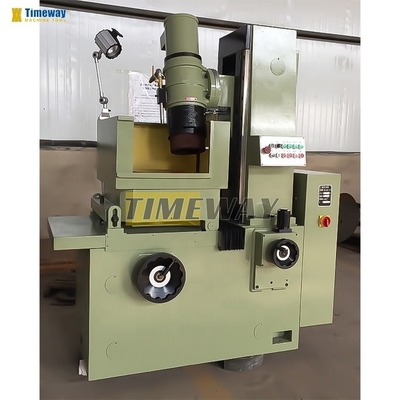

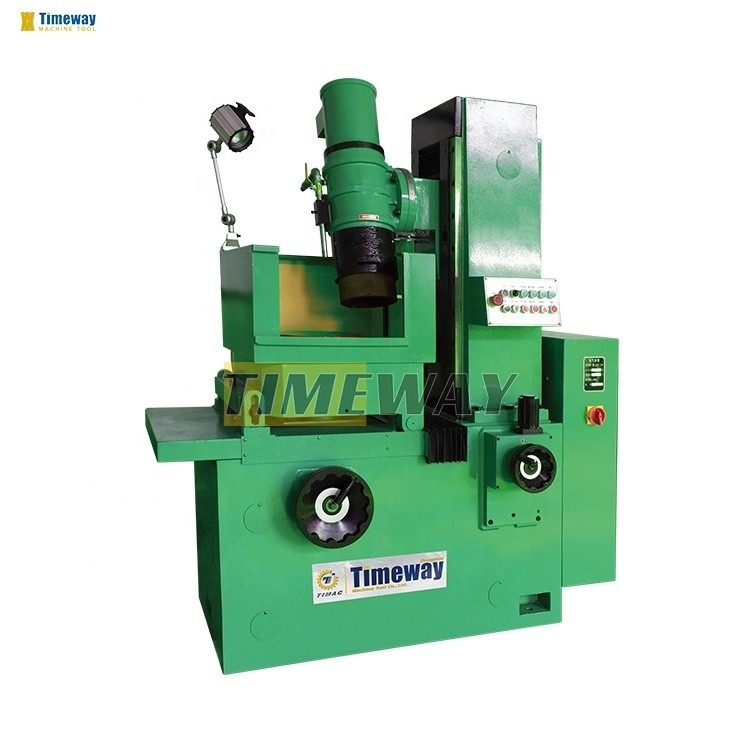

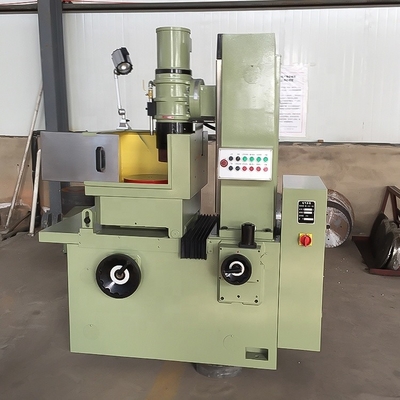

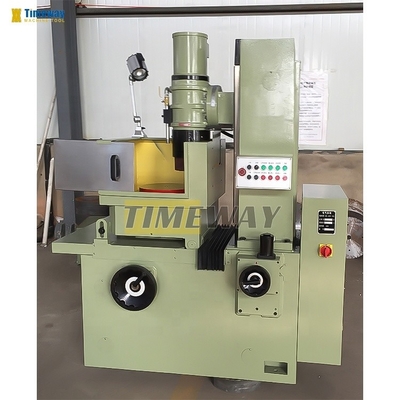

VSG-320A Vertical Spindle Rotary Surface Grinding Machine for Metal Processing Output
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,530.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Vertical Spindle Rotary Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 150x70x32 |
| Year: | 2023 | Voltage: | Customized |
| Dimension(L*W*H): | 1000x1050x1620mm | Weight (KG): | 880 |
| Power (kW): | 3 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, Viet Nam, Kenya, Australia, Japan, Spain, Egypt, Russia, Turkey, Peru, Chile |
| Applicable Industries: | Construction Works | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Grinding Wheel Size: | 150x70x32mm | Loading Capacity: | 10kg |
| After-sales Service Provided: | Online Support | Application: | Metal Processing |
| Model: | VSG-320A | Machine Type: | Manual |
| Max. Grinding Area: | 320x100mm | COLOR: | Customized Optional |
| Packing Size: | 1000x1050x1620mm | Port: | China Port |
Product Description
Products Description
Specification | Unit | VSG-320A |
Max. grinding size | mm | 320x200 |
Worktable rotary dia. | mm | 320 |
Distance from table center to grinding head center | mm | 0-60 |
Max. distance from lower end surface of wheel to table | mm | 160 |
Worktable speed | r/min | 46 |
Wheelhead spindle speed | r/min | 2850-3000 |
Whealhead rapid moving speed | mm/min | 70 |
Grinding head adjust angle | º | ±18 |
Grinding wheel size | mm | 150x70x31.5 |
Max. weight of workpiece | kg | 40 |
Wheel head motor power | kw | 4 |
Worktable rotary motor | kw | 0.25 |
Coolant motor | kw | 0.06 |
Total motor power | º | ±45º~-30º |
Machine weight | kg | 1700 |
Packing size (LxWxH) | mm | 1250x800x1900 |
