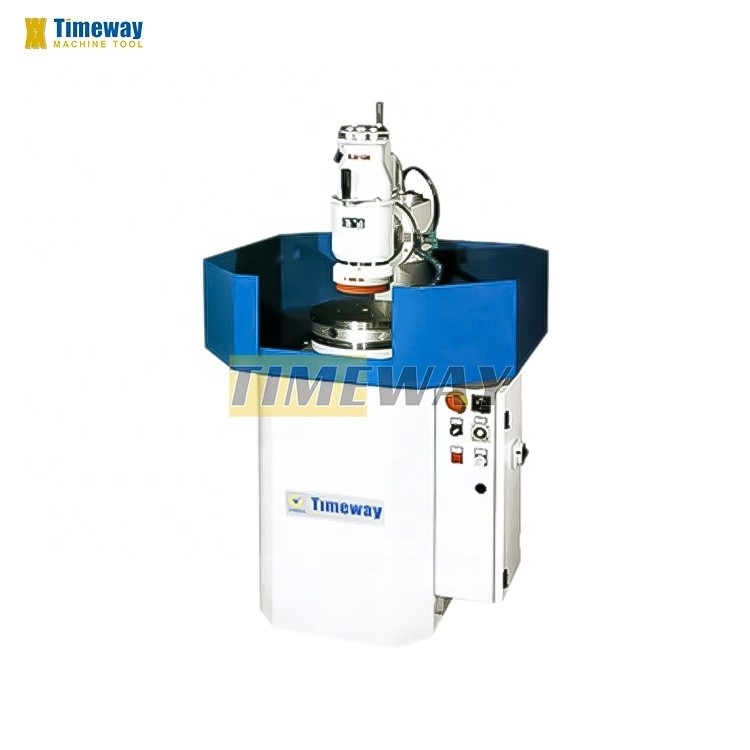

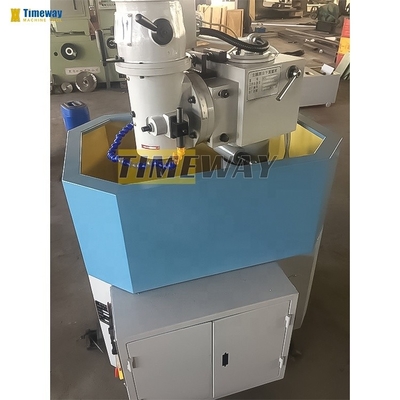

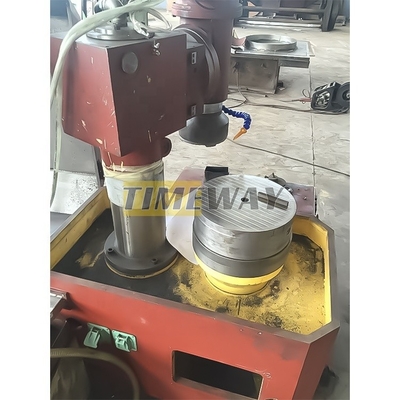

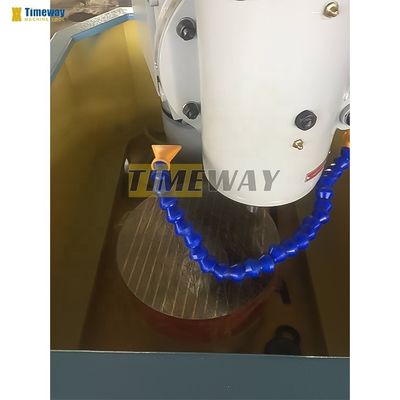

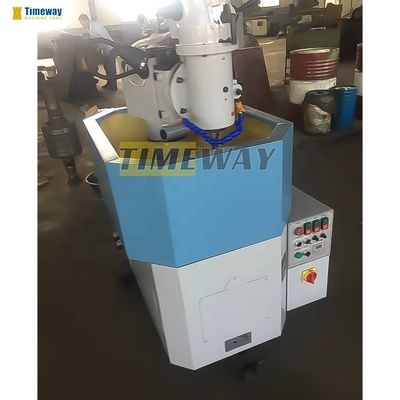

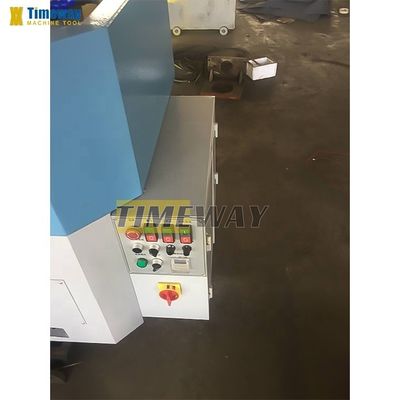

2023 Vertical Spindle Rotary Surface Grinding Machine for Smooth and Accurate Results
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,230.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Vertical Spindle Rotary Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 150x70x32 |
| Year: | 2023 | Voltage: | Customized |
| Dimension(L*W*H): | 1000x1050x1620mm | Weight (KG): | 880 |
| Power (kW): | 3 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, Viet Nam, Kenya, Australia, Japan, Spain, Egypt, Russia, Turkey, Peru, Chile |
| Applicable Industries: | Construction Works | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Grinding Wheel Size: | 150x70x32mm | Loading Capacity: | 10kg |
| After-sales Service Provided: | Online Support | Application: | Metal Processing |
| Model: | VSG-320A | Machine Type: | Manual |
| Max. Grinding Area: | 320x100mm | COLOR: | Customized Optional |
| Packing Size: | 1000x1050x1620mm | Port: | China Port |
Product Description
Products Description
Specification | Unit | VSG-320B |
Max. grinding size | mm | 320x100 |
Worktable rotary dia. | mm | 320 |
Distance from table center to grinding head center | mm | 0-60 |
Max. distance from lower end surface of wheel to table | mm | 80 |
Worktable speed | r/min | 46 |
Wheelhead spindle speed | r/min | 4200 |
Grinding head adjust angle | º | ±5 |
Grinding wheel size | mm | 150x70x32 |
Max. weight of workpiece | kg | 40 |
Wheel head motor power | kw | 3 |
Worktable rotary motor | kw | 0.25 |
Coolant motor | kw | 0.06 |
Total motor power | kw | 4.6 |
Machine weight | kg | 880 |
Packing size (LxWxH) | mm | 1000x1050x1620 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
