500x150x305mm Wheel Size Centerless Grinding Machine for Fast and Accurate Results
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,690.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Centerless Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 500x150x305 |
| Year: | 2023 | Voltage: | Customized |
| Dimension(L*W*H): | 1950x1580x1485mm | Weight (KG): | 3500 |
| Power (kW): | 17 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, Viet Nam, Kenya, Australia, Japan, Spain, Egypt, Russia, Turkey, Peru, Chile |
| Applicable Industries: | Construction Works | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Grinding Wheel Size: | 500x150x305mm | Grinding Dia.: | 5-80mm |
| After-sales Service Provided: | Online Support | Application: | Metal Processing |
| Model: | PCG-80B | Machine Type: | Manual |
| Max. Grinding Speed: | 1300rpm | COLOR: | Customized Optional |
| Packing Size: | 1950x1580x1485mm | Port: | China Port |
Product Description
Products Description

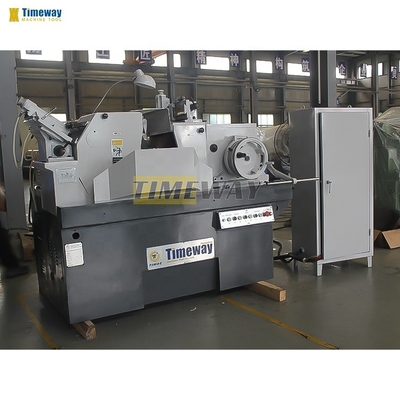

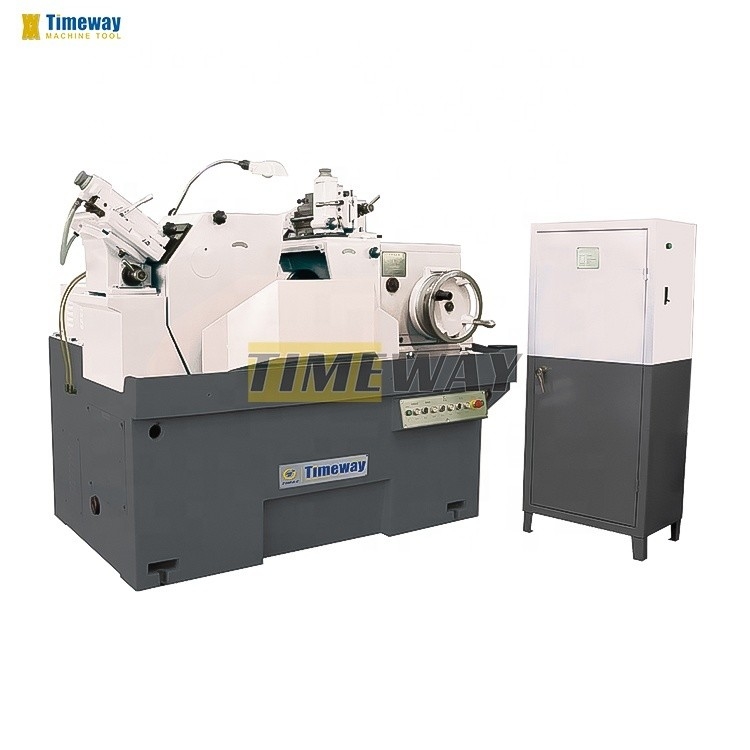

Centerless Grinding Machine
Specification | Unit | PCG-80B |
Grinding dia. | mm | 5-80 |
Grinding length | mm | 180 |
Grinding wheel size | mm | 500x150x305 |
Regulating wheel size | mm | 300x150x127 |
Grinding wheel speed | rpm | 1300 |
Swiveling angle of regulating wheel | ° | Vertical:-2°~ 5° Horizontal: 0°~ 3° |
Feed amount per division of feed handwheel | mm | 0.005 |
Feed amount per division of dresser | mm | 0.01 |
Height from centerline of gri.wheel & reg.wheel to worktest | mm | 210 |
Total motor power | kw | 17 |
Roundness | mm | 0.002 |
Machine weight | kg | 3500 |
Packing size (LxWxH) | mm | 1950x1580x1485 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
