SG-2050AH Saddle Moving Type Grinder The Ideal Solution for Precision Surface Grinding
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAU |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1130 | Surface Roughness(μm): | 3.2 μm |
| Year: | 2023 | Voltage: | 220/380V |
| Weight (KG): | 3200 | Power (kW): | 4 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | India, Mexico, Egypt, South Korea, Thailand, Brazil, Saudi Arabia, United States | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Pressure Vessel, Pump |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Machinery Repair Shops, Building Material Shops | Type: | Surface Grinding Machine |
| Product Name: | Surface Grinder Grinding Machine | Name: | Grinder Machine |
| Application: | Stainless Steel | Usage: | Surface Polishing |
| Keywords: | Precision Surface Grinder Machine | Function: | Grinding Material |
| Machine Type: | Suface Grinding Machine | Processing: | Surface Grinder Surface Grinding Machine |
| Port: | China Port | ||
Product Description
Products Description

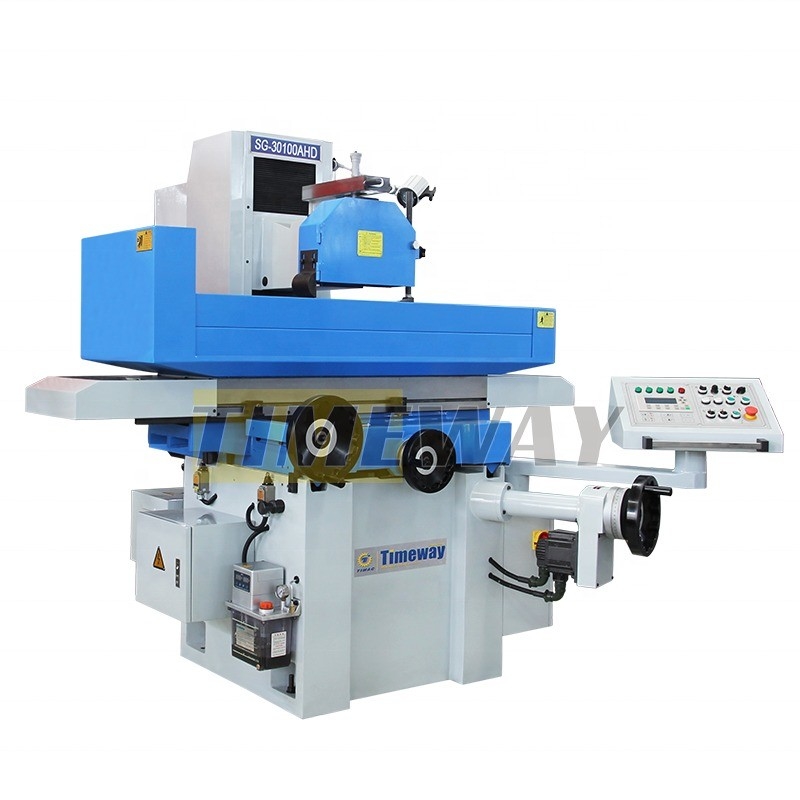

Specification | Unit | SG-30100AH SG-30100AHR SG-30100AHD | SG-4080AH SG-4080AHR SG-4080AHD | SG-40100AH SG-40100AHR SG-40100AHD |
Table size | mm | 305x1020 | 406x813 | 406x1020 |
Electro magnetic chuck size | mm | 300x1000 | 400x800 | 400x1000 |
Distance from spindle to table | mm | 580 | 580 | 580 |
Table cross travel | mm | 340 | 450 | 450 |
Table longitudinal travel | mm | 1130 | 910 | 1130 |
Loading capacity (include chuck) | kg | 400 | 500 | 600 |
Longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 | 0.1-8 | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 | 990 | 990 |
Table cross feed of handwheel | mm/gra | 0.02 | 0.02 | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 | 1450/1750 | 1450/1750 |
Grinding wheel size | mm | 350x40x127 | 350x40x127 | 350x40x127 |
Main motor power | kw | 4 | 4 | 4 |
Machine dimensions (LxWxH) | cm | 440x220x190 | 360x240x190 | 440x240x190 |
Package dimensions (LxWxH) | cm | 295x222x221 | 285x227x221 | 295x227x221 |
Machine weight | kg | 3200 | 3400 | 3700 |
Operation manual (English edition) | Balancing stand |
Working lamp | Magnetic separator |
Balancing arbor | Paper filter |
Standard grinding wheel | Oil tank guard |
Magnetic chuck | Dust exhaust |
Built-in magnetic chuck controller | Parallel wheel dresser |
Coolant tank | 2 axis digital readout |
Wheel flange and extractor | Extra wheel flange |
Wheel dresser stand | |
Leveling wedge and screw | |
Lubrication system | |
Tool box & tools |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
