Versatile G200H Universal Cylindrical Grinder Perfect for Manual Machining Operations
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 8~200 |
| Year: | 2023 | Voltage: | 220V/380V110V/440V |
| Dimension(L*W*H): | 2500 (3000) X1600x1500 | Weight (KG): | 2500 |
| Power (kW): | 2500 (3000) X1600x1500 | Warranty: | 1 Year |
| Key Selling Points: | Multiplication | Showroom Location: | India, Russia |
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gear, Gearbox |
| After-sales Service Provided: | Online Support | Product Name: | Grinding Machine |
| Application: | Grinding Knife | Name: | Surface Grinder |
| Usage: | Grind 2-flute | Keywords: | Blade Shapening Machine |
| Function: | Grinding Material | Key Words: | Universal Drill Grinder |
| Machine Type: | Manual | Color: | Customized Optional |
| Port: | China Port | ||
Product Description
Products Description

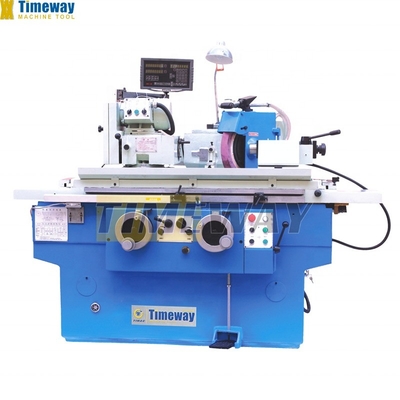

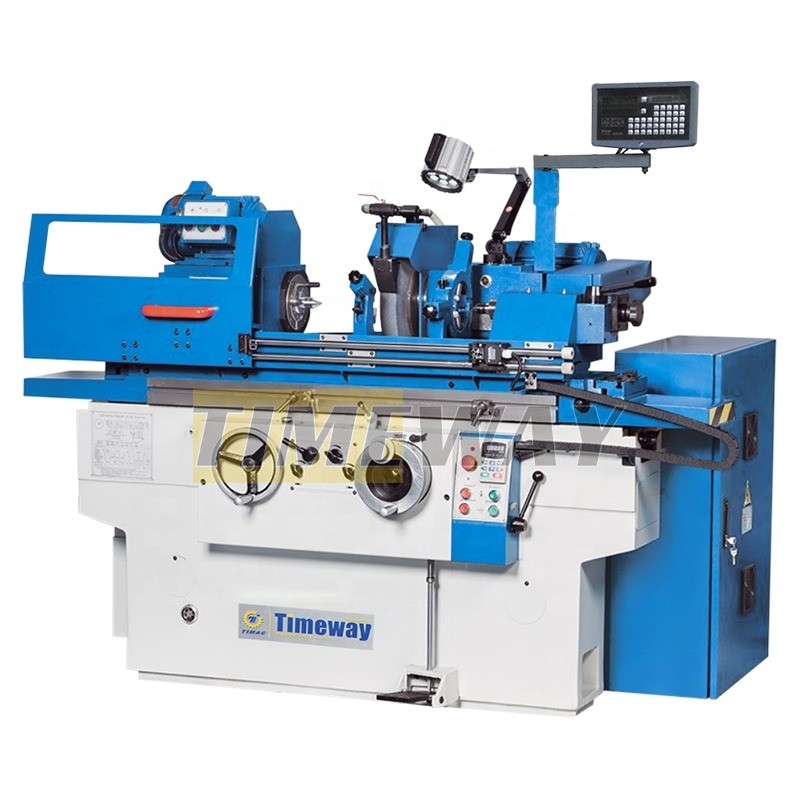

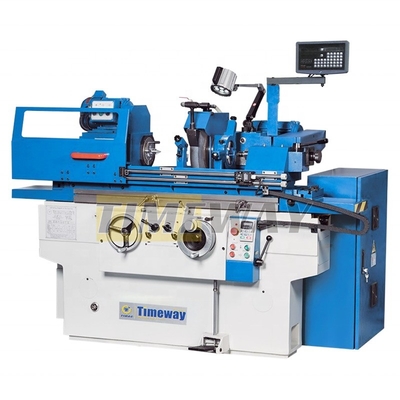

Universal Cylindrical Grinder
Specification | Unit | G-200H | UG-200H |
Dia. ground (O.D) | mm | 8~200 | 8-200 |
Dia. ground (I.D) | mm | - | 13-100 |
Center height | mm | 135 | 135 |
Workhead spindle speed | rpm | 25~380 | 25~380 |
Max. table travel | mm | 650 (950) | 650 (950) |
Table hydraulic feed speed | m/min | 0.1~4 | 0.1~4 |
Loading capacity | kg | 50 | 50 |
Grinding length (O.D/I.D) | mm | 500/- (800/-) | 500/125 (800/125) |
Table swivel angle | ° | -5~+9° (-3~+7°) | -5~+9° (-3~+7°) |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 |
External wheel size | mm | Max: Ф400x50xФ203; Min: Ф280x50xФ203 | Max: Ф400x50xФ203; Min: Ф280x50xФ203 |
Internal grinding spindle speed | rpm | - | 16000 |
Workhead and tailstock center | - | MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Grinding wheel | Wheel balancing stand |
Grinding wheel flange | Radius dresser |
Three jaw chuck (UG-200H) | Close type center rest |
Driving dog | Digital readout |
Arbor for internal grinding UG-200H) | Paper filter |
Grinding wheel dresser | Magnetic separator |
Wheel balancing arbor | |
Open type steady rest | |
Dead centers | |
Frequency inverter | |
Coolant system | |
Work lamp | |
Leveling wedge | |
Operation manual (English edition) |
