200mm CNC Grinding Machine with Roughness 0.32um and High Precision Grinding Diameter
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 800 | Max. Length Of Workpiece (mm): | 850 |
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400*50*203 | Wheel Speed (rpm): | 2130 |
| Table Travel (X) (mm): | 650 | Table Travel (Y) (mm): | 500 |
| Roundness(mm): | 0.0015 | Cylindricity (mm): | 0.0015 |
| Surface Roughness(μm): | 0.32 | Year: | 2020 |
| Voltage: | 380v | Dimension(L*W*H): | 2600*2000*2220 |
| Weight (KG): | 2500 | Power (kW): | 10.825 |
| Key Selling Points: | Energy Saving | Warranty: | 1 Year |
| Showroom Location: | India, Mexico, France, Australia, Japan, Spain, Russia, Turkey, Italy | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | New Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, PLC | Condition: | New |
| CNC Or Not: | CNC | Dia. Ground (O.D): | 8-200mm |
| Dia. Ground (I.D): | 13-100 | Distance Between Centers: | 550/850mm |
| Roughness: | 0.32um | Product Name: | CNC Cylindrical Grinder Machine |
| Type: | Cylindrical Grinding Machine | Keyword: | Gringding |
| Model: | GK-200H/UGK-200H | COLOR: | Customizable |
| Precision: | High Precision | Port: | China Port |
Product Description
Product Description

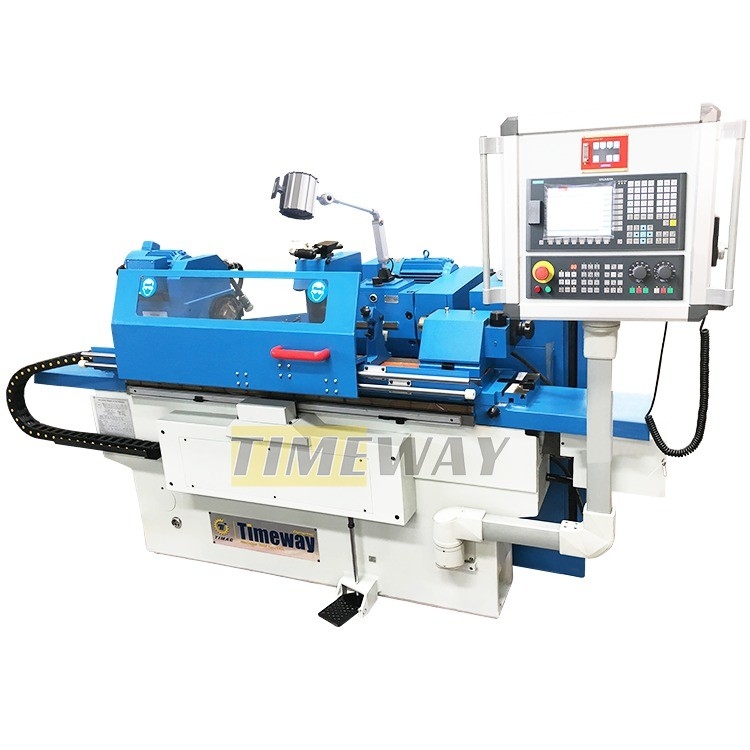

Cylindrical Grinding Machine

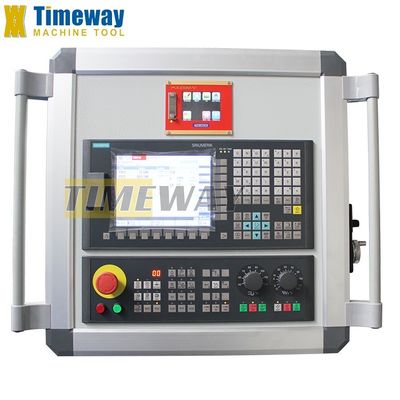

*The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
Technical Parameter
SPECIFICATION | UNIT | GK-200H | UGK-200H |
Grinding Diameter(Outer) | mm | 8-200 | 8-200 |
Grinding Diameter(Inner) | mm | - | 13-100 |
Grinding Length | mm | 500/800 | 500/800 |
Max. Length of Workpiece | mm | 550/850 | 550/850 |
Loading Capacity | kg | 50 | 50 |
Center Height | mm | 135 | 135 |
Grinding Wheel Size | mm | 400*50*203 | 400*50*203 |
Grinding Spindle Speed | rpm | 2130 | 2130 |
X-axis min. feed unit | mm | 0.001 | 0.001 |
Z-axis min. feed unit | mm | 0.001 | 0.001 |
Roundness | um | 1.5 | 1.5 |
Roughness | um | 0.32 | 0.32 |

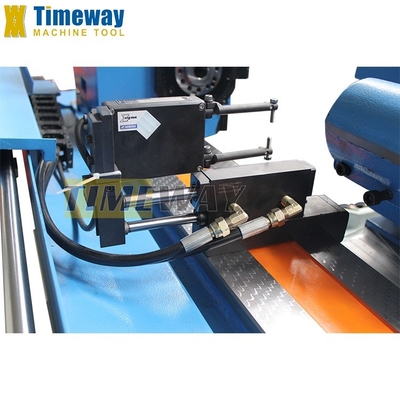

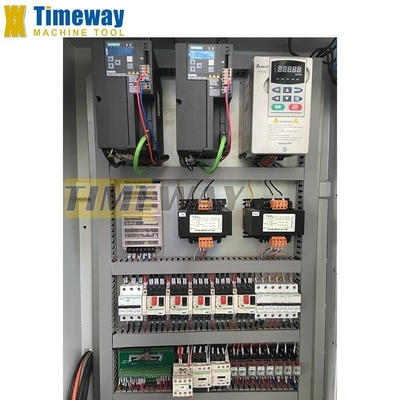

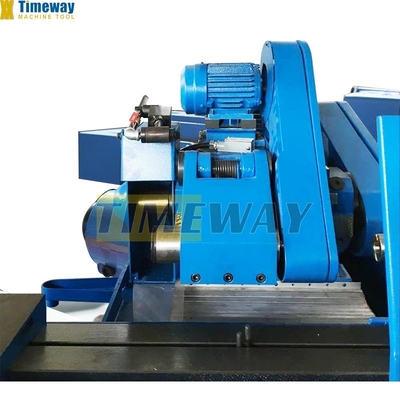

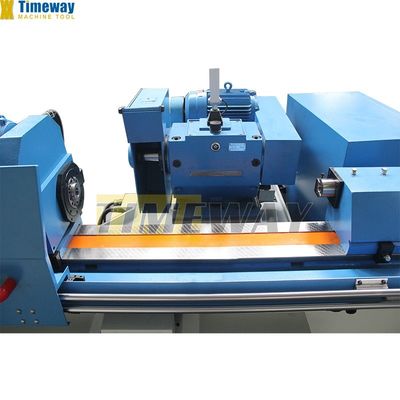

Detailed Images
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
Packaging & Shipping
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
