GK-200H Cylindrical Grinder Machine on for High Precision Grinding of Dia. 8-200mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 400*50*203 |
| Year: | 2022 | Dimension(L*W*H): | 760x740x730 |
| Weight (KG): | 2500 | Power (kW): | 10.825 |
| Warranty: | 1 Year | Key Selling Points: | Multiplication |
| Showroom Location: | India, Russia | Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Gear, Gearbox | Dia. To Be Ground: | 8~200mm |
| Max. Length To Be Ground: | 500mm | Center Height: | 135mm |
| Distance Between Centers: | 550mm | Headstock Center: | MT4 |
| Tailstock Center: | MT4 | Max. Workpiece Weight To Be Ground: | 50kg |
| Wheel Size: | 400x50x203mm | Wheel Peripheral Speed: | 38 (hydrodynamic-hydrostatic 45m/s) |
| Keywords: | Cylindrical Grinder Machine | ||
Product Description
Product Description

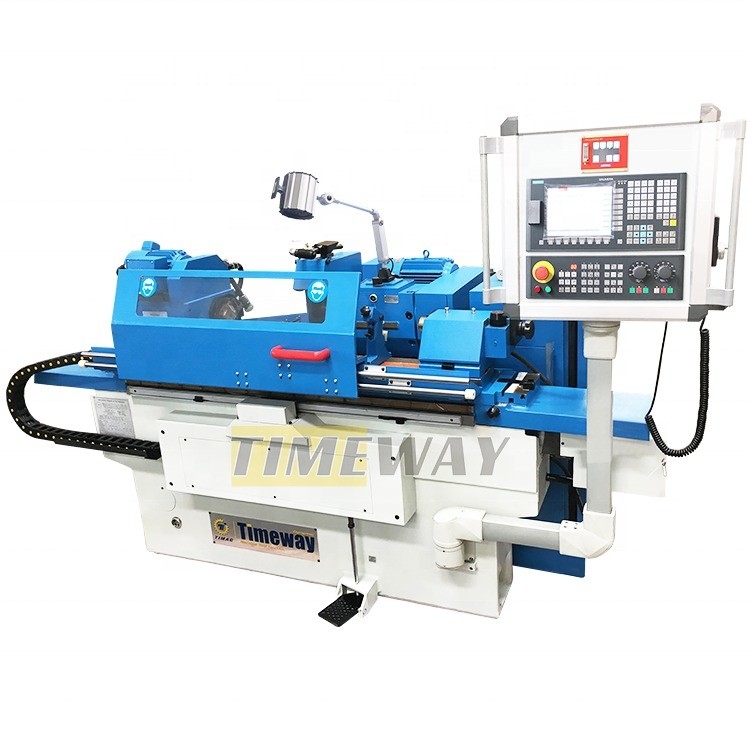

GK-200H Universal Cylindrical Grinder
Specification
Specifications | Unit | GK-200Hx500 | GK-200Hx800 |
Dia. to be ground | mm | 8~200 | 8~200 |
Max. length to be ground | mm | 500 | 800 |
Center height | mm | 135 | 135 |
Distance between centers | mm | 550 | 850 |
Headstock center | - | MT4 | MT4 |
Tailstock center | - | MT4 | MT4 |
Max. workpiece weight to be ground | kg | 50 | 50 |
Wheel size | mm | Ф400x50xФ203 | Ф400x50xФ203 |
Wheel peripheral speed | m/s | 38 (hydrodynamic-hydrostatic 45m/s) | 38 (hydrodynamic-hydrostatic 45m/s) |
Wheel spindle rotation speed | rpm | 2130 | 2130 |
Min. pulse amount in X-axis | mm | 0.001 | 0.001 |
Min. pulse amount in Z-axis | mm | 0.001 | 0.001 |
Total motor power | kw | 10.825 | 10.825 |
Longitudinal servo motor | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Transverse servo motor | kw | 1.6 (6N.m) | 1.6 (6N.m) |
Roundness | um | 1.5 | 1.5 |
Surface roughness | um | Ra0.32 | Ra0.32 |
Unifomity of dia.in longitudinal section | um | 5 | 5 |
Accessories
Standard accessories:
Grinding wheel
Grinding wheel flange
Three jaw chuck (UG-200H)
Driving dog
Arbor for internal grinding UG-200H)
Grinding wheel dresser
Wheel balancing arbor
Open type steady rest
Dead centers
Frequency inverter
Coolant system
Work lamp
Leveling wedge
Operation manual (English edition)
Grinding wheel flange
Three jaw chuck (UG-200H)
Driving dog
Arbor for internal grinding UG-200H)
Grinding wheel dresser
Wheel balancing arbor
Open type steady rest
Dead centers
Frequency inverter
Coolant system
Work lamp
Leveling wedge
Operation manual (English edition)
Optional accessories:
Wheel balancing stand
Radius dresser
Close type center rest
Digital readout
Paper filter
Magnetic separator
Close type center rest
Digital readout
Paper filter
Magnetic separator
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world. Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6. 12 months quality warranty; 7. Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
