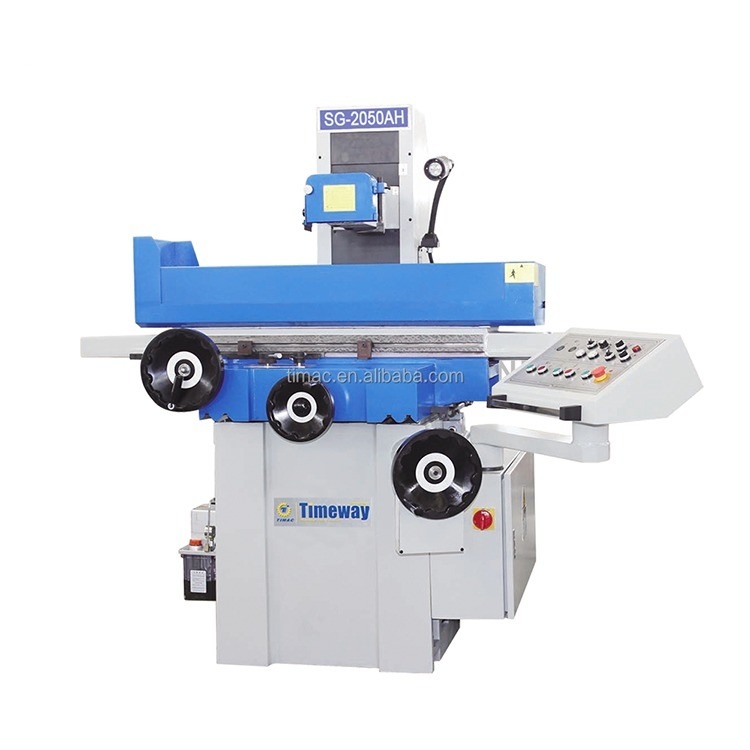

510mm Table Travel CNC Grinder SG-2050CNC Saddle Moving Type Surface Grinding Machine
Product Details:
| Place of Origin: | Henan, China, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $168,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 450 | Wheel Size(mm): | 200 |
| Surface Roughness(μm): | 0.65 μm | Table Size(mm): | 200*460 |
| Table Travel (X) (mm): | 238 | Table Travel (Y) (mm): | 510 |
| Weight (KG): | 1600 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | India, Canada, Russia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox | Applicable Industries: | Manufacturing Plant, Construction Works , Machinery Repair Shops |
| Name: | Surface Grinder | Keywords: | Grinder |
| Machine Type: | Cnc Grinder | Model: | SG-2050CNC |
| Precision: | High Precision | Color: | Customized |
| Distance From Spindle To Table: | 450 | Table Cross Travel: | 238 |
| Table Longitudinal Travel: | 510 | Port: | China Port |
Product Description
Product Description
* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
Specification
Specification | Unit | SG-2050AH SG-2050AHR SG-2050AHD | SG-2550AH SG-2550AHR SG-2550AHD |
Table size | mm | 200x508 | 254x508 |
Electro magnetic chuck size | mm | 200x460 | 250x500 |
Distance from spindle to table | mm | 450 | 450 |
Table cross travel | mm | 240 | 275 |
Table longitudinal travel | mm | 560 | 560 |
Loading capacity (include chuck) | kg | 180 | 180 |
Longitudinal feed speed | m/min | 5-25 | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 | 990 |
Table cross feed of handwheel | mm/gra | 0.02 | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 2850/3450 | 2850/3450 |
Grinding wheel size | mm | 200x20x31.75 | 200x20x31.75 |
Main motor power | kw | 2.2 | 2.2 |
Machine dimensions (LxWxH) | cm | 230x160x168 | 230x160x168 |
Package dimensions (LxWxH) | cm | 200x210x215 | 200x210x215 |
Machine weight | kg | 1650 | 1800 |

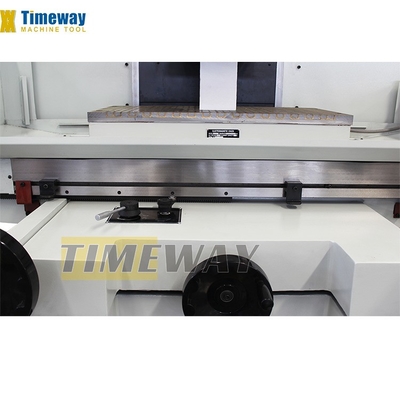

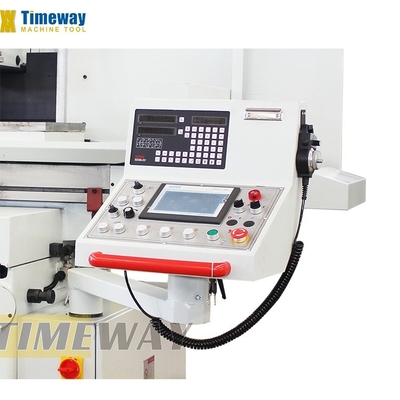

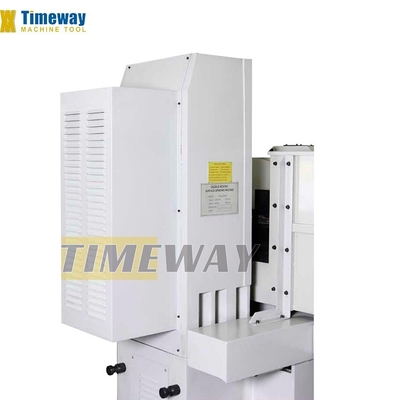

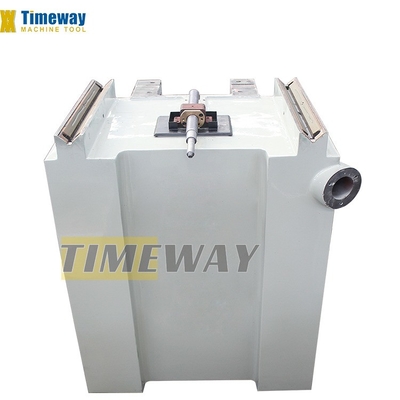

Detailed Images

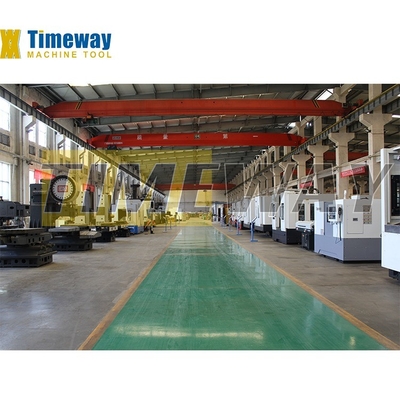

Company Profile
