Highly 800*1250mm Cantilever Moving Type Surface Grinder for Customer Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,820.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1250 | Wheel Size(mm): | 450 |
| Surface Roughness(μm): | 0.63 μm | Table Size(mm): | 800*1250 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 1700 |
| Year: | 2023 | Voltage: | Optional |
| Dimension(L*W*H): | 3540*2350*2730 | Weight (KG): | 14000 |
| Power (kW): | 28.75 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | India, France, Japan, Australia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops |
| Type: | Surface Grinding Machine | Machine Type: | Suface Grinding Machine |
| Product Name: | Surface Grinder Grinding Machine | Name: | Semi-automatic Surface Grinder |
| Max. Grinding Length: | 1250 | Precision: | High Precision |
| Application: | Face Grinding | Color: | Custmized |
| Processing: | Surface Grinder Surface Grinding Machine | Model: | GS-800A |
Product Description
Product Description

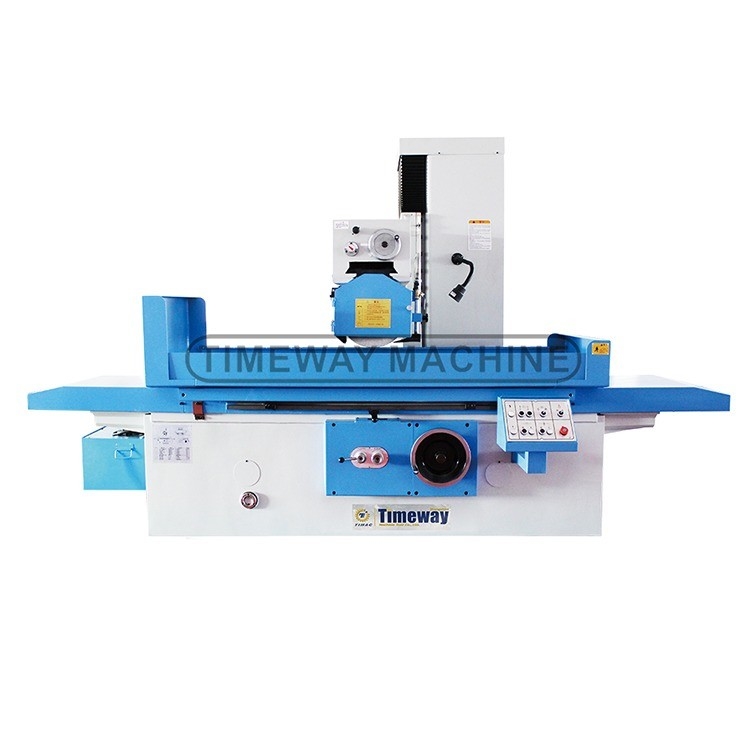

Cantilever Moving Type Surface Grinder
* The machine is designed with wheelhead moving type, reasonable structure and nice-looking.
* The machine is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding vertical surface of workpiece by grinding wheel side-face. The width of the machine table is 300/320/400mm, the effective length is 1000/1600/2200/3000/4500mm, and max. grinding height is 400mm, the max. heighten is to 800/1200mm.
The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures .
* The longitudinal movement of the table is hydraulic driven. The transverse motion of the grinding head on the drag plate is hydraulic driven, and it can also be operated manually, with hand and hydraulic interlock device. The drag plate (along with the grinding head) is mounted on the column. The upper and lower vertical movement have the function of manual feed and maneuver (fast lifting), and interlocking devices.
* The longitudinal movement of the table is hydraulic driven. The transverse motion of the grinding head on the drag plate is hydraulic driven, and it can also be operated manually, with hand and hydraulic interlock device. The drag plate (along with the grinding head) is mounted on the column. The upper and lower vertical movement have the function of manual feed and maneuver (fast lifting), and interlocking devices.
Specification
Specification | Unit | GS-500A | GS-630A | GS-800A |
Table width | mm | 500 | 630 | 800 |
Table length | mm | 1000/1600/2200/3000/4500 | 1250/1600/2200/3000/4500 | 1250/1600/2200/3000 |
Max. grinding width | mm | 500 | 630 | 800 |
Max. grinding length | mm | 1000/1600/2200/3000/4500 | 1250/1600/2200/3000/4500 | 1250/1600/2200/3000 |
Max. grinding height | mm | 500 800 1200 | 500 800 1200 | 600 |
Distance from spindle to table | mm | 700 1000 1400 | 700 1000 1400 | 825 |
Longitudinal feed speed | m/min | 3-27 | 3-27 | 3-25 |
T-slot (No./width) | mm | 3/22 | 3/22 | 3/28 |
Cross continuous feed speed | m/min | 0.5-4.5 | 0.5-4.5 | 0.5-2.5 |
Cross intermittent feed rate | mm/str | 3-30 | 3-30 | 3-20 |
Cross feed of handwheel | mm/gra | 0.01 | 0.01 | 0.175 |
Vertical rapid feed speed | mm/min | 400 | 400 | 600 |
Vertical feed of handwheel | mm/gra | 0.005 | 0.005 | 0.005 |
Main motor power | kw | 7.5 | 7.5 | 15 |
Spindle speed | rpm | 1440 | 1440 | 1460 |
Total power | kw | 12.25/13.75/15.75 | 13.75/15.75 | 28 |
Loading capacity (include chuck) | kg | 700/1240/1410/1930/2895 | 1010/1290/1780/2430/3650 | 2000/2000/2472/2900/3500 |
Grinding wheel size | mm | 400x40x203 | 400x40x203 | 450x63x203 |
Machine length | mm | 3110/4250/5750/7880/12170 | 3300/5320/5750/7880/12170 | 3540/4500/6250/7310/9000 |
Machine width | mm | 1900 | 1900 | 2350/3600 |
Machine height | mm | 2420 2720 3120 | 2420 2720 3120 | 2730/2850 |

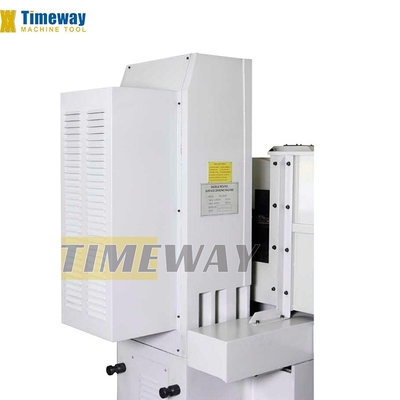

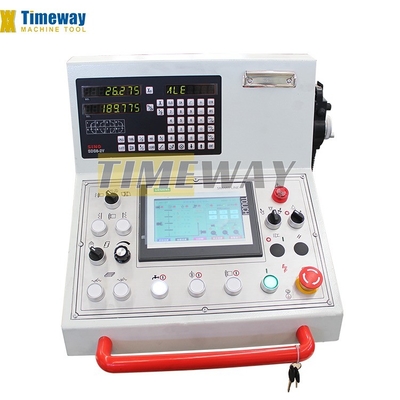

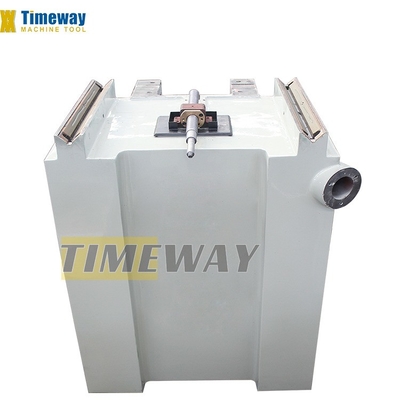

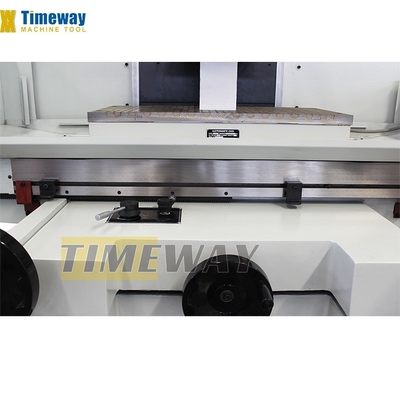

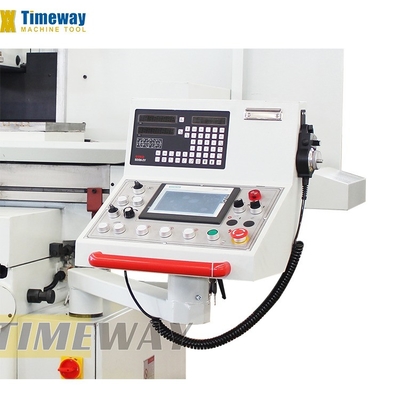

Detailed Images
