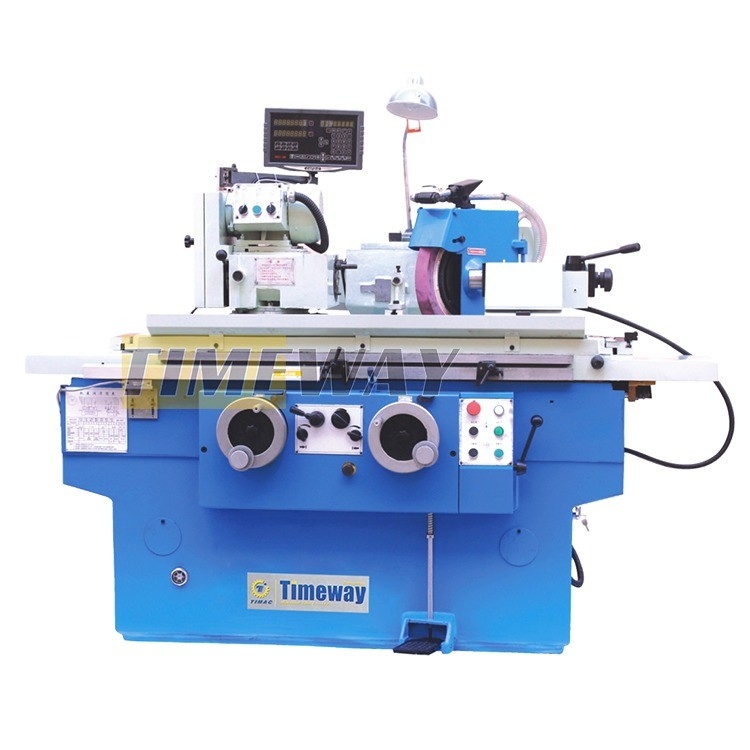

* G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200H comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series.
 |
Max Length Ground O.D 8-200mm Universal Cylindrical Grinding Machine with Features
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,200.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 500 | Max. Length Of Workpiece (mm): | 800 |
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400*50*203 | Wheel Speed (rpm): | 16000 |
| Surface Roughness(μm): | 0.63 | Dimension(L*W*H): | 2500*1600*1500 |
| Weight (KG): | 2500 | Power (kW): | 5.625 |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Showroom Location: | Australia, South Africa, Malaysia, Kyrgyzstan, Colombia, Tajikistan, Peru, Ukraine, Algeria, Chile | Applicable Industries: | Manufacturing Plant, Construction Works , Retail, Printing Shops |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear | Condition: | New |
| CNC Or Not: | Normal | Product Name: | Cylinder Grinding Machine |
| Machine Type: | Cylindrical Griding Machine | Model: | UG-200H |
| MAX. TRAVEL: | 25-380RPM | COLOR: | Customized Optional |
| Max Length Ground(O.D): | 8-200mm | Workhead Spindle Speed: | 25-380rpm |
| Center Height: | 135mm | Loading Capacity: | 50kg |
| Machine Weight: | 2500kg | ||
Product Description
Products Description
Features:
Specification
Specification | Unit | G-200H | UG-200H |
Dia. ground (O.D) | mm | 8~200 | 8-200 |
Dia. ground (I.D) | mm | - | 13-100 |
Center height | mm | 135 | 135 |
Workhead spindle speed | rpm | 25~380 | 25~380 |
Max. table travel | mm | 650 (950) | 650 (950) |
Table hydraulic feed speed | m/min | 0.1~4 | 0.1~4 |
Loading capacity | kg | 50 | 50 |
Grinding length (O.D/I.D) | mm | 500/- (800/-) | 500/125 (800/125) |
Table swivel angle | ° | -5~+9° (-3~+7°) | -5~+9° (-3~+7°) |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 |
External wheel size | mm | Max: Ф400x50xФ203; Min: Ф280x50xФ203 | Max: Ф400x50xФ203; Min: Ф280x50xФ203 |
Internal grinding spindle speed | rpm | - | 16000 |
Workhead and tailstock center | - | MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Roundness (O.D/I.D) | um | 1.5 | 1.5/2.5 |
Roughness (O.D/I.D) | um | Ra0.32 | Ra0.32/Ra0.63 |
Unifomity of dia.in longitudinal section (O.D/I.D) | um | 5 | 5/8 |
Machine dimemsions (LxWxH) | mm | 2500 (3000) x1600x1500 | 2500 (3000) x1600x1500 |
Machine weight | kg | 2500 (3000) | 2500 (3000) |
Accessories
· Grinding wheel, · Grinding wheel flange, · Three jaw chuck (UG), · Driving dog, ·Arbor for internal grinding (UG), · Grinding wheel dresser, · Wheel balancing arbor, · Open type steady rest, · Dead centers, · Frequency inverter, · Coolant system, · Work lamp, · Leveling wedge, · Operation manual (English edition). | · Wheel balancing stand · Radius dresser · Close type center rest · Digital readout · Paper filter · Magnetic separator |
Detailed Images

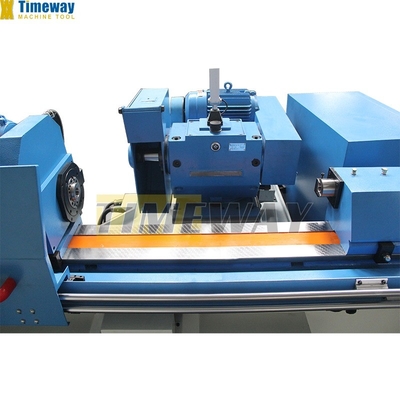

Grinding spindle with segmented high- precision bearings, adjustable and low maintenance. Grinding spindle adopts oil- bath lubration and coolant (N2 oil).
Workhead spindle speeds are infinitely variable and driven frequency motor and interver, can be easily adjusted and optimized during the machining process.
Workhead spindle speeds are infinitely variable and driven frequency motor and interver, can be easily adjusted and optimized during the machining process.

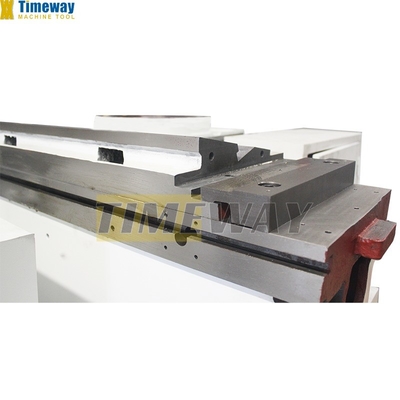

Table can swivel certain angle for grinding conical cylinder.
Standard tailstock can opearte either manual by handle or hydraulic control by foot pedal, sometime hand wheel on the end of tailstock can adjustable clamping force.
External grinding for rotating part
Grinding head can be rotated 180° to change from inside to outside grinding.

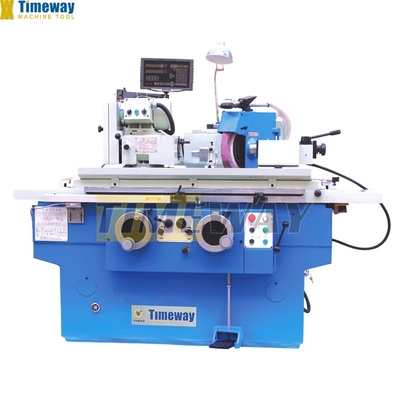

The centralized operator panel and reasonably distributed action
handles are very clear and user-
friendly on the front of the machine.
handles are very clear and user-
friendly on the front of the machine.
Packaging & Shipping
These pictures are our packaging diagrams for your reference. In order to ensure the integrity of the goods you receive, we pack them tightly and in wooden boxes.
Company Video
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：

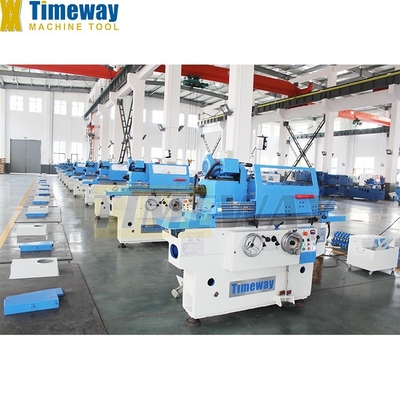

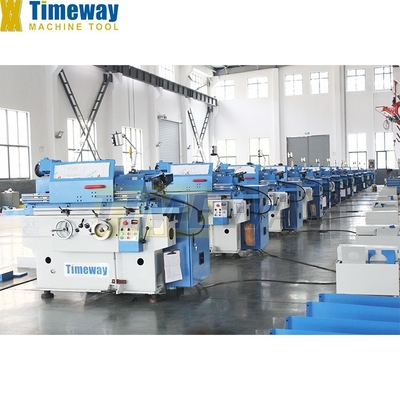

Factory Profile：
