The one-piece bed is made of high quality cast iron, rails surface hardened and precision grinding, high stability and high rigidity.Times testify: The well designed structure ensure excellent processing capability.
The base table slide way with TF material and been precision manual scraped; The wheel head slide way is V-flat rails with liner-roller, high precision and low motion friction.
 |

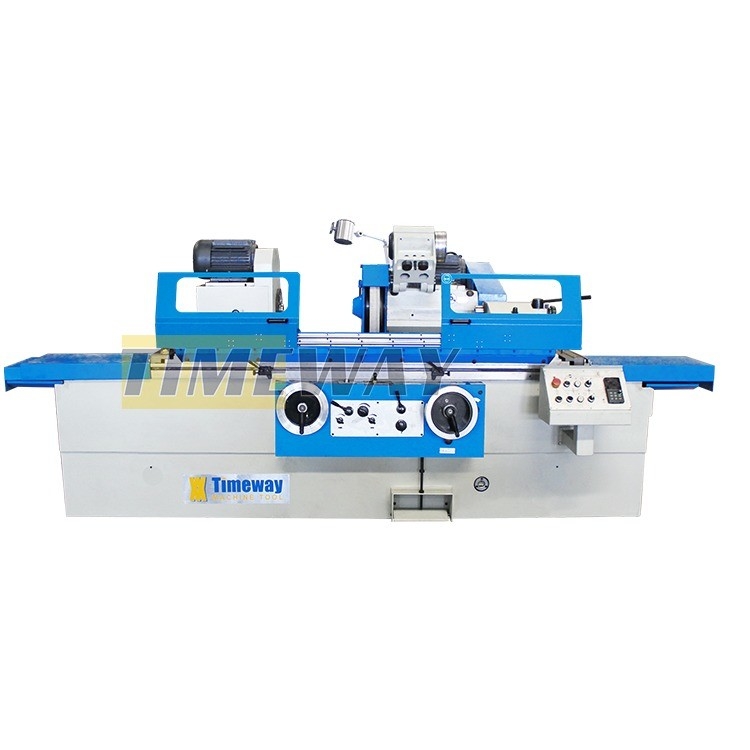

500*50*203mm Wheel Size Universal Cylindrical Grinding Machine for 200mm Outer Grinding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 0 |
|---|---|---|---|
| Grinding Length(mm): | 500 | Max. Length Of Workpiece (mm): | 750 |
| Max. Weight Of Workpiece(kg): | 100 | Center Height (mm): | 135 |
| Wheel Size(mm): | 500*50*203 | Wheel Speed (rpm): | 1335 |
| Surface Roughness(μm): | 0 | Dimension(L*W*H): | 235*203*205mm |
| Weight (KG): | 3000 | Power (kW): | 5.5 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Showroom Location: | Russia, Canada, Turkey, Colombia, Kazakhstan, Tajikistan, Brazil | Applicable Industries: | Manufacturing Plant, Food & Beverage Shops, Building Material Shops, Printing Shops |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear | Condition: | New |
| CNC Or Not: | Normal | Product Name: | Universal Cylindrical Grinding Machine |
| Machine Type: | Cylindrical Griding Machine | Model: | G-200 |
| COLOR: | Customized Optional | After Warranty Service: | 1year |
| Max Length Ground(O.D): | 500/750mm | Packing Size: | 235/275*203*205mm |
| Workhead Motor Power: | 1.1KW | Loading Capacity: | 100KG |
| Motor: | 5.5KW | ||
Product Description
Products Description
External-internal High Universal Cylindrical Grinding Machine
* G-series cylindrical grinder is suitable for grinding outer cylindrical and conical surface; UG-series universal cylindrical grinder is suitable for grinding outer and inner cylindrical and conical surface.
* For UG-series, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer conical surface.
* For UG-series, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be mounted on the tailstock.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be mounted on the tailstock.
Specification
Specification | Unit | G-200 | UG-200 |
Distance between centers | mm | 500/750 | 500/750 |
Center height | mm | 135 | 135 |
Dia. ground (O.D) | mm | 5-200 | 5-200 |
Dia. ground (I.D) | mm | - | 25-100 |
Grinding length (O.D) | mm | 500/750 | 500/750 |
Grinding length (I.D) | mm | - | 125 |
Loading capacity | kg | 100 | 100 |
Workhead swivel angle | ° | - | ﹢90° |
Workhead spindle taper | - | MT4 | MT4 |
Workhead spindle speed | rpm | 25-380 (stepless) | 25-380 (stepless) |
Wheelhead spindle speed | rpm | 1335 | 1670 |
Wheelhead rapid feed travel | mm | 50 | 50 |
Wheelhead cross travel | mm | 205 | 205 |
Wheelhead swivel angle | ° | - | ±10° |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.01/0.0025 | 0.01/0.0025 |
External grinding wheel size | mm | 500x50x203 | 400x50x203 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 |
Internal grinding spindle speed | rpm | - | 10000/15000 |
Internal grinding wheel size | mm | - | Max: 50x25x13, Min: 17x20x6 |
Table feed of handwheel per rev. | mm | 6 | 6 |
Table swivel angle (CW) | ° | 3° | 3° |
Table swivel angle (CCW) | ° | 9° /8° | 9° /8° |
Table longitudinal feed speed | m/min | 0.1-4 | 0.1-4 |
Tailstock quill taper | - | MT4 | MT4 |
Tailstock quill travel | mm | 30 | 30 |
External grinding motor power | kw | 5.5 | 4 |
Internal grinding motor power | kw | - | 1.1 |
Workhead motor power | kw | 1.1 | 1.1 |
Gross weight | kg | 3000/3100 | 3000/3200 |
Packing size (LxWxH) | cm | 235/275x203x205 | 235/275x203x205 |
Accessories
· Measuring bridge plate · Open steady rest · Wheel flange · Wheel extractor · Balancing arbor · Grinding wheel · Coolant tank · Carbide tripped center · Driving dog · Wheel dresser (Without diamond pen) · Work lamp · Levelling wedge · Internal grinding attachment (UG) · 3-jaw chuck (UG) · Extension shaft (UG) · Internal grinding wheel (UG) · Full set tools · Operation manual (English edition) | · Balancing stand · Radius wheel dresser · Close steady rest · Digital readout · Paper filter · Magnetic separator · Center grinding attachment · End wheel dresser |
Detailed Images

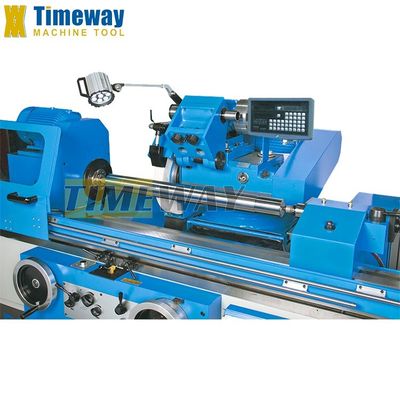

External grinding for rotating part

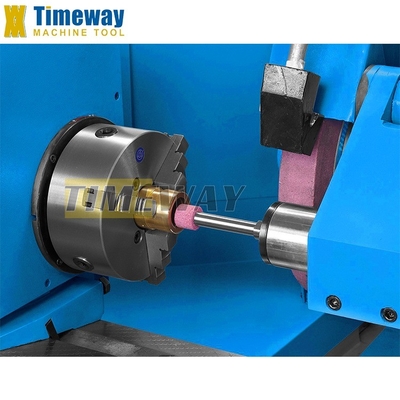

Comes complete with removable internal grinding device.

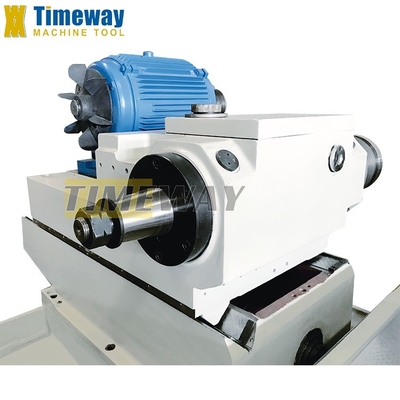

Wheelhead spindle is supported by bimetal shell bearing, which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
Grinding head can be rotated 180° to change from inside to outside grinding.

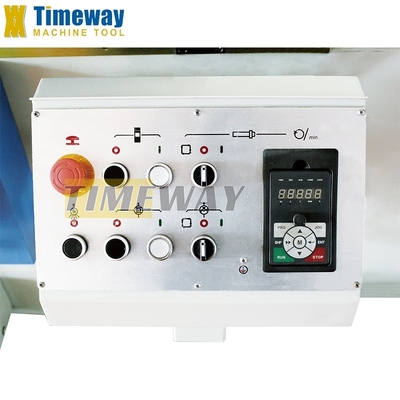

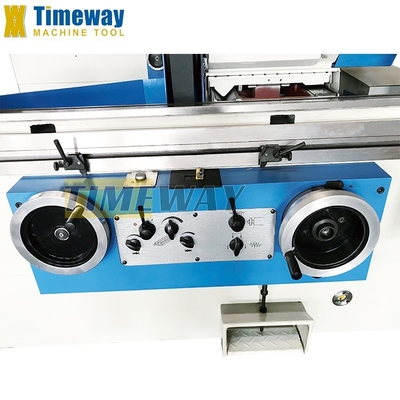

The centralized operator panel and reasonably distributed action
handles are very clear and user-
friendly on the front of the machine.
handles are very clear and user-
friendly on the front of the machine.
