CNC Surface Gantry Grinding Machine for High Precision Grinding 6000mm Grinding Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Grinding Length(mm): | 6000 |
|---|---|---|---|
| Surface Roughness(μm): | 0 μm | Table Travel (X) (mm): | 1250 |
| Table Travel (Y) (mm): | 6000 | Weight (KG): | 18000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Showroom Location: | Indonesia, Canada, Russia | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Applicable Industries: | Manufacturing Plant | Table Width: | 1250mm |
| Table Length: | 2/3/4/6/8m | Gantry Width: | 1700mm |
| Max. Grinding Width: | 1500mm | Max. Grinding Length: | 2000-8000mm |
| Max. Grinding Height: | 600/800/1000mm | Horizontal Spindle Speed: | 1050rpm |
| Vertical Wheelhead Motor Power: | 11/15kw | Horizontal Wheelhead Motor Power: | 22kw |
| Horizontal Grinding Wheel Size: | 500x100x203mm | ||
Product Description
Product Description

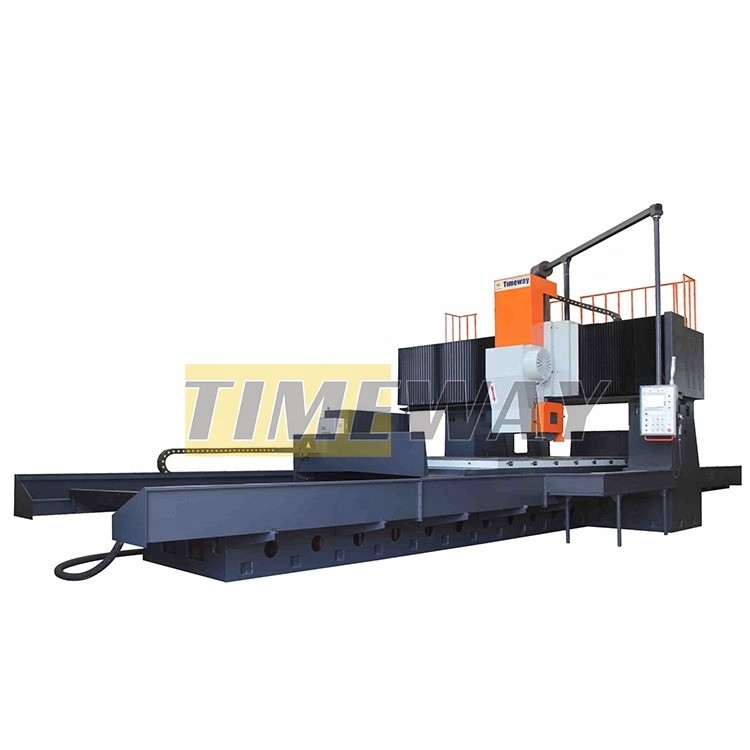

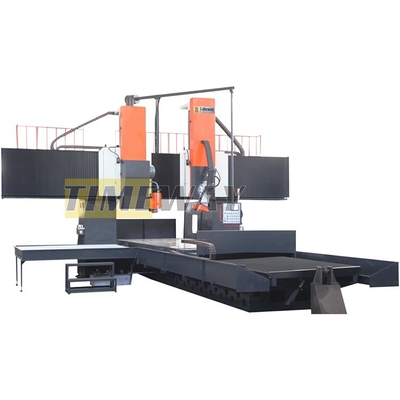

Gantry Surface Grinder
Features:
* The gantry surface grinder standard with a horizontal wheelhead, according to requirement, optional a vertical wheelhead. Single saddle and double saddles, Double saddle can realize vertical grinding head and horizontal grinding head without interference grinding.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* The machine adopts the gantry type layout, which is composed of double column, beam and bed frame.
* Beam with 60° oblique beam structure, mechanical performance is good, strong rigidity.
* The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance.
* The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise.
* Machine running reliable, cost-effective. Compact structure, small floor space and easy operation; high raliability as a working machine.
* High rigidity box casting structure and thermal symmetrical deformation structure.
* High rigidity, high precision hydro-dynamic and hydro-static spindle.
* Large feed amount, high efficency.
* Hydraulic system temperature rise is small, low energy consumption.
* Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
* Beam with 60° oblique beam structure, mechanical performance is good, strong rigidity.
* The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance.
* The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise.
* Machine running reliable, cost-effective. Compact structure, small floor space and easy operation; high raliability as a working machine.
* High rigidity box casting structure and thermal symmetrical deformation structure.
* High rigidity, high precision hydro-dynamic and hydro-static spindle.
* Large feed amount, high efficency.
* Hydraulic system temperature rise is small, low energy consumption.
* Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
Specification
Specification | Unit | DSG-1250A | DSG-1600A | DSG-2000A |
Table width | mm | 1250 | 1600 | 2000 |
Table length | m | 2/3/4/6/8 | 2/3/4/6/8 | 2/3/4/6/8 |
Gantry width | mm | 1700 | 2200 | 2600 |
Max. grinding width | mm | 1500 | 2000 | 2400 |
Max. grinding length | mm | 2000-8000 | 2000-8000 | 2000-8000 |
Max. grinding height | mm | 600/800/1000 | 600/800/1000 | 600/800/1000 |
Horizontal wheelhead intermittent feed rate | mm/str | 3-30 | 3-30 | 3-30 |
Horizontal wheelhead feed of MPG | mm | 0.005 | 0.005 | 0.005 |
Horizontal wheelhead motor power | kw | 22 | 22 | 22 |
Horizontal grinding wheel size | mm | 500x100x203 | 500x100x203 | 500x100x203 |
Horizontal spindle speed | rpm | 1050 | 1050 | 1050 |
Vertical wheelhead swivel angle | ° | ±110° | ±110° | ±110° |
Vertical wheelhead feed of MPG | mm | 0.005 | 0.005 | 0.005 |
Vertical wheelhead motor power | kw | 11/15 | 11/15 | 11/15 |
Vertical grinding wheel size | mm | 400x40x127 | 400x40x127 | 400x40x127 |
Vertical spindle speed | rpm | 1440 | 1440 | 1440 |
Accessories
Standard accessories:

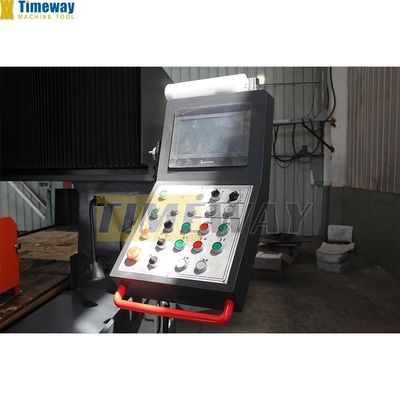

- LC+SMART auto. grinding controller
- Coolant tank
- Work lamp
- Balancing arbor
- Wheel flange and extractor
- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)
- Operation manual (English edition)
- Splashing guard
- Standard grinding wheel
- Leveling wedge and boltd
- Tools & tool-box
- Operation manual(English edition)
- Coolant tank
- Work lamp
- Balancing arbor
- Wheel flange and extractor
- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)
- Operation manual (English edition)
- Splashing guard
- Standard grinding wheel
- Leveling wedge and boltd
- Tools & tool-box
- Operation manual(English edition)
Optional accessories:
- Balancing stand
- Magnetic separator
- Paper filter
- Oil tank guard
- Electrical magnetic chuck
- Built-in magnetic chuck controller
- Parallel wheel dresser - 2 axis digital readout
- Extra wheel flange
- Magnetic separator
- Paper filter
- Oil tank guard
- Electrical magnetic chuck
- Built-in magnetic chuck controller
- Parallel wheel dresser - 2 axis digital readout
- Extra wheel flange
Detail Images
