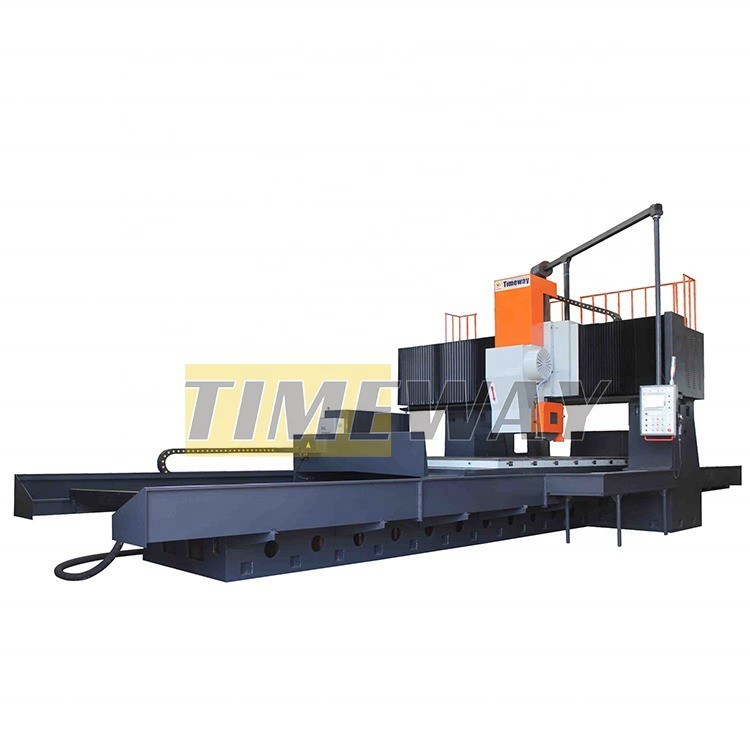

2000mm Grinding Length High Precision Gantry Surface Grinding Machine for Market
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $168,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Grinding Length(mm): | 2000 |
|---|---|---|---|
| Surface Roughness(μm): | 0.02 μm | Weight (KG): | 20000 |
| Power (kW): | 22 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Showroom Location: | Indonesia, France, Canada, Russia |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Applicable Industries: | Manufacturing Plant |
| Table Width: | 2000mm | Table Length: | 2/3/4/6/8m |
| Gantry Width: | 2600mm | Max. Grinding Width: | 2400mm |
| Max. Grinding Length: | 2000-8000mm | Max. Grinding Height: | 600/800/1000mm |
| Vertical Spindle Speed: | 1440rpm | Horizontal Wheelhead Feed Of MPG: | 0.005mm |
| Horizontal Wheelhead Motor Power: | 22kw | Horizontal Grinding Wheel Size: | 500x100x203mm |
| Port: | China Port | ||
Product Description
Product Description
Guideway Grinder
Features:
* The gantry surface grinder standard with a horizontal wheelhead, according to requirement, optional a vertical wheelhead.single saddle and double saddles, Double saddle can realize vertical grinding head and horizontal grinding head without interference grinding.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* The machine adopts the gantry type layout, which is composed of double column, beam and bed frame.
* Beam with 60° obliquebeam structure, mechanical performance is good, strong rigidity.
* The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance.
* The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise.
* Machine running reliable, cost-effective. Compact structure, small floor space and easy operation; high raliability as a working machine.
* High rigidity box casting structure and thermal symmetrical deformation structure.
* High rigidity, high precision hydro-dynamic and hydro-static spindle.
* Large feed amount, high efficency.
* Hydraulic system temperature rise is small, low energy consumption.
* Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
* Beam with 60° obliquebeam structure, mechanical performance is good, strong rigidity.
* The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance.
* The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise.
* Machine running reliable, cost-effective. Compact structure, small floor space and easy operation; high raliability as a working machine.
* High rigidity box casting structure and thermal symmetrical deformation structure.
* High rigidity, high precision hydro-dynamic and hydro-static spindle.
* Large feed amount, high efficency.
* Hydraulic system temperature rise is small, low energy consumption.
* Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
Specification
Specification | Unit | DSG-1250A | DSG-1600A | DSG-2000A |
Table width | mm | 1250 | 1600 | 2000 |
Table length | m | 2/3/4/6/8 | 2/3/4/6/8 | 2/3/4/6/8 |
Gantry width | mm | 1700 | 2200 | 2600 |
Max. grinding width | mm | 1500 | 2000 | 2400 |
Max. grinding length | mm | 2000-8000 | 2000-8000 | 2000-8000 |
Max. grinding height | mm | 600/800/1000 | 600/800/1000 | 600/800/1000 |
Horizontal wheelhead intermittent feed rate | mm/str | 3-30 | 3-30 | 3-30 |
Horizontal wheelhead feed of MPG | mm | 0.005 | 0.005 | 0.005 |
Horizontal wheelhead motor power | kw | 22 | 22 | 22 |
Horizontal grinding wheel size | mm | 500x100x203 | 500x100x203 | 500x100x203 |
Horizontal spindle speed | rpm | 1050 | 1050 | 1050 |
Vertical wheelhead swivel angle | ° | ±110° | ±110° | ±110° |
Vertical wheelhead feed of MPG | mm | 0.005 | 0.005 | 0.005 |
Vertical wheelhead motor power | kw | 11/15 | 11/15 | 11/15 |
Vertical grinding wheel size | mm | 400x40x127 | 400x40x127 | 400x40x127 |
Vertical spindle speed | rpm | 1440 | 1440 | 1440 |
Accessories
Standard accessories:
- LC+SMART auto. grinding controller
- Coolant tank
- Work lamp
- Balancing arbor
- Wheel flange and extractor
- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)
- Operation manual (English edition)
- Splashing guard
- Standard grinding wheel
- Leveling wedge and boltd
- Tools & tool-box
- Operation manual(English edition)
- Coolant tank
- Work lamp
- Balancing arbor
- Wheel flange and extractor
- Wheel dresser stand
- Y/Z axis electrical wheel(MPG)
- Operation manual (English edition)
- Splashing guard
- Standard grinding wheel
- Leveling wedge and boltd
- Tools & tool-box
- Operation manual(English edition)
Optional accessories:
- Balancing stand
- Magnetic separator
- Paper filter
- Oil tank guard
- Electrical magnetic chuck
- Built-in magnetic chuck controller
- Parallel wheel dresser - 2 axis digital readout
- Extra wheel flange
- Magnetic separator
- Paper filter
- Oil tank guard
- Electrical magnetic chuck
- Built-in magnetic chuck controller
- Parallel wheel dresser - 2 axis digital readout
- Extra wheel flange
Packing & Delivery

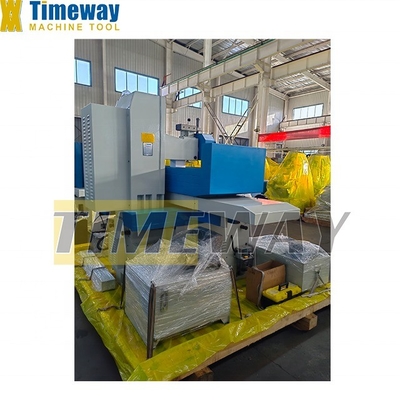

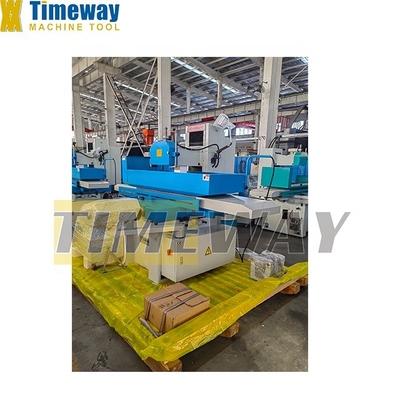

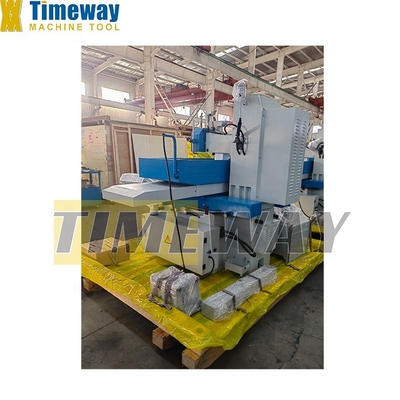

This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
