50kg Loading Capacity CNC Cylindrical Grinder with 100mm Inner Grinding Diameter
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 850 | Max. Length Of Workpiece (mm): | 850 |
| Weight (KG): | 2500 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Showroom Location: | Indonesia, France, Australia, Canada |
| Applicable Industries: | Construction Works , Retail | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox |
| Condition: | New | CNC Or Not: | Normal |
| Grinding Diameter(Outer): | 8-200mm | Grinding Diameter(Inner): | - |
| Grinding Length: | 500/800mm | Max. Length Of Workpiece: | 550/850mm |
| Loading Capacity: | 50kg | Center Height: | 135mm |
| Grinding Wheel Size: | 400*50*203mm | Grinding Spindle Speed: | 2130rpm |
| X-axis Min. Feed Unit: | 0.001mm | Z-axis Min. Feed Unit: | 0.001mm |
| Port: | China Port | ||
Product Description
Product Description

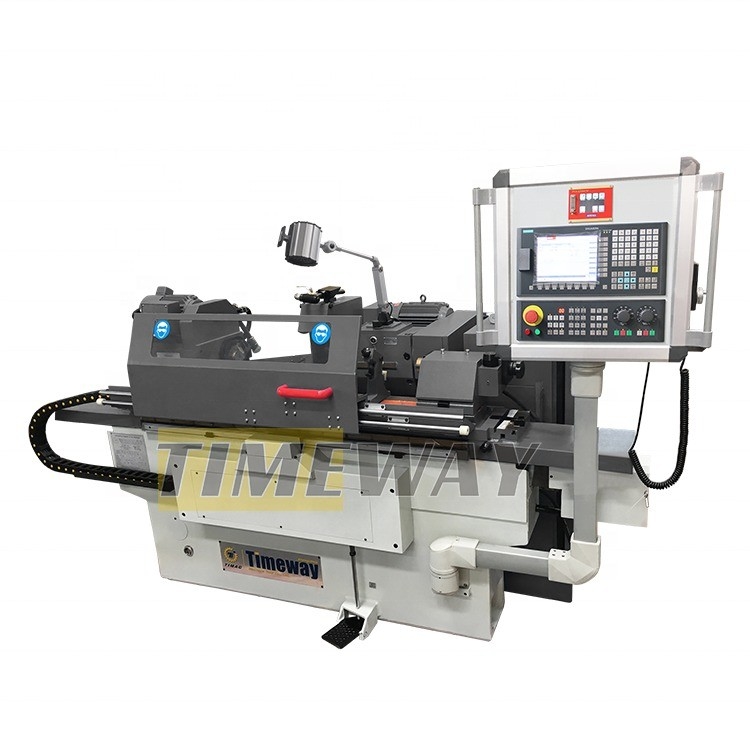

Cylindrical Grinder GK-200H

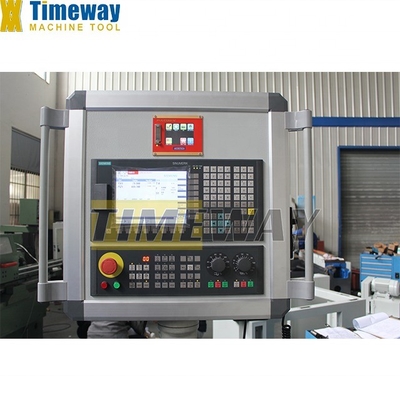

*The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
*Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
*By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
*This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
*CNC control system with the function of wheel dressing and compensation automatically.
Specification
SPECIFICATION | UNIT | GK-200H | UGK-200H |
Grinding Diameter(Outer) | mm | 8-200 | 8-200 |
Grinding Diameter(Inner) | mm | - | 13-100 |
Grinding Length | mm | 500/800 | 500/800 |
Max. Length of Workpiece | mm | 550/850 | 550/850 |
Loading Capacity | kg | 50 | 50 |
Center Height | mm | 135 | 135 |
Grinding Wheel Size | mm | 400*50*203 | 400*50*203 |
Grinding Spindle Speed | rpm | 2130 | 2130 |
X-axis min. feed unit | mm | 0.001 | 0.001 |
Z-axis min. feed unit | mm | 0.001 | 0.001 |
Roundness | um | 1.5 | 1.5 |
Roughness | um | 0.32 | 0.32 |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.

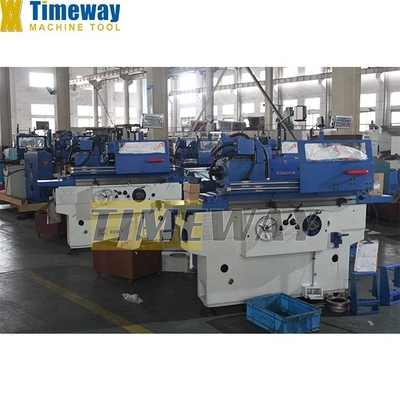

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
