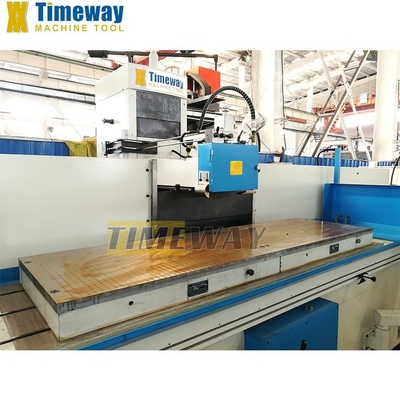

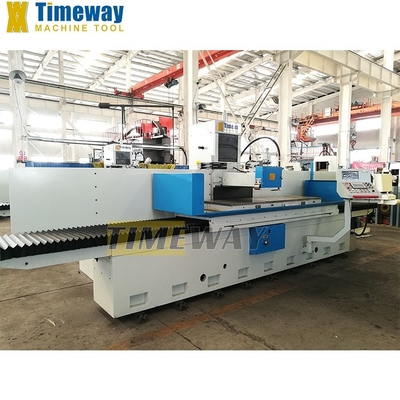

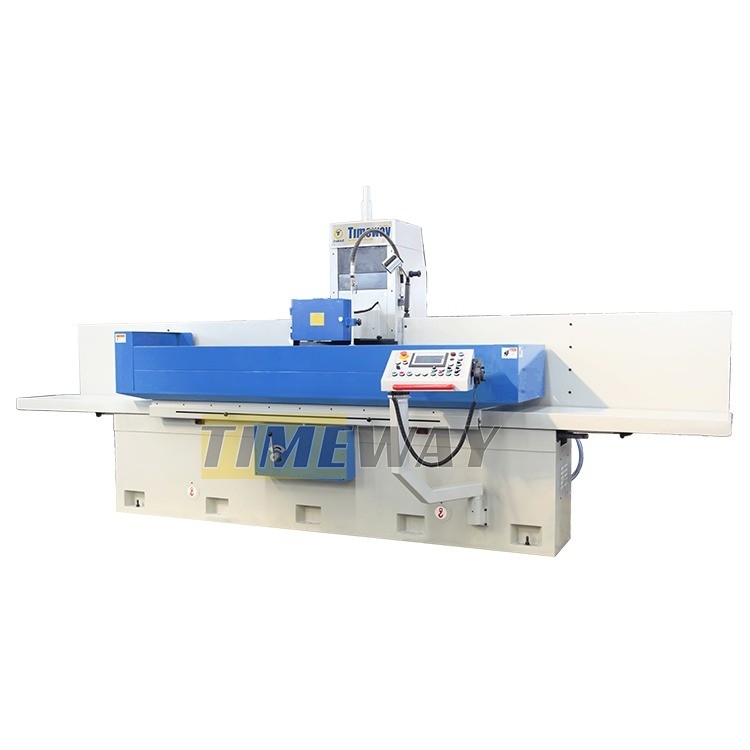

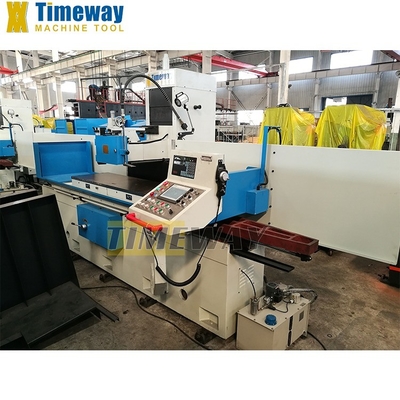

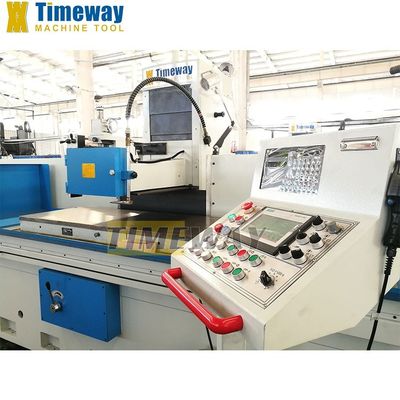

SG Series Conventional Surface Grinding Machine Worktable Size 630*1600mm Weight 7000KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1600 | Wheel Size(mm): | 355 |
| Surface Roughness(μm): | 0.02 μm | Table Size(mm): | 630*1600 |
| Table Travel (X) (mm): | 630 | Table Travel (Y) (mm): | 1600 |
| Voltage: | 220V/380V 50Hz | Dimension(L*W*H): | 5100*2300*2500 |
| Weight (KG): | 7000 | Power (kW): | 7.5 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Showroom Location: | South Africa, Russia, Colombia, Brazil, Saudi Arabia | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, PLC |
| Applicable Industries: | Manufacturing Plant, Construction Works , Printing Shops | Product Name: | Surface Grinder Grinding Machine |
| Machine Type: | Suface Grinding Machine | Model: | SG-60160FR |
| Color: | Cutomized | Max. Grinding Length: | 1600mm |
| GRINDING WHEEL SIZE: | 355*(20-50)*127mm | Motor: | 7.5kw |
| Distance Spindle Centre To Table: | 600mm | Worktable Size: | 630*1600mm |
| After-sales Service: | 1 Year | ||
Product Description
Products Description
* Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable power for precision grinding.
* With auto. center lubrication unit.
* With auto. center lubrication unit.
* Very easy to set auto ground program include rough, finish, and spark-out stroke.
* Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing.
* The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
* MPG is equipped for Y&Z axis(spindle elevating and cross feed), the operating position is free, it is so easy to control the machine.

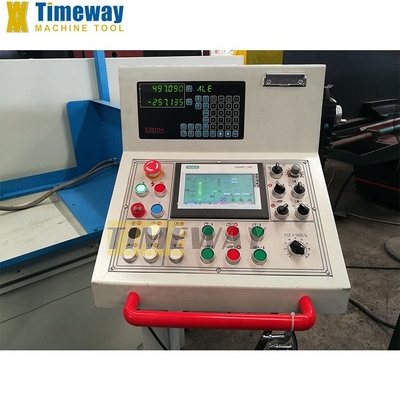

* The machine is standard equipped with SIEMENS 7" LCD-TFT colourful touchable screen. Built in program of our engineers' genius philosophy makes the operation very simple and convenient for the operators.
* The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.
* Well designed external hydraulic unit, with high power oil pump and precision elec-magnetic valve set, stand equipped with cooling fan. The whole system supply great smoothly power for fine ground.
Specification | Unit | SG-60125FR | SG-60160FR | SG-60220FR |
Table size | mm | 630x1250 | 630x1600 | 630x2200 |
Grinding area | mm | 600x1250 | 600x1600 | 600x2200 |
Distance from spindle to table | mm | 600 | 600 | 600 |
Electro magnetic chuck size (pcs.) | mm | 600x1000x1 | 600x800x2 | 600x1000x2 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Cross intermittent feed rate | mm/str | 0-30 | 0-30 | 0-30 |
Cross continuous feed speed | mm/min | 0-600 | 0-600 | 0-600 |
Cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Vertical intermittent feed rate | mm/str | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 |
Vertical continuous feed speed | mm/min | 0-300 | 0-300 | 0-300 |
Vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Grinding wheel size | mm | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 |
Main motor power | kw | 7.5 | 7.5 | 11 |
Package dimensions (LxWxH) | mm | 4340x2300x2500 | 5100x2300x2500 | 6580x2300x2500 |
Machine weight | kg | 6500 | 7000 | 8000 |
-PLC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |
