*SG-NC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
*Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle cross movement (Y-axis) and wheel head elevating movement (Z-axis) are driven by AC servo motor, worktable longitudinal movement (X-axis) is driven by hydraulic.
*SG-NC: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
*Closed guard with opening door, make the machine tool only looks well but also improve level of protection.
 |
NC Automatic Column Moving Type Surface Grinding Machines with 800mm Table Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 800 | Wheel Size(mm): | 350 |
| Surface Roughness(μm): | 0.02 μm | Table Size(mm): | 400*800mm |
| Table Travel (X) (mm): | 400 | Table Travel (Y) (mm): | 800 |
| Dimension(L*W*H): | 360*240*190mm | Weight (KG): | 3400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Showroom Location: | Kenya, Russia, Colombia, Uzbekistan, Brazil |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear, PLC | Applicable Industries: | Manufacturing Plant, Printing Shops, Machinery Repair Shops |
| Product Name: | NC Surface Grinder | Machine Type: | Nc Surface Grinder Machine |
| Model: | SG-4080NC | Color: | Cutomized |
| Max. Grinding Length: | 800mm | Grinding Wheel: | 350*40*127mm |
| SPINDLE SPEED: | 1450RPM/1750RPM | Worktable Size: | 400*800mm |
| After-sales Service: | 1 Year | Distance From Spindle To Table: | 580mm |
| Port: | China Port | ||
Product Description
Products Description

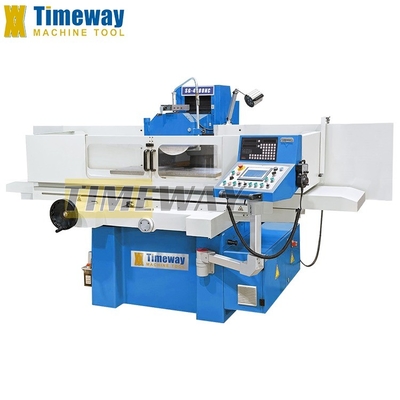

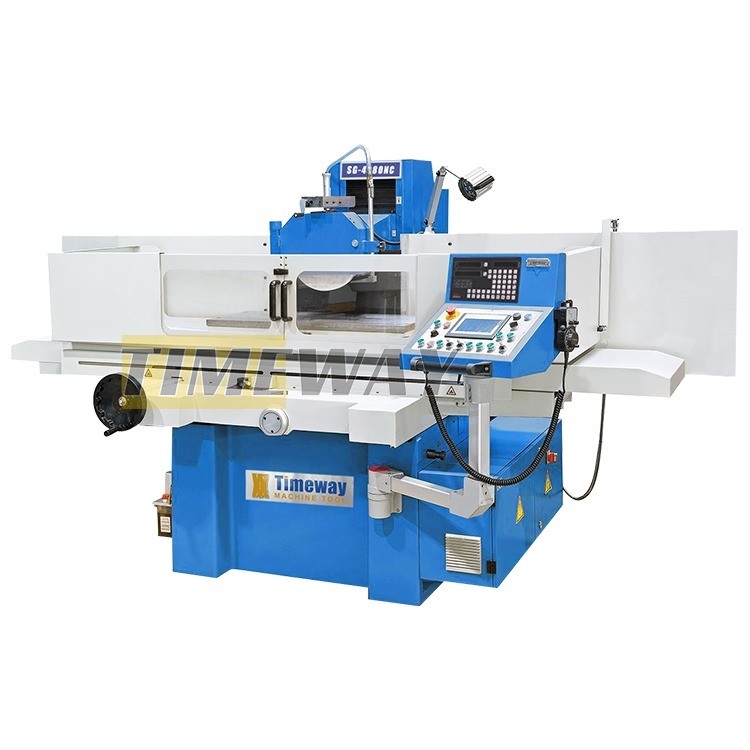

Saddle Moving Type Surface Grinder SG-NC
Features:
Specification
Specification | Unit | SG-30100NC | SG-4080NC | SG-40100NC |
Table size | mm | 305x1020 | 406x813 | 406x1020 |
Electro magnetic chuck size | mm | 300x1000 | 400x800 | 400x1000 |
Distance from spindle to table | mm | 580 | 580 | 580 |
Table cross travel | mm | 340 | 450 | 450 |
Table longitudinal travel | mm | 1130 | 910 | 1130 |
Loading capacity (include chuck) | kg | 400 | 500 | 600 |
Longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Table cross rapid feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Table cross micro feed rate | mm/gra | 0.005 | 0.005 | 0.005 |
Wheelhead vertical rapid feed speed | mm/min | 0.1-500 | 0.1-500 | 0.1-500 |
Wheelhead vertical micro feed rate | mm/gra | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 | 1450/1750 | 1450/1750 |
Grinding wheel size | mm | 350x40x127 | 350x40x127 | 350x40x127 |
Main motor power | kw | 4 | 4 | 4 |
Machine dimensions (LxWxH) | cm | 440x220x190 | 360x240x190 | 440x240x190 |
Package dimensions (LxWxH) | cm | 295x222x221 | 285x227x221 | 295x227x221 |
Machine weight | kg | 3200 | 3400 | 3700 |
Accessories
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
Packaging & Shipping
These pictures are our packaging diagrams for your reference. In order to ensure the integrity of the goods you receive, we pack them tightly and in wooden boxes.
Company Video
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
