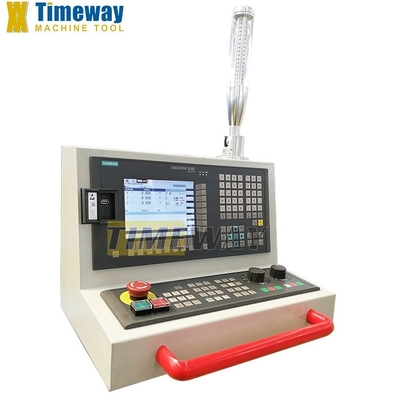

2-axis(Y/Z) or 3-axis(X/Y/Z) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS,FANUC controller are recommend.
 |

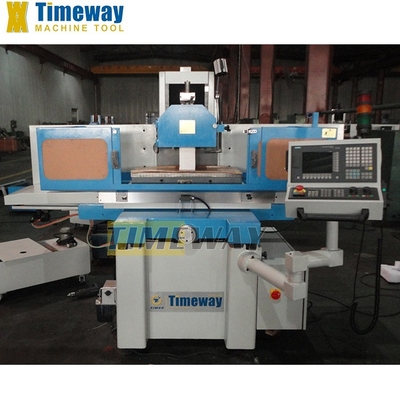

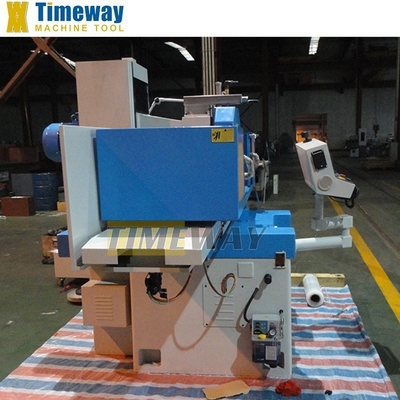

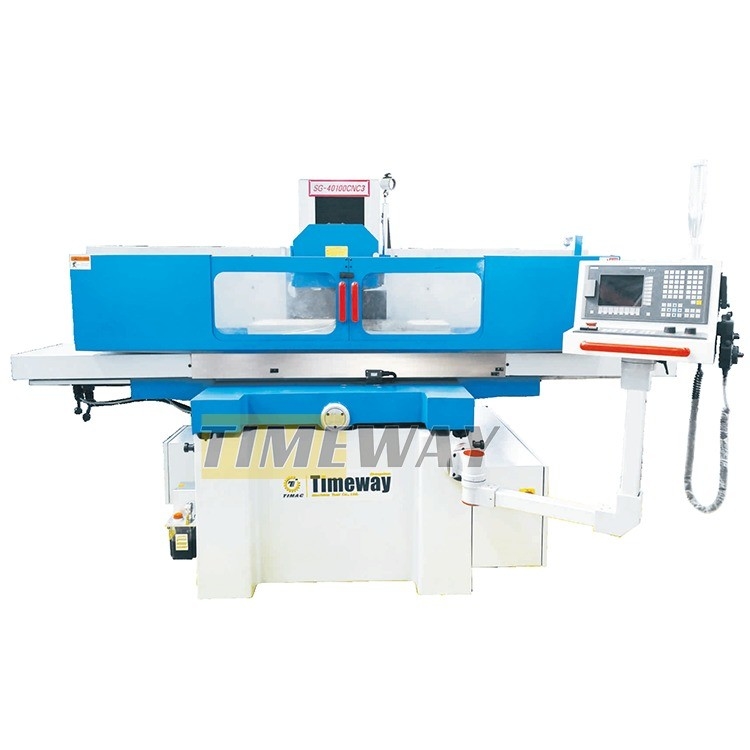

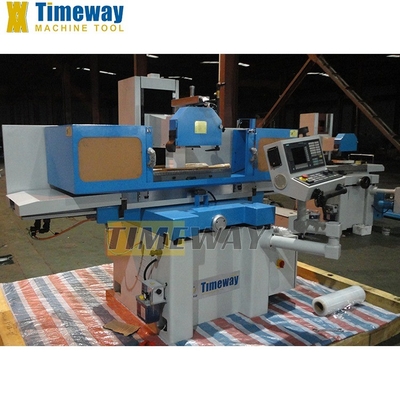

Precision CNC Surface Grinder with 1000mm Grinding Length High Precision and Efficiency
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Wheel Size(mm): | 350 |
| Surface Roughness(μm): | 0.02 μm | Table Size(mm): | 400*1000 |
| Table Travel (X) (mm): | 400 | Table Travel (Y) (mm): | 1000 |
| Voltage: | 220V/380V 50Hz | Dimension(L*W*H): | 3750*2250*2250mm |
| Weight (KG): | 4400 | Power (kW): | 4 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Showroom Location: | Argentina, Australia, Russia, Colombia, Brazil | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, PLC |
| Applicable Industries: | Manufacturing Plant, Garment Shops, Printing Shops, Machinery Repair Shops | Product Name: | CNC Surface Grinding Machine |
| Machine Type: | Cnc Surface Grinder Machine | Color: | Cutomized |
| Model: | SG-40100CNC2 | Motor: | 4KW |
| Max. Grinding Length: | 1000mm | Worktable Size: | 400*1600mm |
| GRINDING WHEEL SIZE: | 350*40*127mm | Table Max.table Load Capacity: | 600 |
| After-sales Service Provided: | 1 Year | Port: | China Port |
Product Description
Products Description
* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
Specification | Unit | SG-4080CNC2 | SG-40100CNC2 | |||
SG-4080CNC3 | SG-40100CNC3 | |||||
Table size(W×L) | mm | 406×813 | 406×1020 | |||
Max. longitudinal travel | mm | 910 | 1130 | |||
Max. cross travel | mm | 450 | 450 | |||
Max.distance from spindle center to table surface | mm | 580 | 580 | |||
Electro magnetic chuck size | mm | 400×800 | 400×1000 | |||
Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |||
Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||||
Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |||
Size(OD×W×ID) | mm | 350×40×127 | ||||
Spindle motor | kw | 5.5 | ||||
Hydraulic motor | kw | 2.2 (CNC2 model) | ||||
Cooling pump motor | kw | 0.125 | ||||
Parellism of working surface to mounting base | mm | 300:0.005 | ||||
Roughness of working surface | µm | Ra0.63 | ||||
Max.loading capacity of table(include magnetic chuck) | kg | 500 | 600 | |||
Height of machine | mm | 1890 | ||||
Floor space(L×W) | mm | 3600×2400 | 4400×2400 | |||
Gross weight | kg | 3800 | 4300 | |||
Package dimensions(L×W×H) | mm | 2850x2270x2180 | 2950x2270x2150 | |||

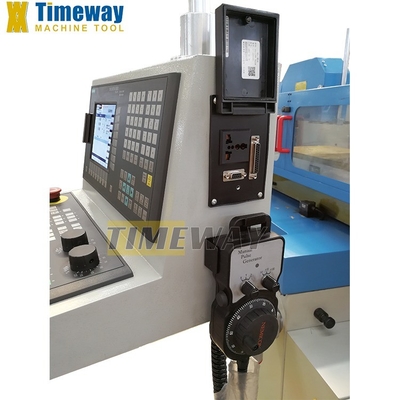

· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
Company Video
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
