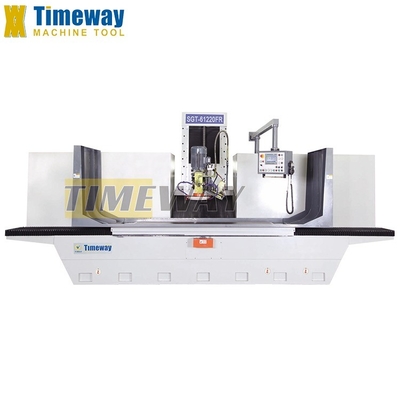

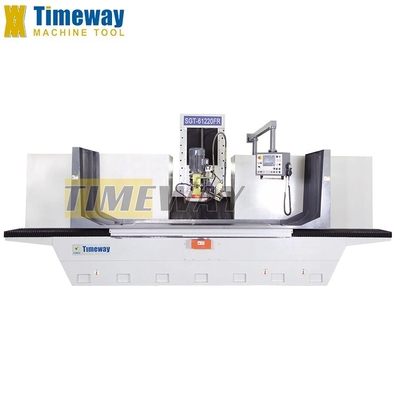

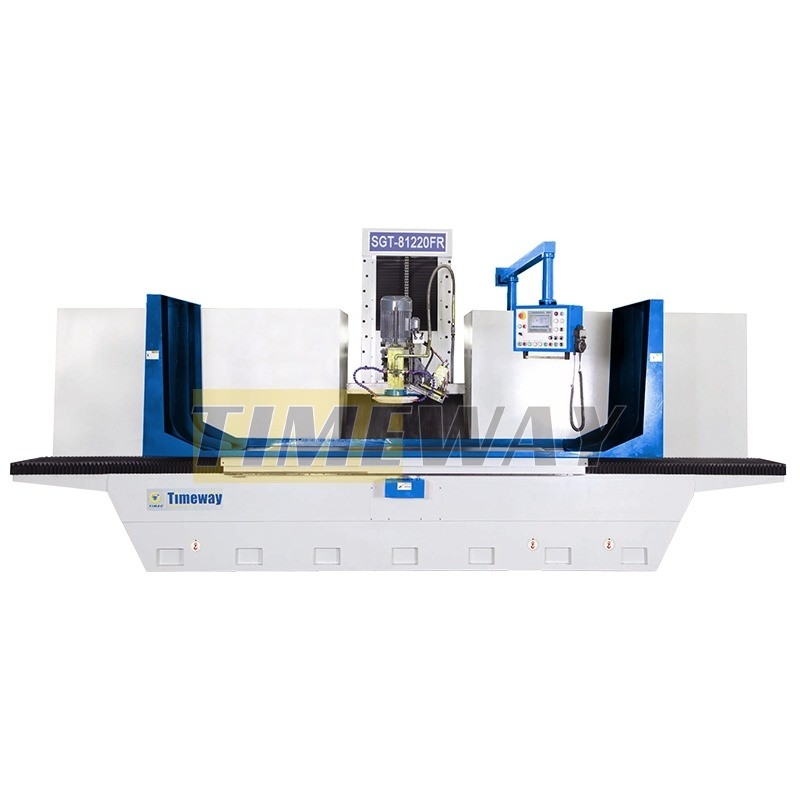

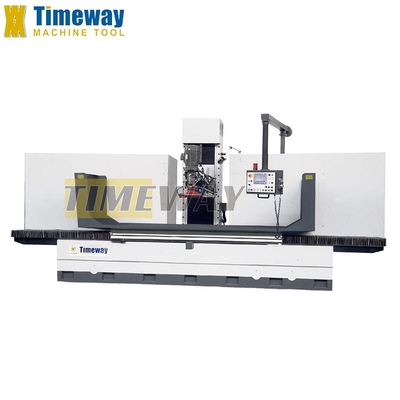

5.5kw Motor PLC Control Surface Grinding Machine for Precise and Versatile Grinding Need
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 2200 | Surface Roughness(μm): | 0.02 μm |
| Table Size(mm): | 810*2200 | Table Travel (X) (mm): | 810 |
| Table Travel (Y) (mm): | 2200 | Voltage: | 220V/380V 50Hz |
| Dimension(L*W*H): | 6000*3500*2950 | Weight (KG): | 12000 |
| Power (kW): | 5.5 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Showroom Location: | Australia, Turkey, Colombia, Brazil, Peru, Saudi Arabia |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, PLC | Applicable Industries: | Manufacturing Plant, Garment Shops, Construction Works , Printing Shops, Machinery Repair Shops |
| Product Name: | Surface Grinder Grinding Machine | Machine Type: | Suface Grinding Machine |
| Model: | SGT-81220FR | Color: | Cutomized |
| Max. Grinding Length: | 2200mm | Working Table Size: | 810*2200mm |
| Motor: | 5.5kw | GRINDING WHEEL SIZE: | Customerized |
| Table Max.table Load Capacity: | 2300kg | Machine Weight: | 12000kg |
Product Description
Products Description
PLC High quality SG Series
CNC Column Moving Surface Grinder Grinding Machine
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.
* The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
* The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.
designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
Specification
Specification | Unit | SGT-81160FR | SGT-81220FR |
Table size | mm | 810x1600 | 810x2200 |
Grinding area | mm | 810x1600 | 810x2200 |
Grinding height | mm | 790 (heighten) | 790 (heighten) |
Wheelhead swivel angle | ° | ±5° / ±30° | ±5° / ±30° |
Loading capacity (include chuck) | kg | 1900 | 2300 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 |
Column cross feed rate (MPG) | mm/gra | 0.005 | 0.005 |
Column cross continuous feed speed | mm/min | 50-2000 | 50-2000 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 |
Spindle speed | rpm | 1450 | 1450 |
Grinding wheel size | mm | According to the tech request | According to the tech request |
Main motor power | kw | 5.5 | 5.5 |
Total power | kw | 17 | 17 |
Machine dimensions (LxWxH) | mm | 4700x3500x2950 | 6000x3500x2950 |
Machine weight | kg | 10000 | 12000 |
Accessories
- PLC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z-axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box - Operation manual(English edition) | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2-axis digital readout - Extra wheel flange |
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
