Precision Cylindrical Grinder for CNC Grinding Machine Grinding Diameter Inner 13-100mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 850 | Max. Length Of Workpiece (mm): | 850 |
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400*50*203 | Wheel Speed (rpm): | 2130 |
| Roundness(mm): | 0.0015 | Surface Roughness(μm): | 0.32 |
| Year: | 2022 | Voltage: | 380V |
| Dimension(L*W*H): | 2600*2000*2220 | Weight (KG): | 2500 |
| Power (kW): | 10.825 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Showroom Location: | Indonesia, Romania |
| Applicable Industries: | Manufacturing Plant, Retail | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Condition: | New | CNC Or Not: | Normal |
| Grinding Diameter(Outer): | 8-200mm | Grinding Diameter(Inner): | 13-100mm |
| Grinding Length: | 500/800mm | Max. Length Of Workpiece: | 550/850mm |
| Loading Capacity: | 50kg | Center Height: | 135mm |
| Grinding Wheel Size: | 400*50*203mm | Grinding Spindle Speed: | 2130rpm |
| X-axis Min. Feed Unit: | 0.001mm | Z-axis Min. Feed Unit: | 0.001 |
| Port: | China Port | ||
Product Description
Product Description

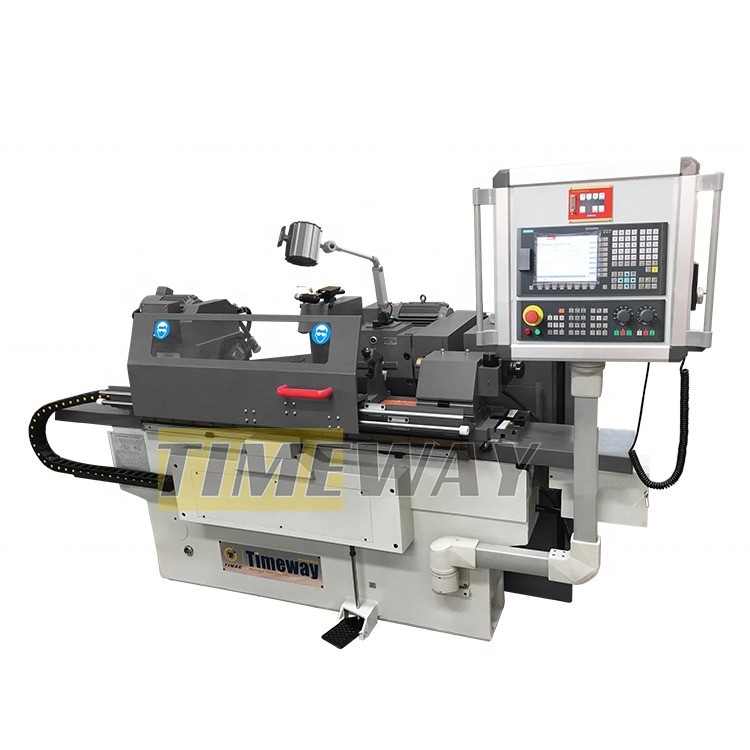

Cylindrical Grinder

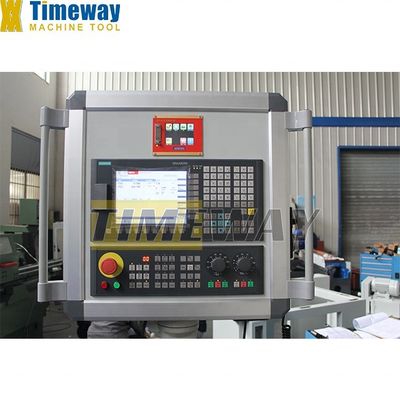

* The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically.
* Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
* By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
* This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically.
Specification
SPECIFICATION | UNIT | GK-200H | UGK-200H |
Grinding Diameter(Outer) | mm | 8-200 | 8-200 |
Grinding Diameter(Inner) | mm | - | 13-100 |
Grinding Length | mm | 500/800 | 500/800 |
Max. Length of Workpiece | mm | 550/850 | 550/850 |
Loading Capacity | kg | 50 | 50 |
Center Height | mm | 135 | 135 |
Grinding Wheel Size | mm | 400*50*203 | 400*50*203 |
Grinding Spindle Speed | rpm | 2130 | 2130 |
X-axis min. feed unit | mm | 0.001 | 0.001 |
Z-axis min. feed unit | mm | 0.001 | 0.001 |
Roundness | um | 1.5 | 1.5 |
Roughness | um | 0.32 | 0.32 |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
