900mm Wheel Size High Productivity Cylindrical Grinding Machine for Versatile Grinding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 800 | Grinding Length(mm): | 4000 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 4000 | Max. Weight Of Workpiece(kg): | 3000 |
| Center Height (mm): | 500 | Wheel Size(mm): | 900 |
| Wheel Speed (rpm): | 3500 | Roundness(mm): | 3 |
| Cylindricity (mm): | 3 | Surface Roughness(μm): | 0.32 |
| Year: | 2022 | Voltage: | 220 V/380 V |
| Dimension(L*W*H): | 1100x240x230mm | Weight (KG): | 2300 |
| Power (kW): | 22 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Showroom Location: | Mexico, Morocco, Russia |
| Applicable Industries: | Energy & Mining, Construction Works | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox |
| Condition: | New | CNC Or Not: | Normal |
| Distance Between Centers: | 2000/3000/4000/5000mm | Center Height: | 500mm |
| Dia. Ground (O.D): | 50-800mm | Grinding Length (O.D): | 2000/3000/4000/5000mm |
| Loading Capacity: | 3000kg | Workhead Spindle Taper: | Metric 80 |
| Workhead Spindle Speed: | 5-50rpm (stepless) | ||
Product Description
Product Description

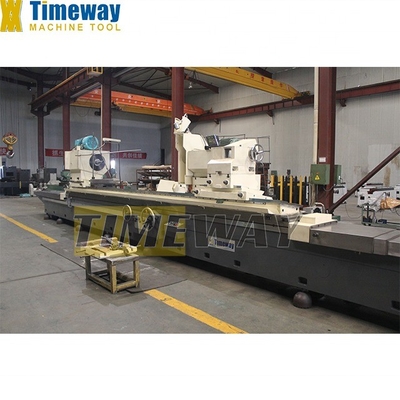

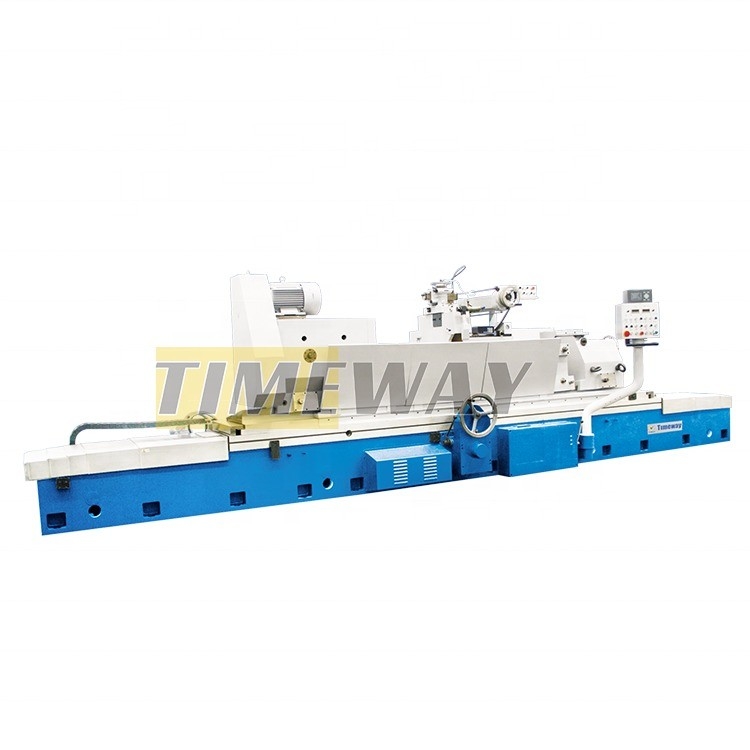

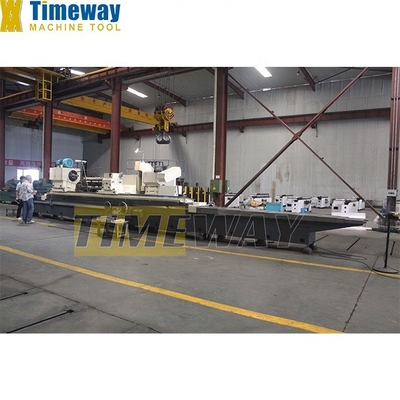

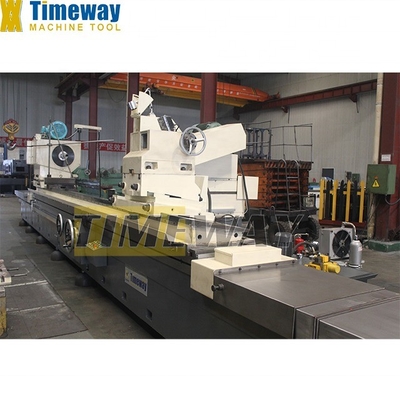

Cylindrical Grinder G-800
* G-800 cylindrical grinder is suitable for grinding outer surface of cylinder and taper;
* The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
* The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* The workhead adopts inverter motor to realize stepless speed adjustment.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be assembled on the worktable surface of on the tailstock.
* The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
* The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* The workhead adopts inverter motor to realize stepless speed adjustment.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be assembled on the worktable surface of on the tailstock.
Specification
Specification | Unit | G-800 |
Distance between centers | mm | 3000/4000/5000 |
Center height | mm | 500 |
Dia. ground (O.D) | mm | 50-800 |
Dia. ground (I.D) | mm | - |
Grinding length (O.D) | mm | 3000/4000/5000 |
Grinding length (I.D) | mm | - |
Loading capacity | kg | 3000 |
Workhead swivel angle | ° | - |
Workhead spindle taper | - | Metric 80 |
Workhead spindle speed | rpm | 5-50 (stepless) |
Wheelhead feed of handwheel per rev. (rough/fine) | mm/rev | 4/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm/gra | 0.02/0.0025 |
External grinding wheel size | mm | 900x75x305 |
Max. peripheral speed of grinding wheel | m/s | 35 |
Internal grinding spindle speed | rpm | - |
Internal grinding wheel size | mm | - |
Table feed of handwheel per rev. | mm | 5 |
Table swivel angle (CW) | ° | 1°/1°/1° |
Table swivel angle (CCW) | ° | 3°/2°/1.5° |
Table longitudinal feed speed | m/min | 0.1-2.5 |
Tailstock quill taper | - | Metric 80 |
Tailstock quill travel | mm | 70 |
External grinding motor power | kw | 22 |
Internal grinding motor power | kw | - |
Workhead motor power | kw | 15 |
Gross weight | tons | 30/36/41 |
Packing size (LxWxH) | cm | 890/1100/1500x260x230 |
Accessories
Standard accessories:
· Measuring bridge plate
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
Optional accessories:
· Balancing stand
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
