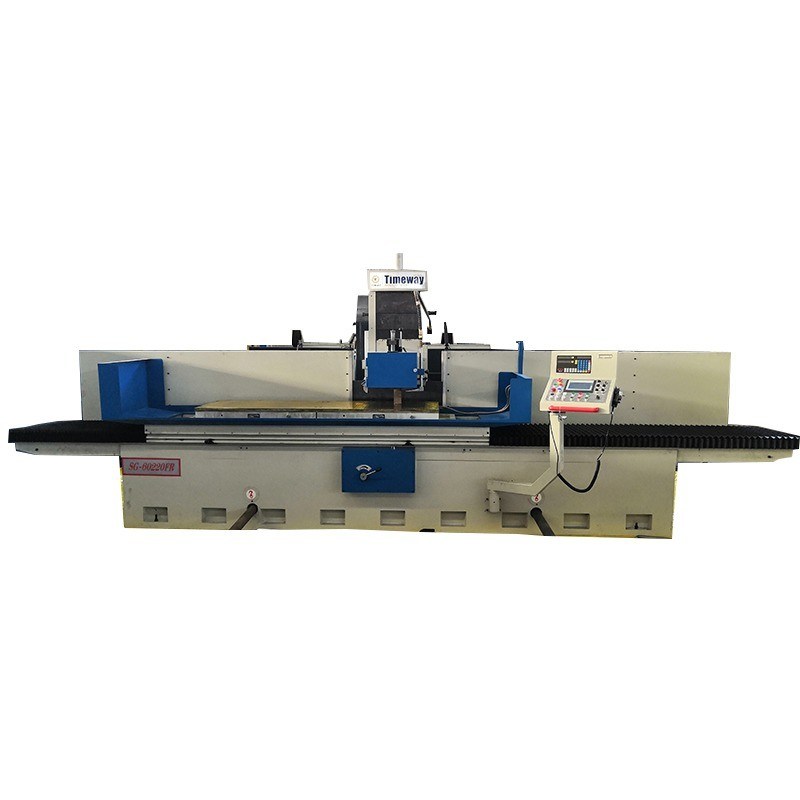

QIANDAO SG-60220FR Automatic Flat Grinding Machine with High Precision Hydraulic
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 2200 | Wheel Size(mm): | 400 |
| Surface Roughness(μm): | 0.32 μm | Table Size(mm): | 630X2200 |
| Table Travel (X) (mm): | 630 | Table Travel (Y) (mm): | 22001000 |
| Year: | NEW | Voltage: | 220v/380v |
| Dimension(L*W*H): | 6580x2300x2500 | Weight (KG): | 8000 |
| Power (kW): | 7.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Viet Nam, Russia, Italy, Brazil, Ukraine |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Gearbox, Pump | Applicable Industries: | Manufacturing Plant, Construction Works |
| Type: | SURFACE GRINDER | Model: | SG-60220FR |
| Color: | CUSTOMROAED | Precision: | High |
| Port: | China Port | ||
Product Description
Products Description
Column Moving Type Surface Grinder
* It is designed with cantilever moving type, reasonable structure and nice-looking.

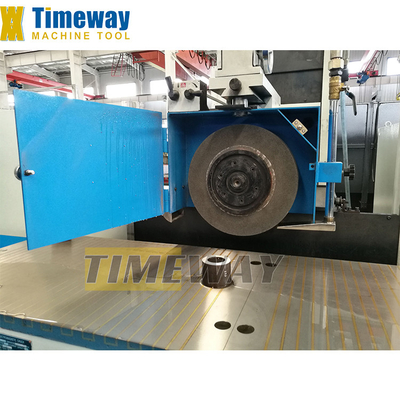

* It is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding side surface of workpiece by grinding wheel side-face. The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures .
* Wheelhead is equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
* The distance between the oil recovery point and the oil entry point in the oil pool is the longest, and the hydraulic oil iscirculated to balance the oil temperature distribution and reduce the thermal deformation of the machine.
* Beautiful shape, good rigidity, stable and reliable performance and easy to maintenance.
* It is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding side surface of workpiece by grinding wheel side-face. The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures .
* Wheelhead is equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
* The distance between the oil recovery point and the oil entry point in the oil pool is the longest, and the hydraulic oil iscirculated to balance the oil temperature distribution and reduce the thermal deformation of the machine.
* Beautiful shape, good rigidity, stable and reliable performance and easy to maintenance.
Specifications | Unit | SG-60160FR | SG-60220FR |
Table size(WxL) | mm | 630x1600 | 630x2200 |
Max. grinding size(WxL) | mm | 600x1600 | 600x2200 |
Max. distance from table to spindle center | mm | 600 | 600 |
Magnetic chuck size (pcs.) | mm | 600x800x2 | 600x1000x2 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 |
Table cross motion | |||
Auto. intermittent feed rate | mm/t | 0-30 | 0-30 |
Rapid feed speed | mm/min | 0-600 | 0-600 |
Feed of MPG | mm/gra | 0.005 | 0.005 |
Wheel-head vertical motion | |||
Auto. feed rate | mm/t | 0.005/0.01/0.02/0.03/0.04 | 0.005/0.01/0.02/0.03/0.04 |
Rapid feed speed | mm/min | 0-300 | 0-300 |
Feed of MPG | mm/gra | 0.005 | 0.005 |
Grinding wheel size | mm | Φ355x(20-50)xΦ127 | Φ355x(20-50)xΦ127 |
Main motor power | kw | 7.5 | 11 |
Package dimensions(LxWxH) | mm | 5100x2300x2500 | 6580x2300x2500 |
Machine weight | kg | 7000 | 8000 |
Grinding wheel Wheel balancing arbor Wheel extractor Coolant system Work lamp Wheel flange Wheel dresser Leveling wedge and bolt Tools and tool box | Diamond pen Electrical magnetic chuck Wheel balancing stand Paper fliter Magnetic separator Demagnetizer |
