High Precision Cylindrical Grinder with 18.5kW Power and 1500kg Max. Workpiece Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 630 | Grinding Diameter(Inner)(mm): | 250 |
|---|---|---|---|
| Grinding Length(mm): | 5000 | Max. Length Of Workpiece (mm): | 5000 |
| Max. Weight Of Workpiece(kg): | 1500 | Center Height (mm): | 350 |
| Wheel Size(mm): | 750*75*305mm | Wheel Speed (rpm): | 100 |
| Year: | 2023 | Voltage: | 220/380v |
| Dimension(L*W*H): | 1500*242*226mm | Weight (KG): | 1500 |
| Power (kW): | 18.5 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Showroom Location: | Mexico, Morocco, Russia |
| Applicable Industries: | Manufacturing Plant, Garment Shops, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Pump |
| Condition: | New | CNC Or Not: | Normal |
| Distance Between Centers: | 2000/3000/4000/5000 | Center Height: | 350mm |
| Dia. Ground (O.D): | 30-630mm | Max. Length Ground (O.D): | 3000/4000mm |
| Max. Weight Of Workpiece: | 1500kg | Center Taper: | MT6 |
| Spindle Speed (stepless): | 10-100rpm | Wheel Spindle Speed: | 870rpm |
| Wheelhead Rapid Travel: | 100mm | Max. Travel: | 438mm |
| Port: | China Port | ||
Product Description
Product Description

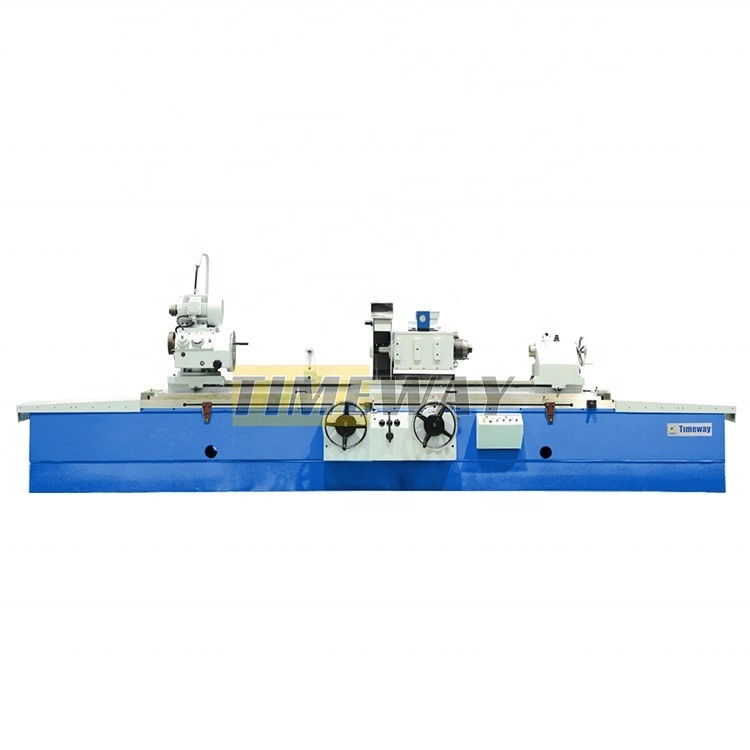

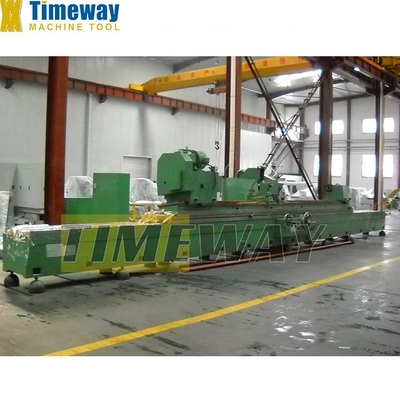

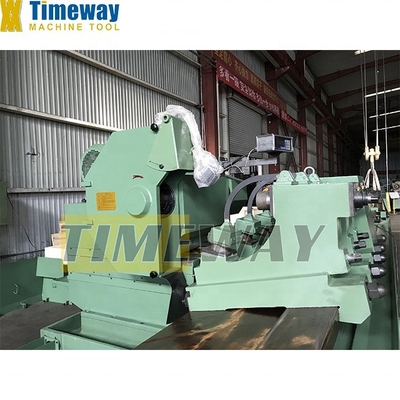

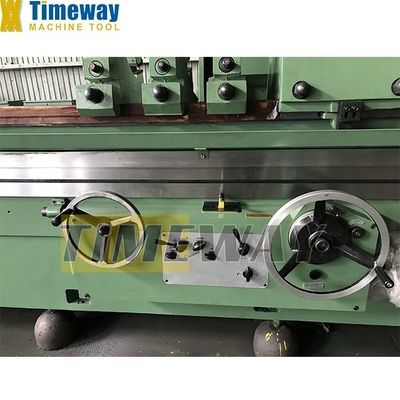

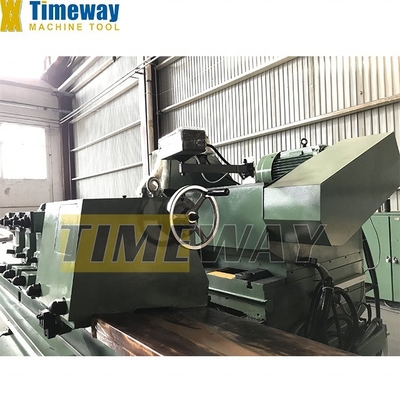

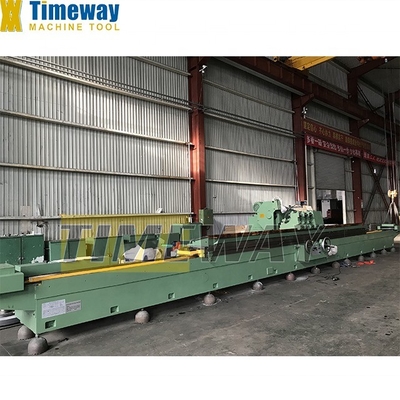

Cylindrical Grinder G-630
Features:
* G-630 cylindrical grinder is suitable for grinding outer surface of cylinder and taper;
* The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
* The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* The workhead adopts inverter motor to realize stepless speed adjustment.
* The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* The workhead adopts inverter motor to realize stepless speed adjustment.
Specification
Specifications | Unit | G-630 |
General capacity | ||
Distance between centers | mm | 2000/3000/4000/5000 |
Center height | mm | 350 |
Dia. Ground (O.D) | mm | 30-630 |
Max. length ground (O.D) | mm | 3000/4000 |
Max. weight of workpiece | kg | 1500 |
Workhead | ||
Center taper | - | MT6 |
Spindle speed (stepless) | rpm | 10-100 |
Wheelhead | ||
Wheel spindle speed | rpm | 870 |
Wheelhead rapid travel | mm | 100 |
Max. travel | mm | 438 |
Hand feed per.rev (rough/fine) | mm | 4/0.5 |
Hand feed per.gra (rough/fine) | mm | 0.02/0.0025 |
Wheel size (ODxWxID) | mm | 750x75x305 |
Peripheral velocity | m/s | 35 |
Table | ||
Hand feed per.rev | mm | 5 |
Max.swiveling angle of table (CW) | ° | 2°/2° /1°/1° |
Max.swiveling angle of table (CCW) | ° | 5°/3° /2°/1.5° |
Longitudinal speed range of table | m/min | 0.1-3 |
Tailstock | ||
Center taper | - | MT6 |
Quill travel | mm | 70 |
Others | ||
Wheelhead motor power | kw | 18.5 |
Workhead motor power | kw | 5.5 |
Gross weight | kg | 13.5/17.5 |
Packing dimensions (LxWxH) | cm | 785/1000x228x210 |
Accessories
Standard accessories:
· Measuring bridge plate
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
Optional accessories:
· Balancing stand
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
Packing & Delivery
These pictures are our packaging diagrams for your reference. In order to ensure the integrity of the goods you receive, we pack them tightly and in wooden boxes.
