UG-200 x 500 Universal Cylindrical Grinder with 500/750mm Distance between Centers
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 500 | Max. Length Of Workpiece (mm): | 500 |
| Max. Weight Of Workpiece(kg): | 100 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400 | Table Travel (X) (mm): | 500 |
| Table Travel (Y) (mm): | 205 | Surface Roughness(μm): | 0.08 |
| Year: | 2023 | Voltage: | As Per Customer's Request |
| Dimension(L*W*H): | 235x203x205cm | Weight (KG): | 3000 |
| Power (kW): | 1.1 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Showroom Location: | Mexico, Morocco, Russia |
| Applicable Industries: | Manufacturing Plant, Garment Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Pump |
| Condition: | New | CNC Or Not: | Normal |
| Distance Between Centers: | 500/750mm | Center Height: | 135mm |
| Dia. Ground (O.D): | 5-200mm | Dia. Ground (I.D): | 25-100mm |
| Grinding Length (O.D): | 500/750mm | Grinding Length (I.D): | 125mm |
| Loading Capacity: | 100kg | Workhead Swivel Angle: | +90° |
| Workhead Spindle Taper: | MT4 | Workhead Spindle Speed: | 25-380rpm (stepless) |
| Port: | China Port | ||
Product Description
Product Description

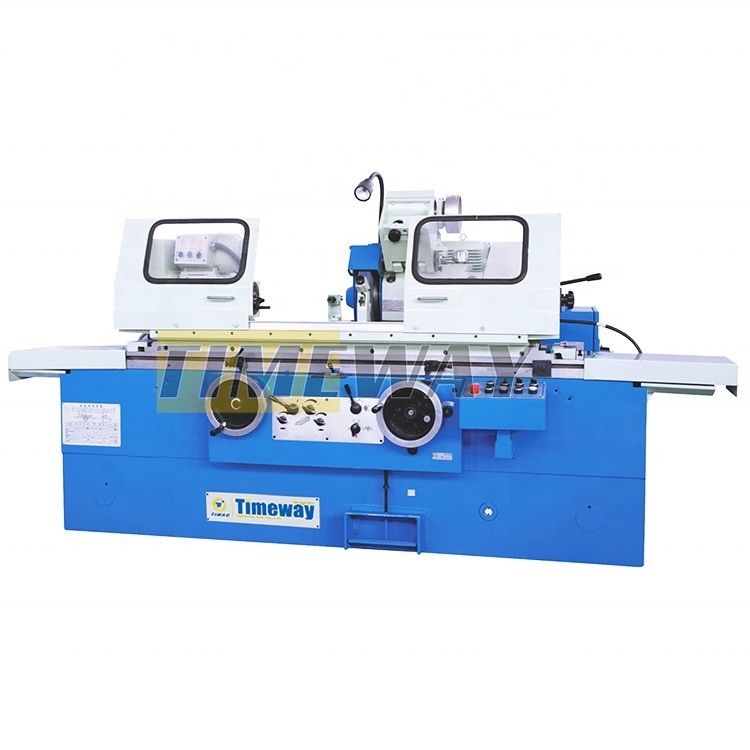

Universal Cylindrical Grinder UG-200 x 500
1.The workhead adopts inverter motor to realize stepless speed adjustment.

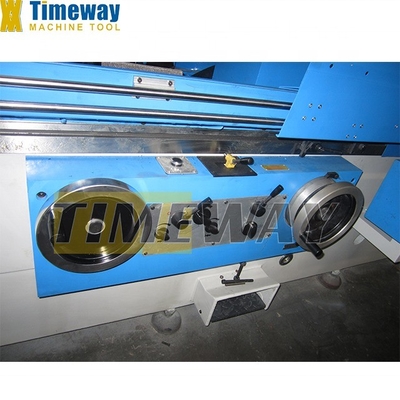

2.The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
3.The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
4.Wheelhead spindle is supported by bimetal shell bearing, which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
5.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.
2.The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
3.The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
4.Wheelhead spindle is supported by bimetal shell bearing, which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
5.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.
Specification
Specification | Unit | UG-200 | UG-320 | UG-400 |
Distance between centers | mm | 500/750 | 1000/1500/2000/3000 | 1000/1500 |
Center height | mm | 135 | 180 | 220 |
Dia. ground (O.D) | mm | 5-200 | 8-320 | 15-400 |
Dia. ground (I.D) | mm | 25-100 | 30-100 | 16-125 |
Grinding length (O.D) | mm | 500/750 | 1000/1500/2000/3000 | 1000/1500 |
Grinding length (I.D) | mm | 125 | 125 | 125 |
Loading capacity | kg | 100 | 150 | 150 |
Workhead swivel angle | ° | +90° | +90° | 90° |
Workhead spindle taper | - | MT4 | MT4 | MT4 |
Workhead spindle speed | rpm | 25-380 (stepless) | 25-220 (stepless) | 18/37/74/155 |
Wheelhead spindle speed | rpm | 1670 | 1670 | 1360 |
Wheelhead rapid feed travel | mm | 50 | 50 | 50 |
Wheelhead cross travel | mm | 205 | 246 | 310 |
Wheelhead swivel angle | ° | ±10° | ±30° | ±30° |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 | 2/0.5 |
Accessories
Standard accessories:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Levelling wedge,

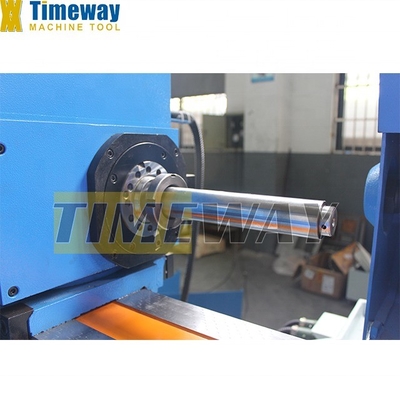

Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft (UG),
Internal grinding wheel (UG),
Full set tools,
Operation manual (English edition).
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Levelling wedge,
Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft (UG),
Internal grinding wheel (UG),
Full set tools,
Operation manual (English edition).
Optional accessories:
Balancing stand,
Magnetic separator,
Paper filter,
Center grinding attachment,
Close steady rest,
End wheel dresser,
Radius wheel dress,
DRO.
Magnetic separator,
Paper filter,
Center grinding attachment,
Close steady rest,
End wheel dresser,
Radius wheel dress,
DRO.
