High Precision Saddle Moving Type Surface Grinding Machine for Grinding Length of 580mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 580 | Wheel Size(mm): | 350 |
| Surface Roughness(μm): | 0.63 μm | Table Size(mm): | 406*1020 |
| Table Travel (X) (mm): | 1130 | Table Travel (Y) (mm): | 450 |
| Year: | 2023 | Voltage: | As Required |
| Dimension(L*W*H): | 375*225*225cm | Weight (KG): | 4400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | India, France, Japan, Spain |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine | Applicable Industries: | Manufacturing Plant, Construction Works |
| Product Name: | Surface Grinder Grinding Machine | Name: | CNC Surface Grinder |
| Keywords: | Precision Surface Grinder Machine | Machine Type: | Suface Grinding Machine |
| Color: | Cutomized | Precision: | High Precision |
| Distance From Table To Spindle Center: | 580 | Grinding Wheel: | 350*40*127 |
| Table Longitudinal Travel: | 1130 | Table Cross Travel: | 450 |
| Port: | China Port | ||
Product Description
Product Description

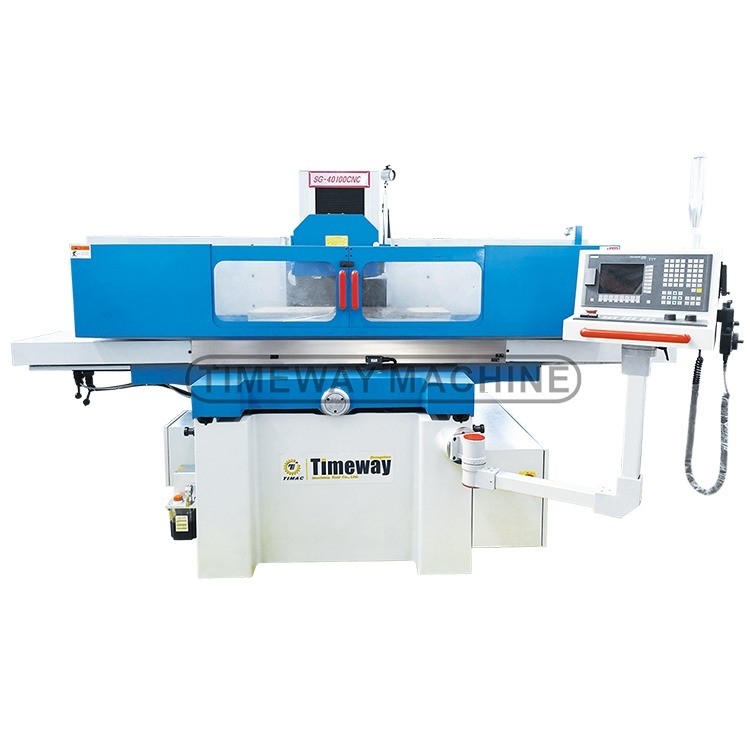

CNC Saddle Moving Type Surface Grinder
* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free,
lowvibration, and no noise.
*Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free,
lowvibration, and no noise.
Specification
Specification | unit | SG-4080CNC2 | SG-40100CNC2 | |||
SG-4080CNC3 | SG-40100CNC3 | |||||
Table size(W×L) | mm | 406×813 | 406×1020 | |||
Max. longitudinal travel | mm | 910 | 1130 | |||
Max. cross travel | mm | 450 | 450 | |||
Max.distance from spindle center to table surface | mm | 580 | 580 | |||
Electro magnetic chuck size | mm | 400×800 | 400×1000 | |||
Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |||
Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||||
Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |||
Size(OD×W×ID) | mm | 350×40×127 | ||||
Spindle motor | kw | 5.5 | ||||
Hydraulic motor | kw | 2.2 (CNC2 model) | ||||
Cooling pump motor | kw | 0.125 | ||||
Parellism of working surface to mounting base | mm | 300:0.005 | ||||
Roughness of working surface | µm | Ra0.63 | ||||
Max.loading capacity of table(include magnetic chuck) | kg | 500 | 600 | |||
Height of machine | mm | 1890 | ||||
Floor space(L×W) | mm | 3600×2400 | 4400×2400 | |||
Gross weight | kg | 3800 | 4300 | |||
Package dimensions(L×W×H) | mm | 2850x2270x2180 | 2950x2270x2150 | |||

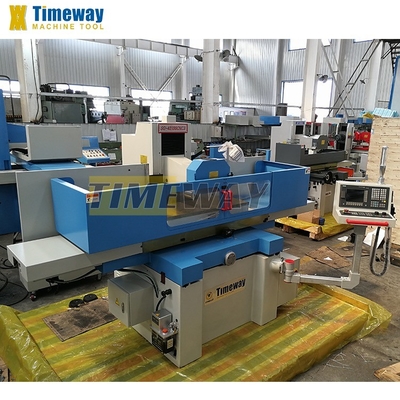

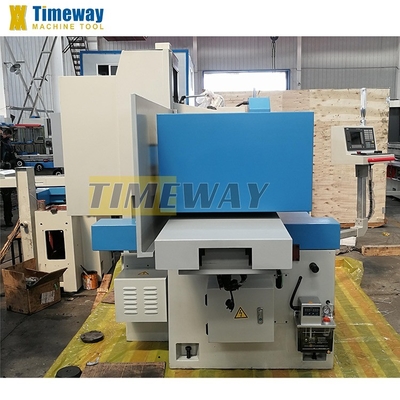

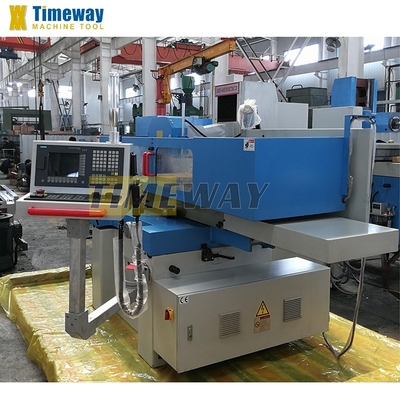

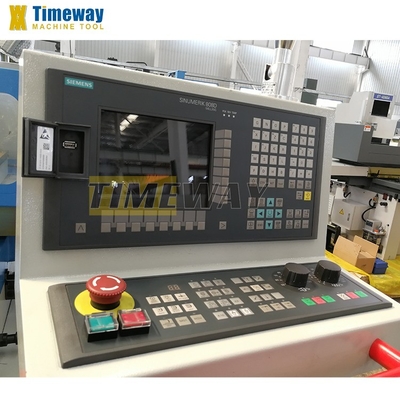

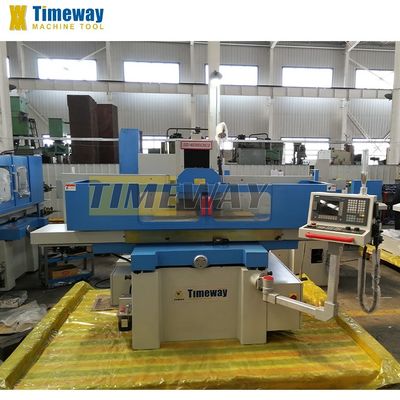

Detailed Images
