Precision Surface Grinder Machine SG-30100AH Saddle Moving Type 0.01 μm Surface Roughness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $17,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 580 | Surface Roughness(μm): | 0.01 μm |
| Table Size(mm): | 305x1020 | Table Travel (X) (mm): | 340 |
| Table Travel (Y) (mm): | 1130 | Year: | 2023 |
| Voltage: | 220/330V | Dimension(L*W*H): | 440x220x190 Cm |
| Weight (KG): | 3200 | Power (kW): | 4 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Indonesia, Nigeria, Germany, UAE, Mexico, France, Japan, Australia, Viet Nam, Kenya, Morocco, South Africa, Canada, Russia, Uzbekistan | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Retail, Food & Beverage Shops | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Online Support | Name: | Grinder Machine |
| Product Name: | Surface Finishing Polishing Grinding Machine | Usage: | Surface Polishing |
| Keywords: | Precision Surface Grinder Machine | Application: | Grind Rail Surface |
| Color: | White | Precision: | High Precision |
| Port: | China Port | ||
Product Description
Products Description

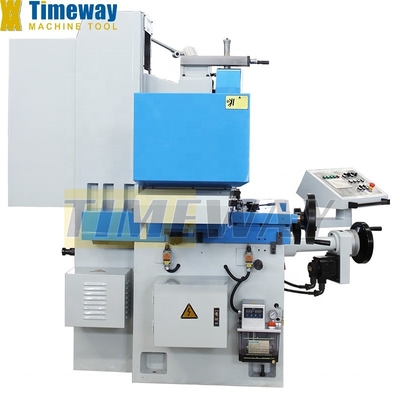

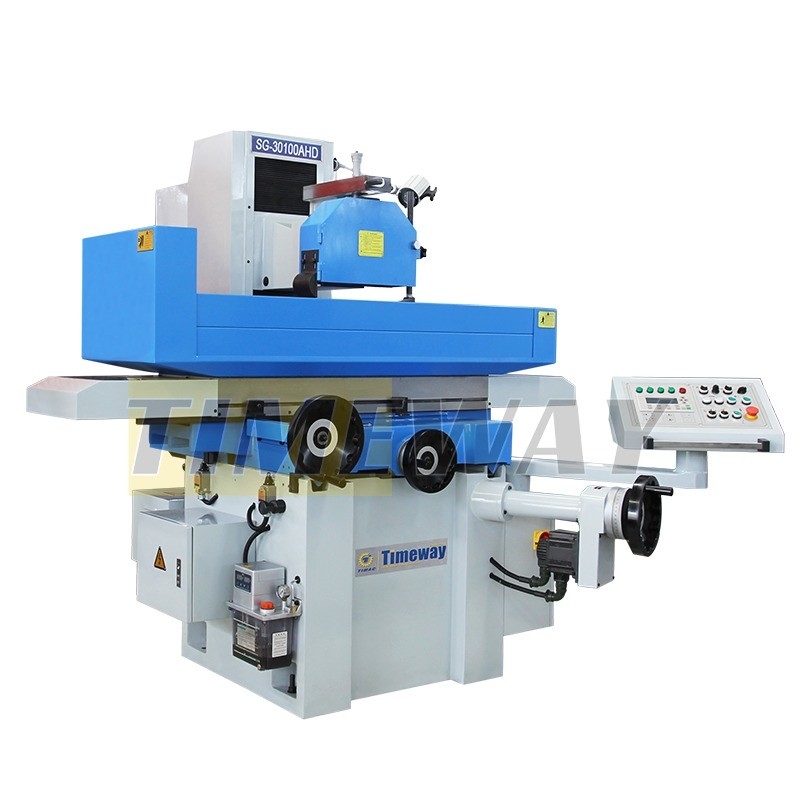

SG-30100AH
Saddle Moving Type Surface Grinder:
Specification | Unit | SG-30100AH SG-30100AHR SG-30100AHD |
Table size | mm | 305x1020 |
Electro magnetic chuck size | mm | 300x1000 |
Distance from spindle to table | mm | 580 |
Table cross travel | mm | 340 |
Table longitudinal travel | mm | 1130 |
Loading capacity (include chuck) | kg | 400 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 4 |
Machine dimensions (LxWxH) | cm | 440x220x190 |
Package dimensions (LxWxH) | cm | 295x222x221 |
Machine weight | kg | 3200 |
